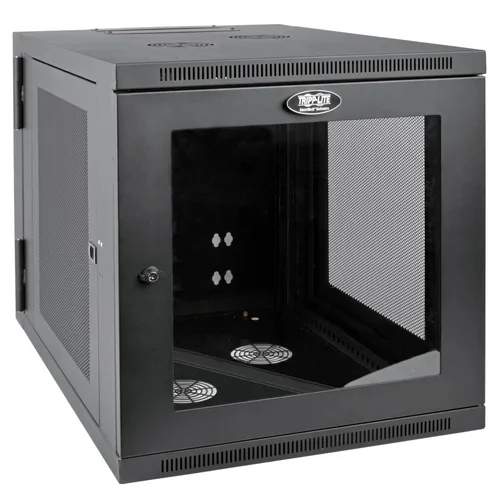

Tripp Lite SRW12US33G SmartRack 12U Server-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

The SRW12US33G SmartRack 12U Server-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing 19-inch rack equipment up to 32.5 inches in depth in areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lbs (113.4 kgs).

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

The SRW12US33G comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 32.5 inches, such as 1U servers, UPS systems, battery packs and switches.

ON ORDER

SKU: SRW12US33G

Manufacturer: Eaton Eaton

RRP Price €818.57

Specifications

Features

Rack capacity
12U
Type
Wall mounted rack
Maximum weight capacity
113.4 kg
Product colour
Black

Weight & dimensions

Width
599.4 mm
Depth
850.9 mm
Height
637.5 mm
Inner width
42.5 m
Weight
42.9 kg
Mounting depth (max)
82.5 cm

Packaging data

Wall mounting kit
Yes
Manual
Yes
Package width
662.9 mm
Package depth
915.9 mm
Package height
767.1 mm
Package weight
53.5 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
662.9 mm
Master (outer) case length
915.9 mm
Master (outer) case height
767.1 mm
Master (outer) case gross weight
53.5 kg
Products per master (outer) case
1 pc(s)
