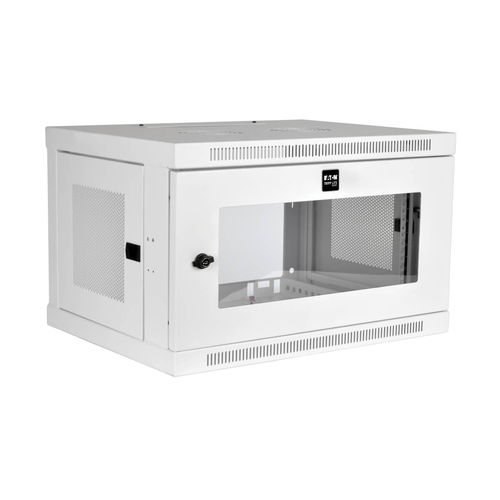

Tripp Lite SRW6UWG SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure, Clear Acrylic Window, White

The SRW6UWG SmartRack® 6U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in home and office network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable white powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

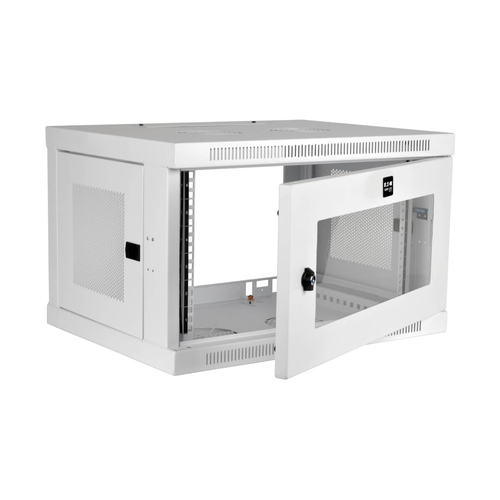

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

To ensure your valuable equipment stays secure, the front door and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

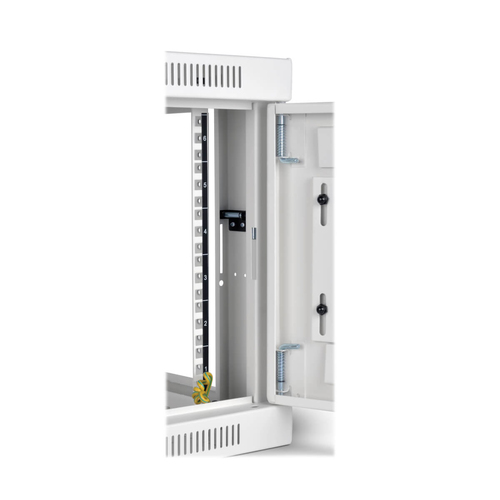

The SRW6UWG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER caster kit (sold separately) to make it a mobile rolling rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

ON ORDER

SKU: SRW6UWG

Manufacturer: Eaton Eaton

RRP Price €267.60

Specifications

Features

Type
Wall mounted rack
Maximum weight capacity
90 kg
Product colour
White
Certification
UL/CSA 60950-1, EIA-310-E, RoHS

Weight & dimensions

Width
596.9 mm
Depth
444.5 mm
Height
368.3 mm
Weight
13.2 kg

Packaging data

Package width
655.3 mm
Package depth
505.5 mm
Package height
439.4 mm
Package weight
15 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
655.3 mm
Master (outer) case length
505.5 mm
Master (outer) case height
439.4 mm
Master (outer) case gross weight
15 kg
Products per master (outer) case
1 pc(s)
