Tripp Lite SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back

Name: Tripp Lite SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back
Brand: Eaton
SKU: SRW18USG
Price: 815.30 EUR
Availability: OutOfStock

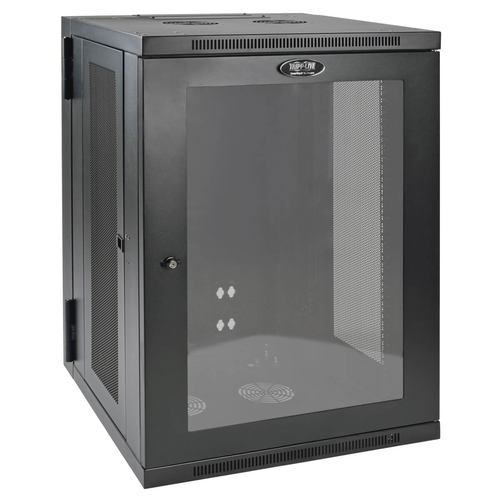

The SRW18USG SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 lbs (113.4 kgs).

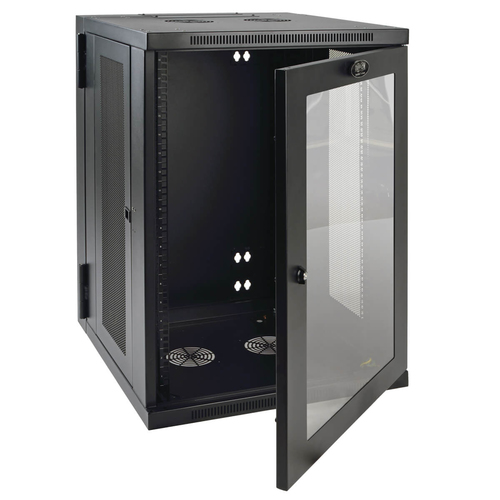

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

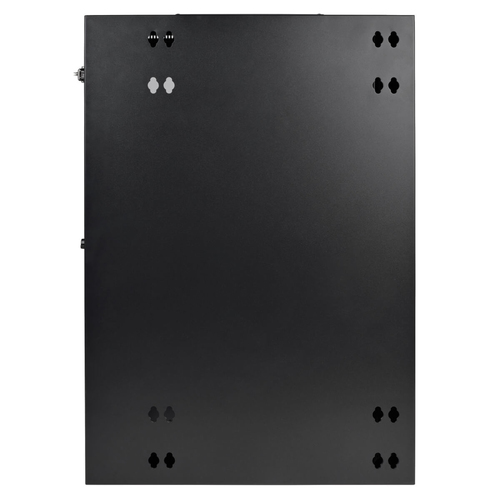

The cabinet swings away from the wall on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. To ensure your valuable equipment stays secure, the doors and side panels lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the rack to keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

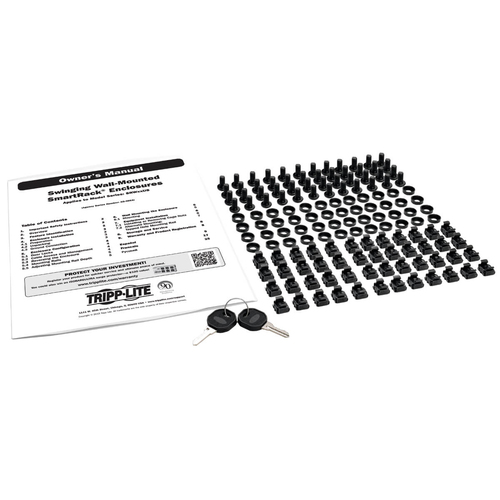

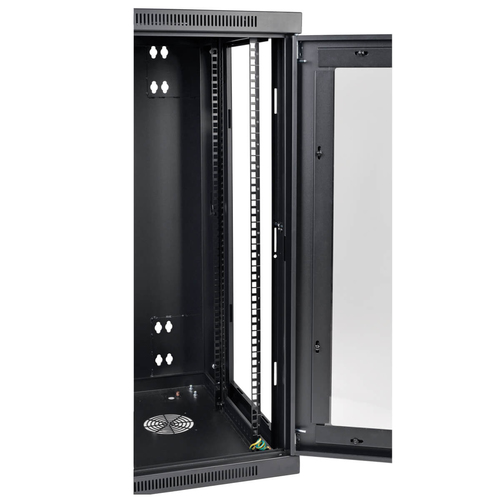

The SRW18USG comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to house equipment up to 20.5 inches deep, such as network switches and patch panels.

ON ORDER

SKU: SRW18USG

Manufacturer: Eaton Eaton

RRP Price €815.30

Specifications

Features

Rack capacity

18U

Type

Freestanding rack

Maximum weight capacity

113 kg

Product colour

Black

Material

Steel

Cable management

Yes

Certification

UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100

Weight & dimensions

Size (imperial)

48.3 cm (19")

Width

599.4 mm

Depth

548.6 mm

Height

904.2 mm

Weight

43.5 kg

Packaging data

Nuts included

Yes

Number of nuts

Screws included

Yes

Number of screws

Number of washers included

Manual

Yes

Package width

662.9 mm

Package depth

612.9 mm

Package height

1034 mm

Package weight

50.6 kg

Technical details

Compliance certificates

RoHS

Logistics data

Country of origin

China

Harmonized System (HS) code

8517.79.0000

Master (outer) case width

662.9 mm

Master (outer) case length

612.9 mm

Master (outer) case height

1034 mm

Master (outer) case gross weight

50.6 kg

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

43.54 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
