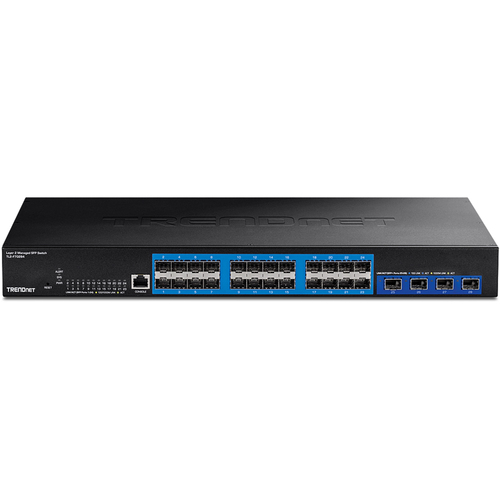

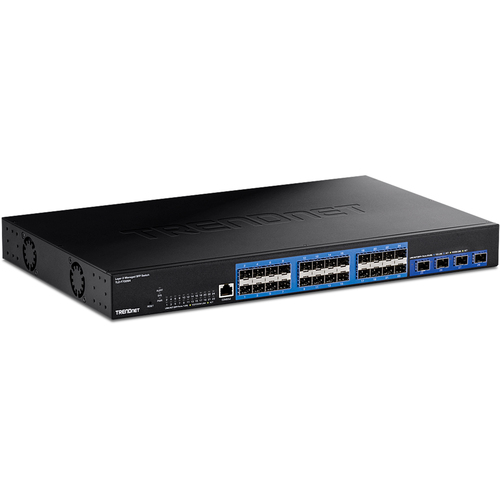

Trendnet TL2-F70284 network switch Managed Black

TRENDnet’s 28-Port Layer 2 Managed SFP Switch with 10G SFP+ Ports, model TL2-F70284, offers advanced traffic management controls to meet the evolving demands of SMB networks. This rack-mountable IPv6-ready managed SFP switch comes with an intuitive web-based interface. Advanced management features on this managed SFP switch include LACP to increase bandwidth between switches by grouping ports together, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring; it is fully manageable through the console port, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the SFP switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. Take advantage of the available multicast and IGMP/MLD snooping features to minimize network traffic, as well as optimize IP surveillance system performance.
TRENDnet’s Layer 2 Managed SFP Switch features four 10GSFP+ slots for high-speed network connections, providing a costeffective solution in adding 10G link capability to an SMB network.

ON ORDER

SKU: TL2-F70284

Manufacturer: Trendnet Trendnet

RRP Price €488.16

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type
No
SFP module slots quantity
24
SFP+ module slots quantity
1
Console port
RJ-45

Network

Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN
Number of VLANs
4094

Data transmission

Switching capacity
128 Gbit/s
Forwarding rate
95.2 Mpps
MAC address table
32000 entries
Store-and-forward
Yes
Packet buffer memory
2 MB

Security

DHCP features
DHCP snooping
IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Product colour
Black
Number of fans
3 fan(s)

Performance

Noise level
52.9 dB
Mean time between failures (MTBF)
412539 h

Power

Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
38.4 W

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Weight & dimensions

Width
440 mm
Depth
270 mm
Height
44 mm
Weight
3.82 kg

Certificates

Certification
CE FCC ETL
