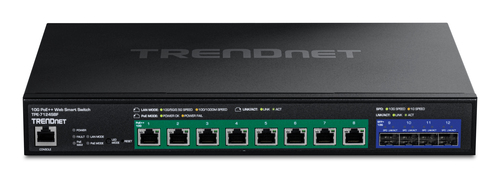

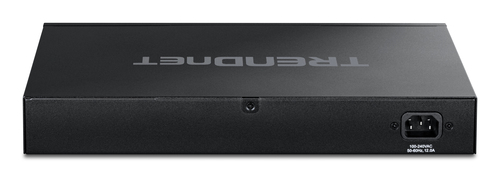

Trendnet TPE-7124SBF network switch Managed 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Black

TRENDnet’s 12-Port 10G PoE++ Web Smart Switch (720W), model TPE-7124SBF, offers advanced traffic management controls to meet the evolving demands of SMB networks. This 10G managed PoE++ switch comes with an intuitive web-based interface. Management features include LACP to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for any SMB network. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with an easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to this 10G managed PoE++ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic.

This 12-Port 10G managed PoE++ switch also features eight 10GBASE-T PoE++ ports, and four 10G fiber SFP+ ports for long-distance, high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s 10G PoE++ switch by delivering up to 90W per port of PoE power and data over existing Ethernet cables. Easily network PoE devices with a 720W PoE budget to devices, such as high-power wireless access points, LED lighting, digital signage, IPTV decoders, access controls, cameras, and more with this high-power 10G managed PoE++ switch.

ON ORDER

SKU: TPE-7124SBF

Manufacturer: Trendnet Trendnet

RRP Price €719.03

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN

Data transmission

Switching capacity
240 Gbit/s
Forwarding rate
178.56 Mpps
MAC address table
32000 entries
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
1 MB

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Product colour
Black
Reset button
Yes
LED indicators
Yes
Number of fans
3 fan(s)

Performance

Noise level
51.1 dB
Mean time between failures (MTBF)
161000 h

Power

AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
57.4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
720 W

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Weight & dimensions

Width
330 mm
Depth
228 mm
Height
44 mm
Weight
2.88 kg

Packaging content

Cables included
AC
Rack mount kit
Yes

Certificates

Certification
CE FCC UL
