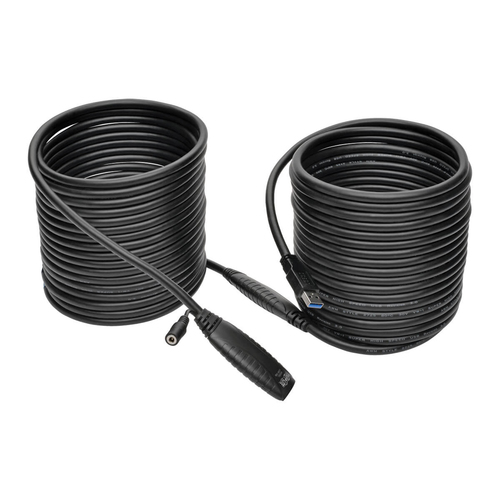

Tripp Lite U330-15M USB 3.0 SuperSpeed Active Extension Repeater Cable (USB-A M/F), 15M (49.21 ft.)

This U330-15M USB 3.0 SuperSpeed Active Extension Repeater Cable (M/F) increases the length of a device cable up to 49 feet (15 meters) with no worry of signal loss. By daisy-chaining two cables, you can extend the length between USB devices up to 98 feet (30 meters). Connect the male plug to a USB port on your computer or hub and the female end to a USB device cable. A built-in bus-powered signal booster ensures peak performance. Backward compatible with previous USB generations, this cable supports data transfer rates up to 5 Gbps.

The U330-15M works with all computers, devices and cables with USB-A connectors, and provides up to 388mA of power to a connected device (a 5V 2A external power supply is required for power applications stronger than 388mA). Premium foil and braid shielding delivers top-of-the-line signal quality and protection from EMI/RFI interference. Nickel-plated USB connectors with gold-plated copper contacts ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time.

ON ORDER

SKU: U330-15M

Manufacturer: Eaton Eaton

RRP Price €99.02

Specifications

Features

USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB A
Connector 2
USB A
Connector gender
Male/Female
Connector 1 gender
Male
Connector 2 gender
Female
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel
Reversible connectors
No
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate
5 Gbit/s
Product colour
Black
Plug and Play
Yes

Power

Input voltage
5 V
Output current (max)
2 A

Weight & dimensions

Cable length
15 m

Packaging data

Package width
363.2 mm
Package depth
12.7 mm
Package height
431.8 mm
Package weight
1.04 kg

Packaging content

Quantity per pack
1 pc(s)

Certificates

Compliance certificates
RoHS

Logistics data

Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332199703
Master (outer) case width
299.7 mm
Master (outer) case length
436.9 mm
Master (outer) case height
170.2 mm
Master (outer) case gross weight
10.9 kg
Harmonized System (HS) code
84733080
Country of origin
China

Accessories

License
