Tripp Lite U360-010-IND 10-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity, Metal Housing, Mountable

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

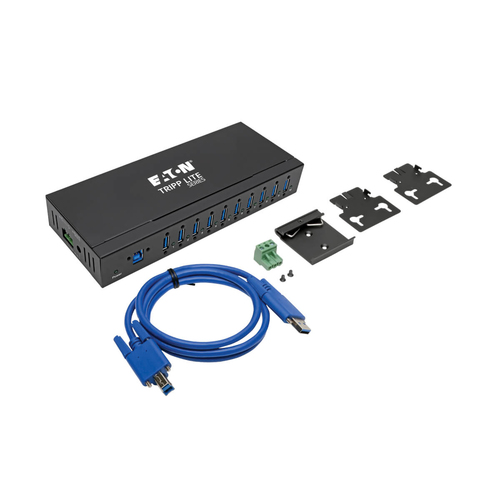

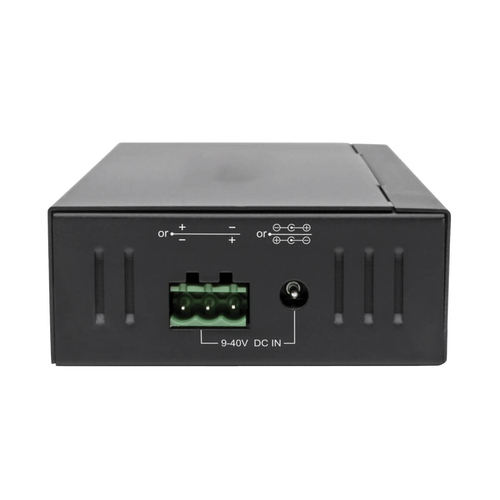

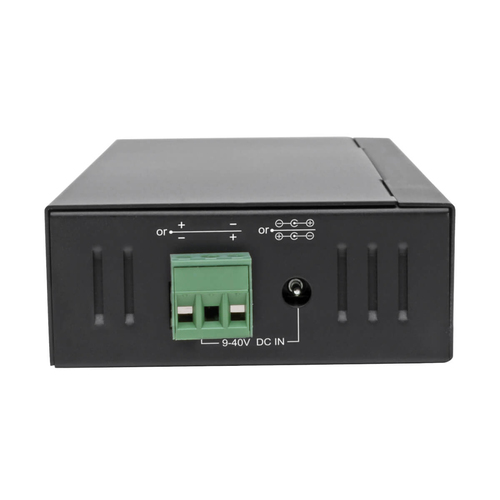

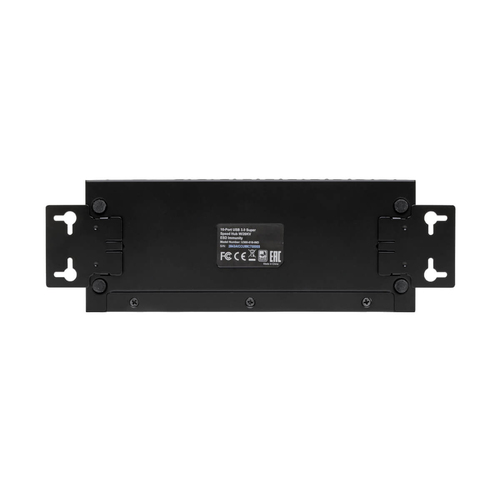

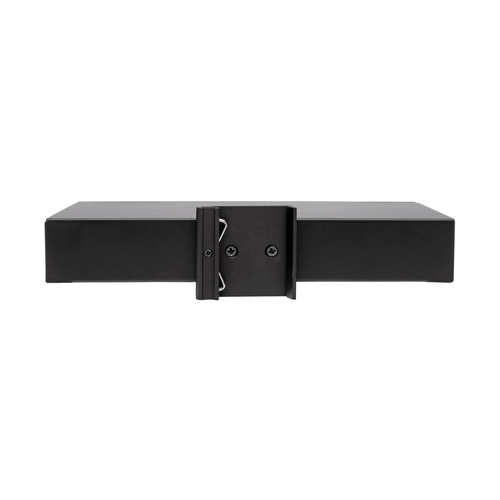

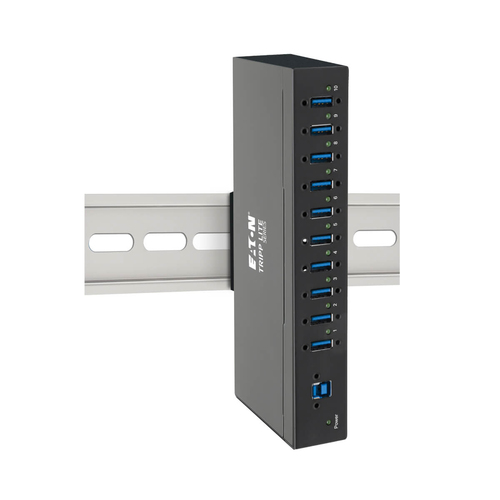

The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

ON ORDER

SKU: U360-010-IND

Manufacturer: Eaton Eaton

RRP Price €221.95

Specifications

Ports & interfaces

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
10
Ports quantity
10
Terminal block port
Yes

Features

Data transfer rate
5000 Mbit/s
Product colour
Black
Housing material
SGCC
Overcurrent protection
Yes
LED indicators
Yes
Plug and Play
Yes
Country of origin
Malaysia
Certification
CE, FCC, RoHS, REACH

Power

Power consumption (max)
51.3 W
Input voltage
100 - 240 V
Input current
0.6 A
AC input frequency
50 - 60 Hz
Output voltage
9 - 40 V
Output current
3 A
USB charging port
Yes

Weight & dimensions

Width
201 mm
Depth
81 mm
Height
33 mm
Weight
430 g

Packaging data

Package width
114.3 mm
Package depth
228.6 mm
Package height
66 mm
Package weight
640 g
Package type
Box

Packaging content

Cables included
USB
Wall mounting kit
Yes
Manual
Yes
Terminal block included
Yes
DIN rail kit included
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating temperature (T-T)
32 - 104 °F
Storage temperature (T-T)
-10 - 55 °C
Operating relative humidity (H-H)
5 - 90%

Logistics data

Master (outer) case width
246.4 mm
Master (outer) case length
350.5 mm
Master (outer) case height
256.5 mm
Master (outer) case gross weight
6.94 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332231243
Harmonized System (HS) code
84719000
