Tripp Lite U360-007-IND 7-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity, Metal Housing, Mountable

Industrial-Grade USB 3.0 Hub Adds up to 7 USB Devices to Your Computer

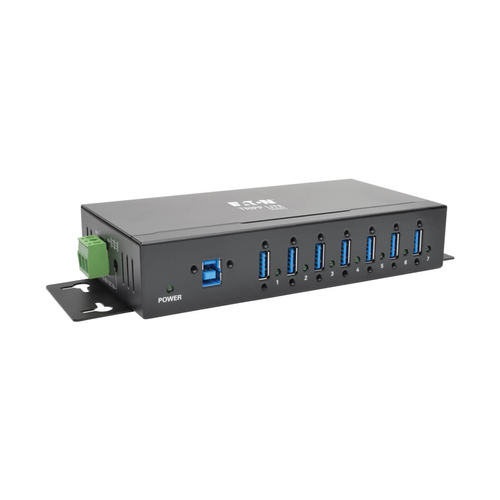

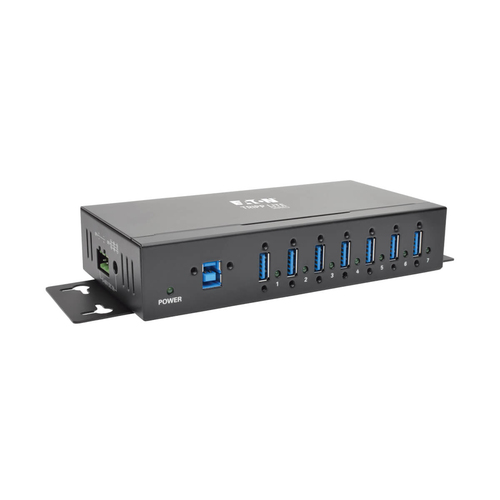

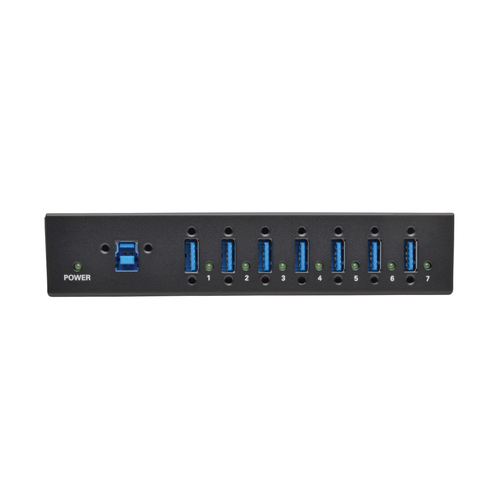

This USB 3.0 hub with a heavy-duty all-metal housing connects as many as seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This seven-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

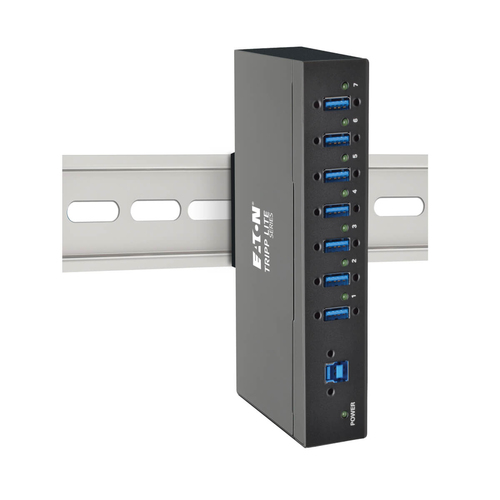

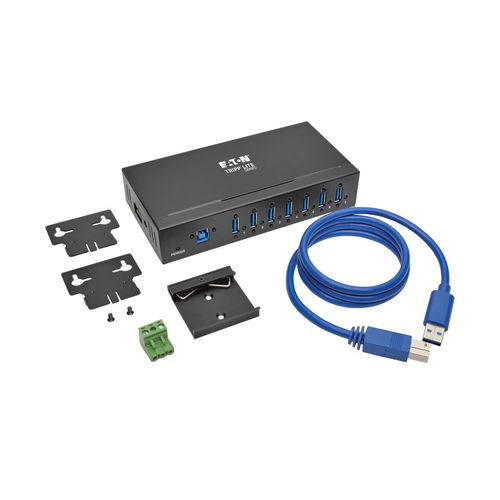

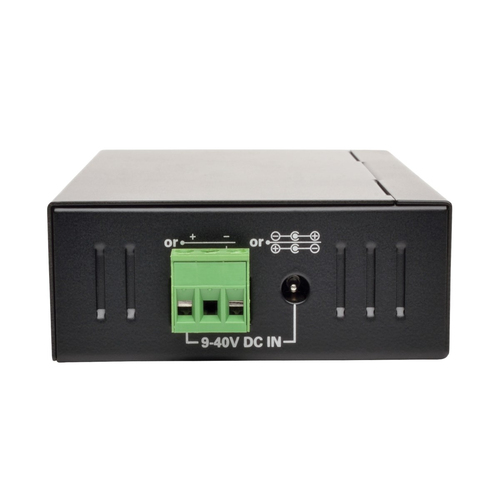

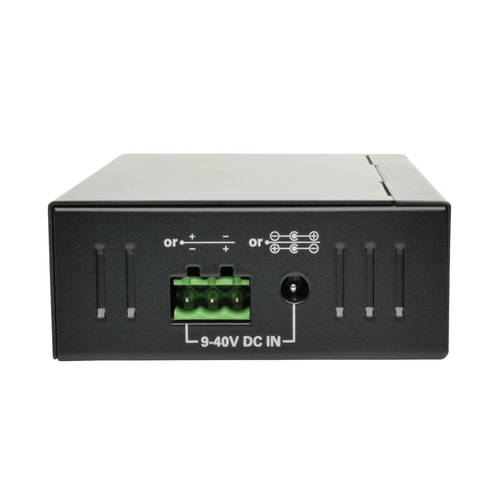

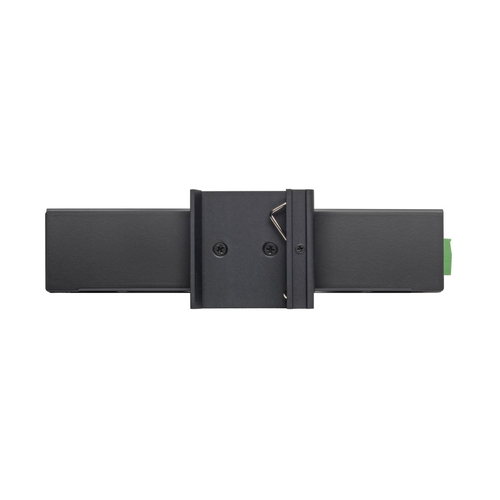

The U360-007-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9V–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

ON ORDER

SKU: U360-007-IND

Manufacturer: Eaton Eaton

RRP Price €177.30

Specifications

Ports & interfaces

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
Ports quantity
7
Card reader integrated
No

Features

Data transfer rate
5000 Mbit/s
Product colour
Black
Housing material
Metal
Surge protection
Yes
Plug and Play
Yes
Country of origin
Malaysia

Power

Power source type
AC
USB powered
No

Weight & dimensions

Width
142.2 mm
Depth
63.5 mm
Height
25.4 mm
Weight
340 g

Packaging data

Package width
114.3 mm
Package depth
188 mm
Package height
66 mm
Package weight
1.13 kg

Packaging content

Cables included
USB
Wall mounting kit
Yes
Manual
Yes
Terminal block included
Yes

Operational conditions

Operating temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
5 - 95%

Logistics data

Master (outer) case width
365.8 mm
Master (outer) case length
386.1 mm
Master (outer) case height
137.2 mm
Master (outer) case gross weight
5.99 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332186307
Harmonized System (HS) code
84719000
