Cisco Small Business Catalyst 2960X-24PS-L Network Switch, 24 Gigabit Ethernet Ports, 370W PoE Budget, four 1 G SFP Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-24PS-L)

The Cisco Catalyst 2960X-24PS-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.

ON ORDER

SKU: WS-C2960X-24PS-L

Manufacturer: Cisco Cisco

RRP Price €7,262.12

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
MIB support
Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
SFP module slots quantity
4
Console port
RJ-45
USB 2.0 ports quantity
2

Network

Networking standards
IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN
Number of VLANs
1023

Data transmission

Switching capacity
216 Gbit/s
Throughput
71.4 Mpps
MAC address table
16000 entries
Number of queues
8
Number of static routes
1000
Jumbo frames support
Yes
Jumbo frames
9216

Security

DHCP features
DHCP server
Access Control List (ACL)
Yes
Access Control List (ACL) rules
3
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH
SSH/SSL support
Yes
Authentication
MAC-based authentication, Port-based authentication

Multicast features

Multicast support
Yes
Number of multicast groups filtered
1000

Protocols

Management protocols
SNMPv3
Switching protocols
UDP, TCP, RADIUS/TACACS+

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
Market segment
Business
Safety
UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1

Performance

Physical stacking (units)
8
Built-in processor
Yes
Processor model
AppliedMicro APM8639
Processor frequency
600 MHz
Memory type
DRAM
Internal memory
512 MB
Flash memory
128 MB
Noise level
39 dB
Mean time between failures (MTBF)
324280 h

Power

Power supply included
Yes
Redundant power supply (RPS) support
Yes
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
5 A
Power consumption (typical)
49 W
Power plug type
Type C

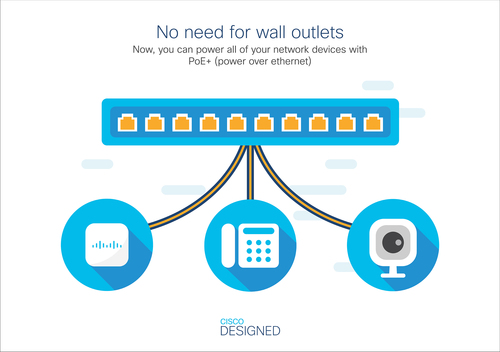

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet plus (PoE+) ports quantity
12
Total Power over Ethernet (PoE) budget
370 W

Other features

Power LED
Yes
Packaging content
WS-C2960X-24PS-L Switch, Accessory Kit, 1 printed document

Operational conditions

Operating temperature (T-T)
-5 - 40 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4000 m

Weight & dimensions

Width
445 mm
Depth
368 mm
Height
45 mm
Weight
5.8 kg

Packaging content

Cables included
AC
User guide
Yes

Packaging data

Package width
469.9 mm
Package depth
549.4 mm
Package height
147.6 mm
Package weight
7.07 kg

Technical details

Products per shipping (inner) case
1 pc(s)

Logistics data

Quantity per pack
1 pc(s)
Country of origin
China
Harmonized System (HS) code
85176990
Products per master (outer) case
1 pc(s)

Accessories

License
