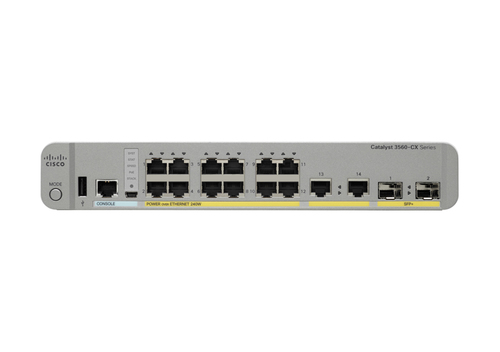

Cisco Catalyst 3560CX-12PD-S Network Switch, 12 Gigabit Ethernet Ports, 12 PoE+ Outputs, 240W PoE Budget, two 10 G SFP+ and two 1 G Copper Uplinks, Enhanced Limited Lifetime Warranty (WS-C3560CX-12PD-S)

Cisco Catalyst 3560CX-12PD-S Network Switch, 12 Gigabit Ethernet Ports, 12 PoE+ Outputs, 240W PoE Budget, two 10 G SFP+ and two 1 G Copper Uplinks, Enhanced Limited Lifetime Warranty (WS-C3560CX-12PD-S)

Name: Cisco Catalyst 3560CX-12PD-S Network Switch, 12 Gigabit Ethernet Ports, 12 PoE+ Outputs, 240W PoE Budget, two 10 G SFP+ and two 1 G Copper Uplinks, En...
Brand: Cisco
SKU: WS-C3560CX-12PD-S
Price: 1305.10 EUR
Availability: InStock

The Cisco Catalyst 3560CX-12PD-S Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the server room and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.

END OF SALE

Successor: C9200CX-12P-2X2G-A

SKU: WS-C3560CX-12PD-S

Manufacturer: Cisco Cisco

RRP Price €1,305.10

Specifications

Management features

Switch type

Managed

Quality of Service (QoS) support

Yes

ARP inspection

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP+ module slots quantity

Network

Networking standards

IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Port mirroring

Yes

Full duplex

Yes

IP routing

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

4000

Optical fiber

Fiber ethernet cabling technology

100BASE-BX, 100BASE-FX, 100BASE-LX, 1000BASE-X, 1000BASE‑BX, 1000BASE‑LH, 1000BASE‑SX, 1000BASE‑ZX

Fiber type

Multi-mode

Data transmission

Switching capacity

68 Gbit/s

Forwarding rate

50.6 Mpps

Jumbo frames support

Yes

Jumbo frames

9198

Security

DHCP features

DHCP server, DHCP snooping, DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

802.1x RADIUS, SNMP

Static port security

Yes

SSH/SSL support

Yes

Authentication

MAC-based authentication

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Product colour

White

Wall mountable

Yes

DIN rail mounting

Yes

Market segment

Business

Safety

UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825

Electromagnetic compatibility

FCC 15, CFR 47, EN 55022 (CISPR22), EN 55024 (CISPR24), CE, AS/NZS, A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC (MIC, GB17625.1-1998) A, KN24/KN22, ANATEL, CCC, GOST
