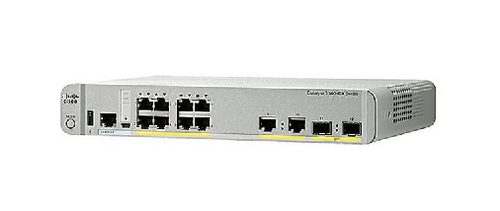

Cisco WS-C3560CX-8PT-S network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

The Cisco® Catalyst® Compact Switches easily expand your Ethernet and Multigigabit Ethernet Cisco Catalyst switching infrastructure outside the wiring closet to enable new workspaces, extend wireless LANs, and connect PoE devices. These fanless, small form-factor switches are ideal for space-constrained deployments where multiple cable runs would be challenging. With speeds that reach 10Gbps, the Cisco Catalyst 3560CX Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) and Multigigabit Ethernet (mGig) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE+) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Cisco Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.

With their quiet, fanless design and compact footprint, these switches offer flexible mounting options and open up
a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.

ON ORDER

SKU: WS-C3560CX-8PT-S

Manufacturer: Cisco Cisco

RRP Price €2,956.17

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
2

Network

Networking standards
IEEE 802.11ac, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
4000

Optical fiber

Fiber ethernet cabling technology
100BASE-BX, 100BASE-FX, 100BASE-LX, 1000BASE-X, 1000BASE‑BX, 1000BASE‑LH, 1000BASE‑SX, 1000BASE‑ZX
Fiber type
Multi-mode

Data transmission

Switching capacity
32 Gbit/s
Forwarding rate
14.9 Mpps
Jumbo frames support
Yes
Jumbo frames
9198

Security

DHCP features
DHCP server, DHCP snooping, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP
Static port security
Yes
SSH/SSL support
Yes
Authentication
MAC-based authentication

Multicast features

Multicast support
Yes

Design

Rack mounting
Yes
Product colour
White
Wall mountable
Yes
DIN rail mounting
Yes
Safety
UL 60950-1, CAN/CSA 22.2 # 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Electromagnetic compatibility
FCC 15, CFR 47, EN 55022 (CISPR22), EN 55024 (CISPR24), CE, AS/NZS, A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC (MIC, GB17625.1-1998) A, KN24/KN22, ANATEL, CCC, GOST

Performance

Internal memory
512 MB
Flash memory
128 MB
Mean time between failures (MTBF)
737740 h

Power

AC input voltage
100 - 240 V
Input current
1.6 - 6 A
Power consumption (typical)
24.3 W
Power consumption (max)
146 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
180 W

Operational conditions

Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 4000 m
Heat dissipation
375.31 BTU/h

Weight & dimensions

Width
269 mm
Depth
177 mm
Height
44.4 mm
Weight
1.58 kg

Logistics data

Harmonized System (HS) code
85176990
