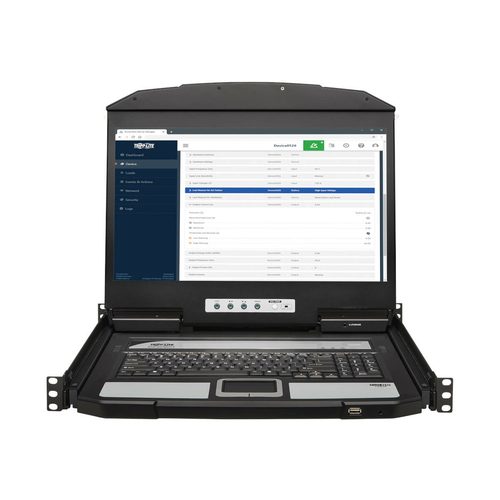

Tripp Lite B021-SWHD-K 1U Rack-Mount Short-Depth HDMI KVM Console KVM Switch with 18.5 in. LCD

Provides Easy All-in-One Control of a Computer, Server or KVM Switch

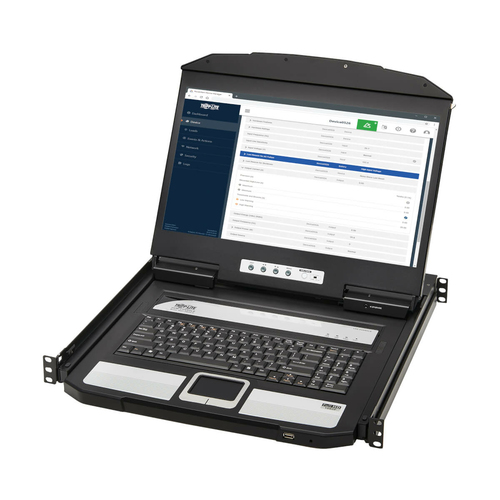

Simple to install and operate, this HDMI KVM console combines a 105-key PC-compatible keyboard, numeric keypad, touchpad and 18.5-inch color widescreen LCD with 1080p resolution. By connecting the B021-SWHD-K to a KVM switch, you can control multiple computers or servers from one central location. The console is designed for use with a server or KVM switch with USB console connectors.

Saves Space in Your Busy Rack

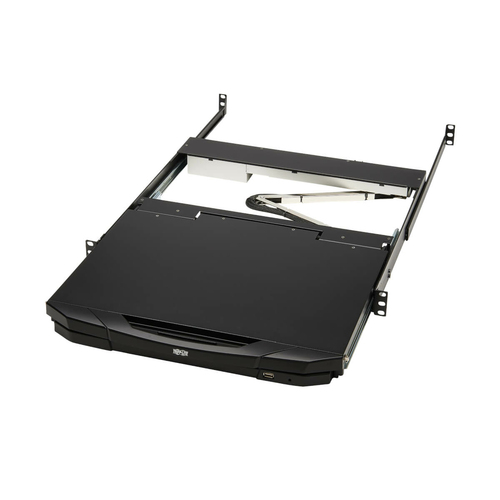

This 1U short-depth console ships with 2-in-1 mounting rails that allow it to be installed directly in front of an HDMI KVM switch to save rack space. Housed in an all-metal sliding drawer, the console mounts with included hardware into 1U of your EIA-standard 19-inch rack. Just pull out the drawer and flip up the 1080p color widescreen monitor when you need it. Slide it back into the rack when not in use. The B021-SWHD-K works with Windows, macOS, Linux and Sun.

Supports High-Definition Video and USB Pass-Through for Connecting Peripherals
The widescreen LCD supports HD video up to 1920 x 1080 (1080p) at 60 Hz. The connected computer’s video settings adjust automatically for optimal display on the LCD. A front USB port allows connection of a USB peripheral, such as a flash drive or CAC card reader.

ON ORDER

SKU: B021-SWHD-K

Manufacturer: Eaton Eaton

RRP Price €1,362.72

Specifications

Display

Display diagonal
47 cm (18.5")
Display resolution
1920 x 1080 pixels
On Screen Display (OSD)
Yes

Technical details

Material
Metal, Plastic
Product colour
Black
Relative humidity
0 - 80%
Rack mounting
Yes
Console port
HDMI/USB
On/off switch
Yes
LED indicators
Yes
Sustainability compliance
Yes
Master (outer) case GTIN (EAN/UPC)
10037332273205
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Rack capacity
1U
Country of origin
Taiwan

Ports & interfaces

Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
USB 2.0 Type-A ports quantity
3

Keyboard

Keyboard number of keys
105
Built-in touchpad
Yes

Power

AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Input current
1 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

System requirements

Windows operating systems supported
Yes
Mac compatibility
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes

Weight & dimensions

Width
477 mm
Height
480.6 mm
Depth
42.9 mm
Weight
9 kg

Packaging data

Package weight
13.9 kg
Package width
830 mm
Package depth
670 mm
Package height
140 mm

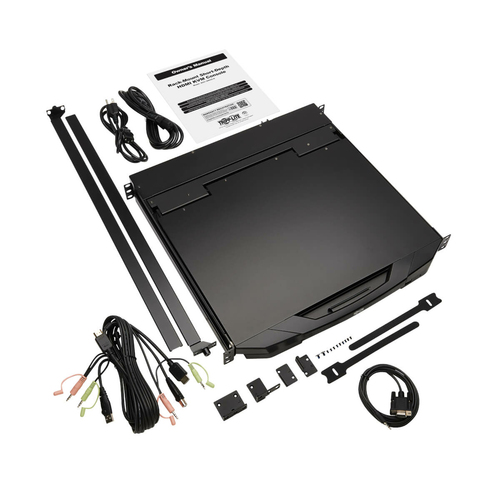

Packaging content

Cables included
AC, KVM, Serial
Quick installation guide
Yes
Rack mount kit
Yes
Package type
Box

Logistics data

Master (outer) case width
830 mm
Master (outer) case length
670 mm
Master (outer) case height
140 mm
Master (outer) case gross weight
13.9 kg
Products per master (outer) case
1 pc(s)
