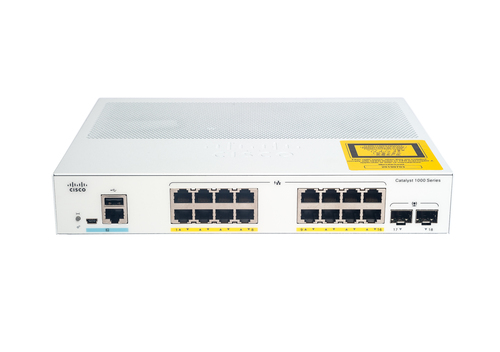

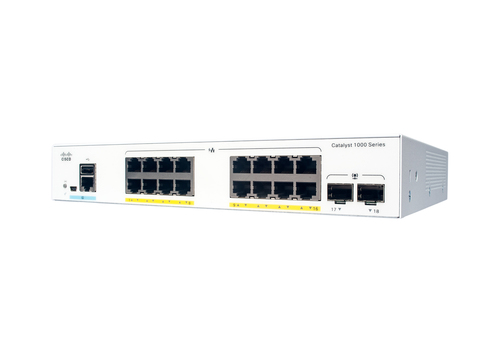

Cisco Catalyst 1000-16FP-2G-L Network Switch, 16 Gigabit Ethernet (GbE) PoE+ Ports, 240W PoE Budget, two 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-16FP-2G-L)

Cisco Catalyst 1000-16FP-2G-L Network Switch, 16 Gigabit Ethernet (GbE) PoE+ Ports, 240W PoE Budget, two 1 G SFP Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-16FP-2G-L)

Name: Cisco Catalyst 1000-16FP-2G-L Network Switch, 16 Gigabit Ethernet (GbE) PoE+ Ports, 240W PoE Budget, two 1 G SFP Uplink Ports, Fanless Operation, Enha...
Brand: Cisco
SKU: C1000-16FP-2G-L
Price: 1300.95 EUR
Availability: OutOfStock

The Cisco Catalyst 1000-16FP-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

ON ORDER

SKU: C1000-16FP-2G-L

Manufacturer: Cisco Cisco

RRP Price €1,300.95

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

Traffic classification

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Console port

RJ-45/Mini-USB

USB 2.0 ports quantity

Network

Networking standards

IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Link aggregation

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

Number of VLANs

256

Data transmission

Switching capacity

36 Gbit/s

Forwarding rate

26.78 Mpps

MAC address table

16000 entries

Static route

Yes

Number of static routes

Jumbo frames support

Yes

Jumbo frames

10240

Security

DHCP features

DHCP snooping

Access Control List (ACL)

Yes

IGMP snooping

Yes

IGMP entries

1024

SSH/SSL support

Yes

Loop protection

Yes

BPDU filtering/protection

Yes

Authentication

Web-based authentication

Authentication type

RADIUS

Multicast features

Multicast support

Yes

IPv4 multicast entries

1024

IPv6 multicast entries

1024

Design

Product colour

Grey

LED indicators

Yes

Market segment

Business

Performance

Built-in processor

Yes

Processor model

ARM7

Processor frequency

800 MHz

Memory type

DRAM

Internal memory

512 MB

Flash memory

256 MB

Power

AC input voltage

110 - 220 V

AC input frequency

50 - 60 Hz

Power plug type

Type C

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Power over Ethernet (PoE) power per port

15 W

Total Power over Ethernet (PoE) budget

240 W

Other features

Packaging content

C1000-16FP-2G-L Switch, Accessory Kit, 1 printed document

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 4500 m

Weight & dimensions

Width

308.4 mm

Depth

268.2 mm

Height

44 mm

Weight

2.49 kg

Packaging data

Package width

349.2 mm

Package depth

387.4 mm

Package height

160.3 mm

Package weight

3.8 kg

Technical details

Products per shipping (inner) case

1 pc(s)

Logistics data

Quantity per pack

1 pc(s)

Country of origin

China

Harmonized System (HS) code

85176990

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.49 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
