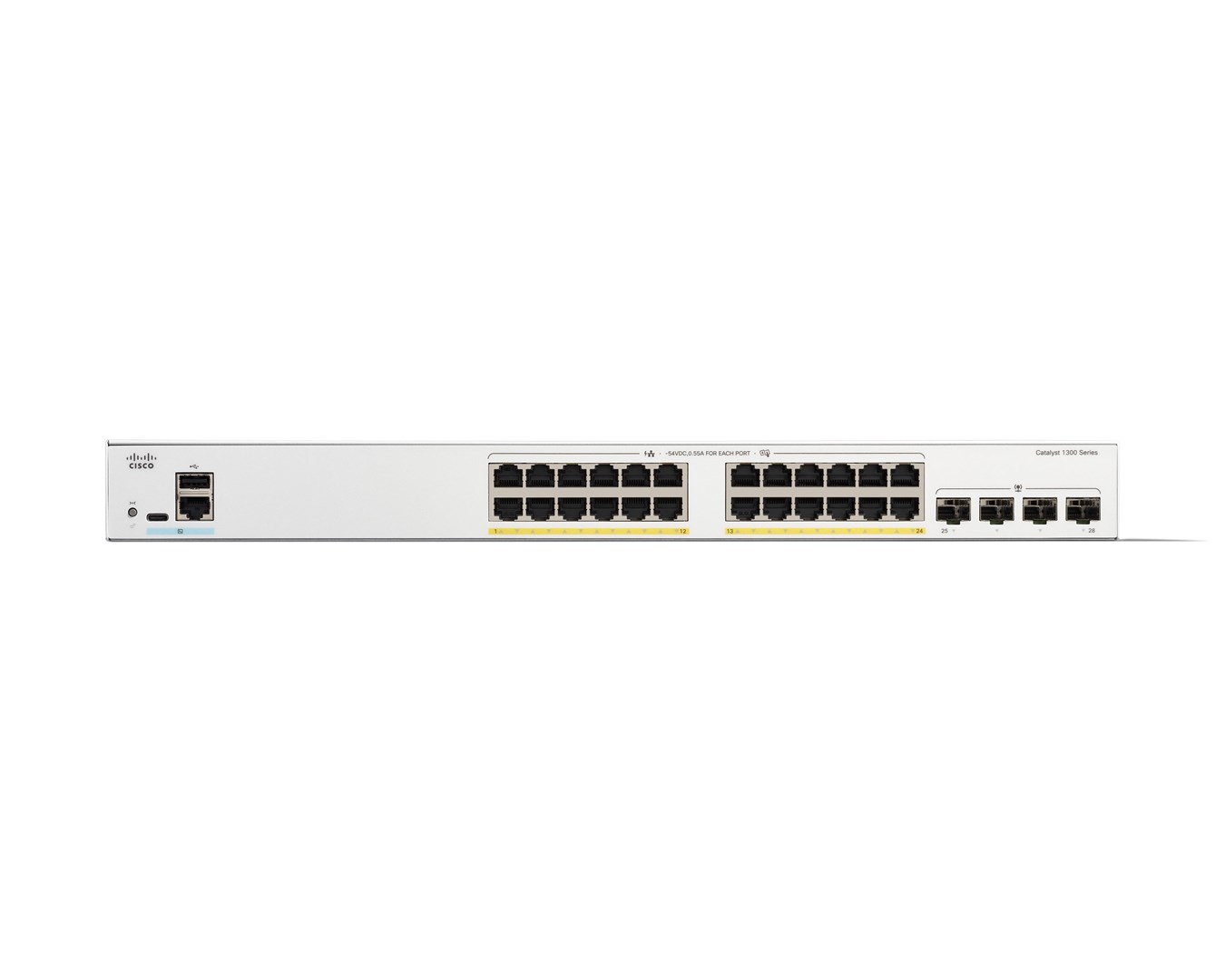

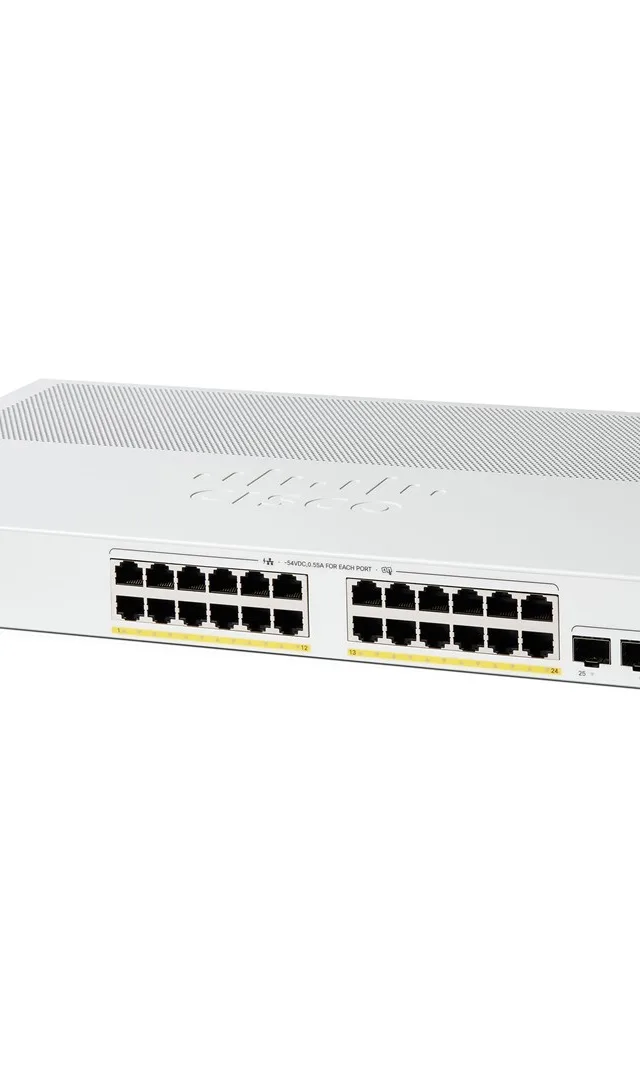

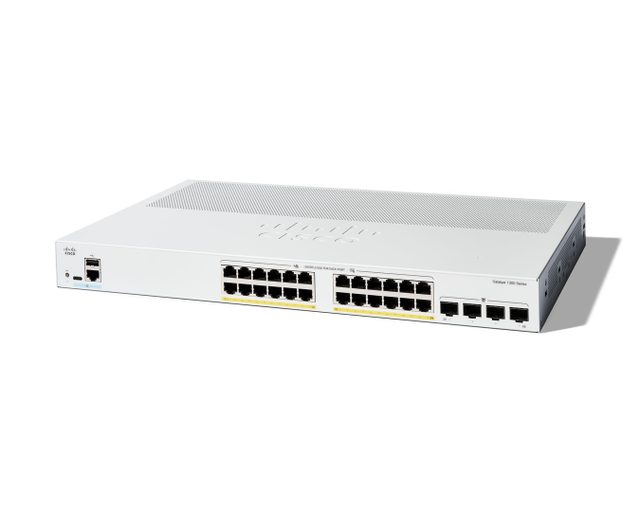

Cisco Catalyst 1300-24P-4G Managed Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1300-24P-4G)

The Cisco Catalyst 1300-24P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

100 IN STOCK

SKU: C1300-24P-4G

Manufacturer: Cisco Cisco

RRP Price €718.66

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Console port
RJ-45/USB Type-C

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Cable types supported
Cat5e
Port mirroring
Yes
Policy-based routing
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
QinQ implementation
Selective QinQ
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN

Data transmission

Switching capacity
56 Gbit/s
MAC address table
16000 entries
Number of queues
8
Static route
Yes
Number of static routes
990
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
1.5 MB

Security

DHCP features
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
Access Control List (ACL) rules
1024
IGMP snooping
Yes
IGMP proxy
Yes
Security algorithms
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
SSH/SSL support
Yes
Authentication
MAC-based authentication, Web-based authentication
DoS attack prevention
Yes
Authentication type
RADIUS, TACACS+
Queue scheduling algorithms
Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes
IPv4 & IPv6 features
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Design

Rack mounting
Yes
Product colour
Grey
Reset button
Yes

Performance

Built-in processor
Yes
Processor frequency
1.4 MHz
Memory type
DDR4-SDRAM
Internal memory
1000 MB
Flash memory
512 MB
Plug and Play
Yes
Mean time between failures (MTBF)
698220 h

Power

Power source
AC
AC input voltage
100 - 220 V
AC input frequency
50/60 Hz
Power consumption (typical)
27.5 W
Power plug type
Type C

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
24
Total Power over Ethernet (PoE) budget
195 W

Other features

Packaging content
Switch, power cable, USB Type C cable and mounting hardware

Operational conditions

Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
795.2 BTU/h

Weight & dimensions

Width
298.7 mm
Depth
444.5 mm
Height
43.9 mm
Weight
3.53 kg

Packaging data

Package width
430 mm
Package depth
575.1 mm
Package height
105.9 mm
Package weight
5.77 kg

Certificates

Certification
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Logistics data

Country of origin
China
