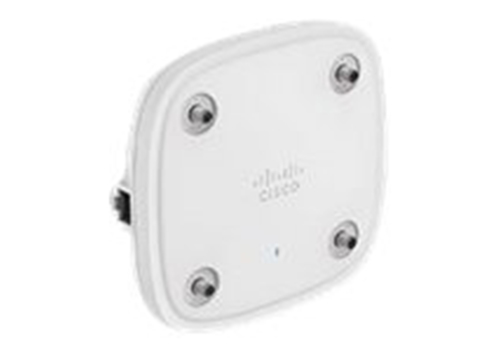

Cisco Catalyst 9120AXE-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, PoE, External antenna, (C9120AXE-E)

The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.

42 IN STOCK

SKU: C9120AXE-E

Manufacturer: Cisco Cisco

RRP Price €1,095.00

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
5000 Mbit/s
Maximum data transfer rate (2.4 GHz)
2500 Mbit/s
Maximum data transfer rate (5 GHz)
5000 Mbit/s
Ethernet LAN data rates
100,1000,2500,5000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Channels quantity
29 channels
Bluetooth
Yes
Bluetooth version
5.0
MIMO
Yes
MIMO type
Multi User MIMO

Security

Security algorithms
AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3

Management features

Syslog
Yes
Firmware upgradeable
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
Internal RJ-45 ports quantity
1
USB 2.0 ports quantity
1
WAN connection
Ethernet (RJ-45), Mobile network (SIM), Wi-Fi

Power

Power over Ethernet (PoE)
Yes
Power plug type
Type C

Design

Placement
Ceiling, Floor, Table
Product colour
White
On/off switch
Yes

Antenna

Antenna type
Internal & external
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Antennas quantity
4
Antenna gain level (max)
6 dBi
Antenna connector type
RP-TNC
Number of connectors
2

Performance

Flash memory
1024 MB
Internal memory
2048 MB

Technical details

Products per shipping (inner) case
1 pc(s)

Weight & dimensions

Width
216 mm
Depth
216 mm
Height
51 mm
Weight
1.36 kg

Packaging data

CD manual
Yes
Package width
244.6 mm
Package depth
263.7 mm
Package height
90.4 mm
Package weight
671.2 g

Packaging content

Quantity per pack
1 pc(s)
AC adapter included
Yes
PoE adapter included
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-39 - 70 °C
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 4572 m

Logistics data

Harmonized System (HS) code
85176990
Country of origin
Mexico
Products per master (outer) case
1 pc(s)

Accessories

License
