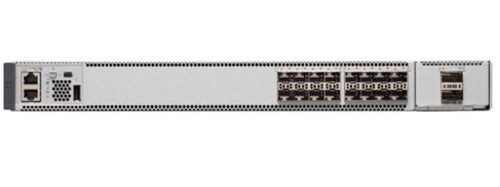

Cisco Catalyst 9500 16-PORT 10GIG SWITCH. NETWORK ADVANTAGE Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey

Cisco C9500-NM-2Q= network switch module 40 Gigabit Ethernet

The Cisco® Catalyst® 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The switches come with a 4-core, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus. These switches deliver unmatched table scale (MAC/route/ACL) and buffering for enterprise applications. The Catalyst 9500 Series includes nonblocking 40G Quad Small Form-factor Pluggable (QSFP+) and 1G/10G Small Form-factor Pluggable Plus (SFP/SFP+) switches with granular port densities that fit diverse campus needs. The switches support advanced routing and infrastructure services (such as Multiprotocol Label Switching [MPLS] Layer 2 and Layer 3 VPNs, Multicast VPN [MVPN], and Network Address Translation [NAT]); software-defined access border capabilities (such as a host tracking database, cross-domain connectivity, and VPN Routing and Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); and network system virtualization with Cisco StackWise® virtual technology that are critical for their placement in the campus core. The platform also supports all the foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Cisco C9500-NM-8X= network switch module 10 Gigabit Ethernet

The Cisco Catalyst 9500 Series Switches support optional network modules for uplink ports only on the 40-port 10 Gigabit Ethernet switch. The default switch configuration does not include the network module.

PWR-C4-950WDC-R=

Cisco PWR-C4-950WAC-R= network switch component Power supply

Cisco QSFP-40G-CSR-S= network transceiver module Fiber optic 40000 Mbit/s

The QSFP-40G-CSR-S is a pluggable optical transceiver with a duplex LC connector interface used for connectivity using MultiMode Fiber (MMF). The Cisco 40GBASE-CSR Modules support link lengths of 300 meters and 400 meters, respectively, on laser-optimized OM3 and OM4 multimode fibers. Customers benefit through the reuse of their existing 10 gigabit duplex MMF infrastructure as they migrate to 40 Gigabit Ethernet, while maintaining the same supported link distances as 10G Ethernet. Each QSFP-40G-CSR-S operates at four different wavelengths. Each of the four wavelengths operates at 10G over existing duplex multimode fiber using standard LC connectors. The Cisco QSFP-40G-CSR-S transceiver does not support FCoE.

Cisco QSFP-40G-CSR4= network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm

The Cisco® 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.Main features of Cisco 40GBASE QSFP+ modules include:- Support for 40GBASE Ethernet- Hot-swappable input/output device that plugs into a 40-Gigabit Ethernet QSFP+ Cisco switch port- Flexibility of interface choice- Interoperable with other IEEE-compliant 40GBASE interfaces available in various form factors- Support for "pay-as-you-populate" model- Support for the Cisco quality identification (ID) feature which enables a Cisco switch to identify whether the module is certified and tested by CiscoCisco QSFP-40G-SR4The Cisco 40GBASE-SR4 QSFP+ Module supports link lengths of 100m and 150m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over 12-fiber ribbon r cables terminated with MPO/MTP multi-fiber connectors. It can also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces. Maximum channel insertion loss allowed is respectively 1.9dB over 100m of OM3 cable or 1.5dB over 150m of OM4 cable.Cisco QSFP-40G-CSR4The Cisco 40GBASE-CSR4 QSFP+ Module is similar to the 40GBASE-SR4 interface extends supported link lengths to 300m and 400m respectively on laser-optimized OM3 and OM4 multimode fiber cables. Each 10-gigabit lane of this module is compliant to IEEE 10GBASE-SR specifications. This module can be used for native 40G optical links over 12-fiber ribbon cables with MPO/MTP connectors, or in 4x10G mode with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR interfaces. Maximum channel insertion loss allowed is respectively 2.6dB over 300m of OM3 cable or 2.9dB over 400m of OM4 cable.Cisco QSFP-40GE-LR4The Cisco 40GBASE-LR4 QSFP+ Module (Figure 2) supports link lengths of up to 10km over a standard pair of G.652 single-mode fiber with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

Cisco QSFP-40G-ER4= network transceiver module Fiber optic 40000 Mbit/s 1310 nm

The Cisco 40GBASE-ER4 QSFP Module supports link lengths up to 40km over G.652 single-mode fiber with duplex LC connectors. The 40GE or OTU3 signal is carried over four wavelengths in the 1310nm range. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

Cisco QSFP-40G-LR4= network transceiver module Fiber optic 40000 Mbit/s 1310 nm

The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.Features and Benefits of Cisco QSFP Modules- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port- Flexibility of interface choice (for different reach requirements and fiber types)- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable- Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability- High-speed electrical interface compliant to IEEE 802.3ba- QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Cisco QSFP-40G-LR4-S= network transceiver module Fiber optic 40000 Mbit/s 1310 nm

The Cisco 40GBASE-LR4 QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The QSFP-40G-LR4-S module supports 40GBase Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device.

Cisco QSFP-40G-SR-BD= network transceiver module Fiber optic 40000 Mbit/s 850 nm

The Cisco® 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.Features and Benefits of Cisco QSFP Modules- Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port- Flexibility of interface choice (for different reach requirements and fiber types)- Interoperable with other IEEE-compliant 40GBASE interfaces where applicable- Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability- High-speed electrical interface compliant to IEEE 802.3ba- QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)

Cisco QSFP-40G-SR4= network transceiver module Fiber optic 40000 Mbit/s QSFP+ 850 nm

The Cisco® 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.Main features of Cisco 40GBASE QSFP+ modules include:- Support for 40GBASE Ethernet- Hot-swappable input/output device that plugs into a 40-Gigabit Ethernet QSFP+ Cisco switch port- Flexibility of interface choice- Interoperable with other IEEE-compliant 40GBASE interfaces available in various form factors- Support for "pay-as-you-populate" model- Support for the Cisco quality identification (ID) feature which enables a Cisco switch to identify whether the module is certified and tested by CiscoCisco QSFP-40G-SR4The Cisco 40GBASE-SR4 QSFP+ Module supports link lengths of 100m and 150m respectively on laser-optimized OM3 and OM4 multimode fiber cables. It primarily enables high-bandwidth 40G optical links over 12-fiber ribbon r cables terminated with MPO/MTP multi-fiber connectors. It can also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces. Maximum channel insertion loss allowed is respectively 1.9dB over 100m of OM3 cable or 1.5dB over 150m of OM4 cable.Cisco QSFP-40G-CSR4The Cisco 40GBASE-CSR4 QSFP+ Module is similar to the 40GBASE-SR4 interface extends supported link lengths to 300m and 400m respectively on laser-optimized OM3 and OM4 multimode fiber cables. Each 10-gigabit lane of this module is compliant to IEEE 10GBASE-SR specifications. This module can be used for native 40G optical links over 12-fiber ribbon cables with MPO/MTP connectors, or in 4x10G mode with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR interfaces. Maximum channel insertion loss allowed is respectively 2.6dB over 300m of OM3 cable or 2.9dB over 400m of OM4 cable.Cisco QSFP-40GE-LR4The Cisco 40GBASE-LR4 QSFP+ Module (Figure 2) supports link lengths of up to 10km over a standard pair of G.652 single-mode fiber with duplex LC connectors. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.

Cisco QSFP-40G-SR4-S= network transceiver module Fiber optic 40000 Mbit/s 850 nm

The Cisco 40GBASE-SR4 QSFP module supports link lengths of 100 and 150 meters, respectively, on laser-optimized OM3 and OM4 multimode fibers. It primarily enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber connectors. Cisco QSFP-40G-SR4-S is optimized to guarantee interoperability with any IEEE-compliant 40GBase-SR4 module.

Cisco QSFP-4X10G-LR-S= network transceiver module
