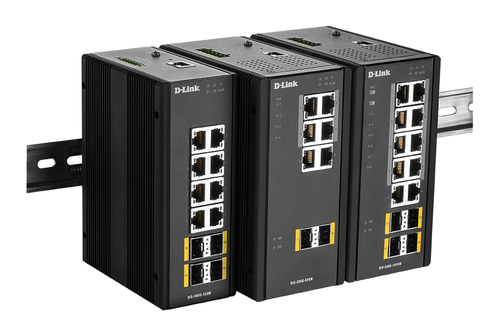

D-Link 12-Port L2 Managed Switch Switch with 8 x 10/100/1000BaseT(X) & 4 x 100/1000BaseSFP

Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-12SW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with SFP slots
Designed with 8 x 100/1000BaseT ports and 4 x 100/1000Base SFP to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 61 x 154 x 109 mm.

ON ORDER

SKU: DIS-300G-12SW

Manufacturer: D-Link D-Link

RRP Price €1,078.16

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic shaping
Yes
System event log
Yes
MIB support
RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Fiber optic connector
LC

Network

Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support
No
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs
1024

Data transmission

MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Security

DHCP features
DHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Authentication type
IEEE 802.1x, RADIUS
Queue scheduling algorithms
Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes

Design

Rack mounting
No
Product colour
Black
LED indicators
LAN, Status
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes
Electromagnetic compatibility
FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6

Performance

Firmware upgradeable
Yes

Power

DC input voltage
12 - 58 V
Power consumption (max)
17 W
Power protection features
Over current, Reverse polarity

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
61 mm
Depth
154 mm
Height
109 mm
Weight
1.09 kg

Packaging data

Package width
195 mm
Package depth
242 mm
Package height
118 mm
Package weight
1.53 kg

Technical details

Shipping (inner) case height
27 cm
Shipping (inner) case width
41 cm
Shipping (inner) case length
60 cm
Shipping (inner) case net weight
15.3 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
346.7 kg
Master (outer) cases per pallet (air)
20 pc(s)
Products per pallet (air)
200 pc(s)
Pallet gross length
120 cm
Pallet gross width
110 cm
Pallet height (air)
148.5 cm
Pallet gross weight (sea)
478.6 kg
Master (outer) cases per pallet (sea)
28 pc(s)
Products per pallet (sea)
280 pc(s)
Pallet height (sea)
2.02 m
Shipping (inner) case gross weight
16.5 kg

Certificates

Certification
IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
