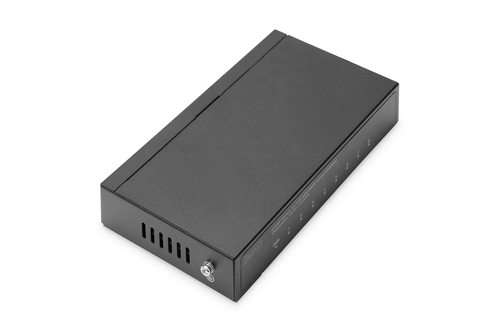

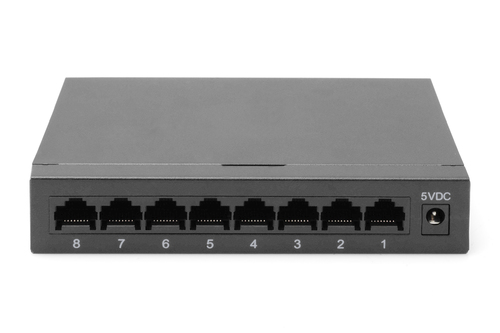

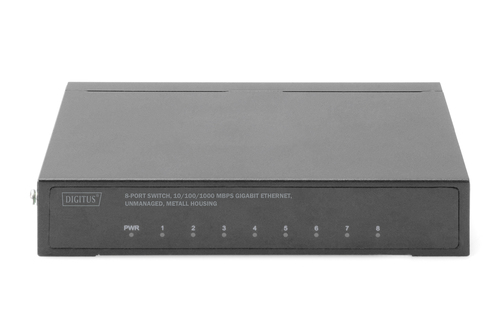

Digitus 8-Port Switch, 10/100/1000 Mbps Gigabit Ethernet, Unmanaged, Metall Housing

8-port 10/100/1000Mbps unmanage Gigabit Ethernet Switch, Auto-Negotiation RJ45 ports, All ports support Auto MDI/MDIX function

- 8 x RJ45 ports 10/100/1000 Mbps
- All ports support 10/100/1000 Mbps bandwidth
- Support desktop and Wall mount installation
- Switching Capacity: 16Gbps
- Network standards: IEEE 802.3i, IEEE 802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3az standards
- Auto-negotiation / Auto-MDI/MDI-X
- MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link/activity
- Durable metal enclosure

This is a 8 port 10/100/1000Mbps Ethernet Switch, provides the seamless network connection. All ports support Auto MDI/MDIX function ,with 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. The Switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000Mbps network.

The switch is easy to install and use. It is suitable for expanding your home or office network. The LED on the front panel can dynamically display the operation status of the network.

ON ORDER

SKU: DN-80066

Manufacturer: Digitus Digitus

RRP Price €38.78

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
VLAN support
No

Data transmission

Switching capacity
16 Gbit/s
Forwarding rate
11.9 Mpps
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
1.5 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, Power
Vandal-proof
No
Suitable for outdoor use
No

Performance

Fanless
Yes

Power

Power source
AC/DC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
5 V
Input current
1 A
Power consumption (typical)
5 W
Power consumption (max)
3.1 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
140 mm
Depth
76 mm
Height
28 mm
Weight
435 g

Packaging content

Quick start guide
Yes

Packaging data

Package width
163 mm
Package depth
122 mm
Package height
94 mm
Package volume
1869.28 cm³
Package weight
510 g

Logistics data

Country of origin
China

Accessories
