Digitus Industrial 8 + 4 10G uplink port L3 managed Gigabit Ethernet PoE switch

The DN-651161 is a high-performance industrial PoE switch that meets the highest demands in terms of performance, reliability and flexibility.

- Data control: Support for 802.3X full-duplex flow control, support for network storm suppression
- Redundant network: support for STP/RSTP/MSTP, support for ERPS (self-healing time <20ms)
- Supports PoE according to standardIEEE802.3af/at (up to 30W)
- Multicast management: Support for IGMP Snooping V1/V2/V3
- Redundancy backup: supports the virtual route redundancy protocol VRRP
- VLAN: Support of IEEE 802.1Q VLAN, effective isolation of the broadcast domain
- Link aggregation: Supports static/dynamic link aggregation, offers perfect bandwidth utilization
- QOS: Support of COS\DSCP, 4 queues, support of WRR\SP scheduling mode
- Security management: support for ACL access control lists, support for 802.1X
- Management function: support for WEB, CLI and SNMP management methods
- Monitoring and maintenance: port mirroring support, interface status monitoring, protocol management

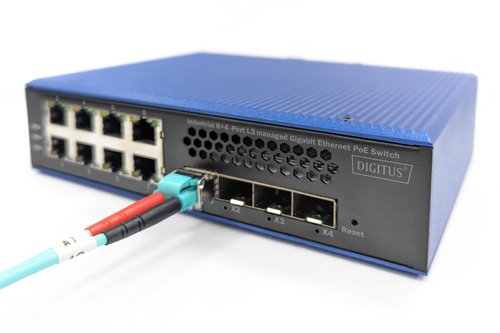

"The DN-651161 is a high performance L3 8 port RJ45 + 4 port SFP+ (10G) uplink industrial switch specifically designed to meet the needs of demanding network environments. With an impressive backplane data transfer rate of 1.2 terabits per second (1.2 Tbps), it enables lightning-fast and reliable communication between your devices. Whether you are in the manufacturing industry, industrial IoT or critical infrastructure, the DN-651161 is the perfect solution for stable and efficient network connectivity.

ON ORDER

SKU: DN-651161

Manufacturer: Digitus Digitus

RRP Price €517.86

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP+ modules quantity
4
Number of management ports
1 pc(s)
Fiber optic connector
SFP+

Network

Networking standards
IEEE 802.3af
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet Ring Protection Switching (ERPS)
Yes
VLAN support
No

Data transmission

Switching capacity
1 Gbit/s
MAC address table
32000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10240

Security

DHCP features
DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Loop protection
Yes

Multicast features

Multicast support
Yes

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes
Routing protocols
OSPF, OSPFv3, RIPng, VRRP

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP40

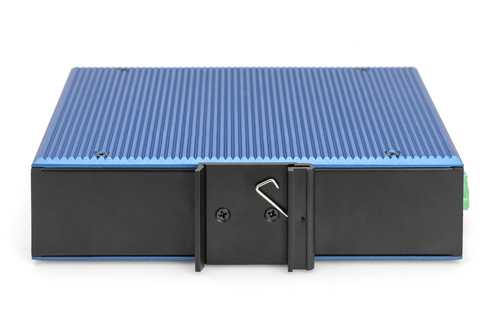

DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Firmware upgradeable
Yes
Mean time between failures (MTBF)
300000 h

Power

Power source
DC/PoE
Power supply included
Yes
Redundant power supply (RPS) support
Yes
DC input voltage
12 - 48 V
Power consumption (typical)
18 W
Surge protection
Yes
Surge protection voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
175.6 mm
Depth
135 mm
Height
45.5 mm
Weight
800 g

Packaging content

Quick start guide
Yes

Packaging data

Package width
186 mm
Package depth
72.5 mm
Package height
208 mm
Package volume
2804.88 cm³
Package weight
575 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
