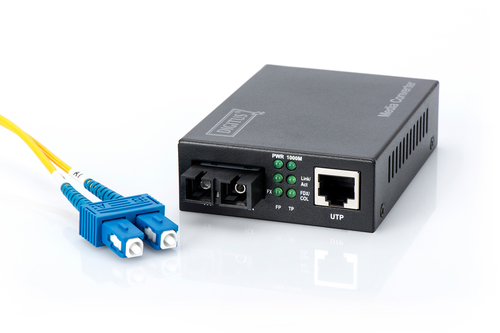

Digitus Gigabit Media Converter, RJ45 / SC

The perfect converter solution for various fiber media

- Distance up to 20km
- Sends data in high quality and additionally provides excellent reliability
- A quick delivery is guaranteed in the gigabit range

The media converters from DIGITUS® are the ideal solution for the migration of copper and fiber network signals. From now on, you are able to access the fiber technology and transfer network signals over several kilometers without renewing your whole network infrastructure. The huge variety of products fulfil your individual needs. The intiutive operation guarantees a quick and easy installation.

23 IN STOCK

SKU: DN-82121-1

Manufacturer: Digitus Digitus

RRP Price €81.27

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
1000Base-TX, 100Base-TX
Converter output interface
1000Base-LX
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half

Performance

Maximum transfer distance
20000 m
Wavelength
1310 nm
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Tx power (min)
-12 dBmW
Tx power (max)
-6 dBmW
Rx power (min)
-21 dBmW
Buffer size
2048 KB

Features

Internal
No

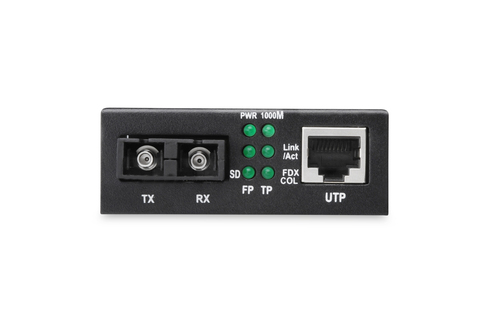

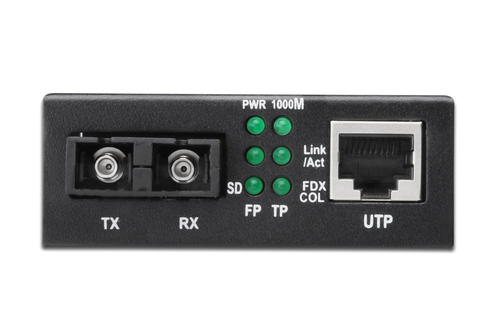

LED indicators
Activity, Link, Status
Product colour
Black

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SC

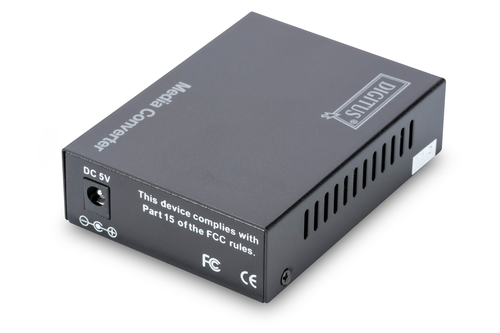

DC-in jack
Yes

Power

Input voltage
5 V
Power over Ethernet (PoE)
No
External power adapter
Yes

Weight & dimensions

Width
70 mm
Depth
95 mm
Height
26 mm
Weight
200 g

Operational conditions

Operating temperature (T-T)
0 - 60 °C

Packaging data

Package width
216 mm
Package depth
60 mm
Package volume
2086.56 cm³
Package weight
450 g

Certificates

Certification
FCC, CE.

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
Harmonized System (HS) code
85176990

Other features

Transmission distance (max)
10 km

Accessories
