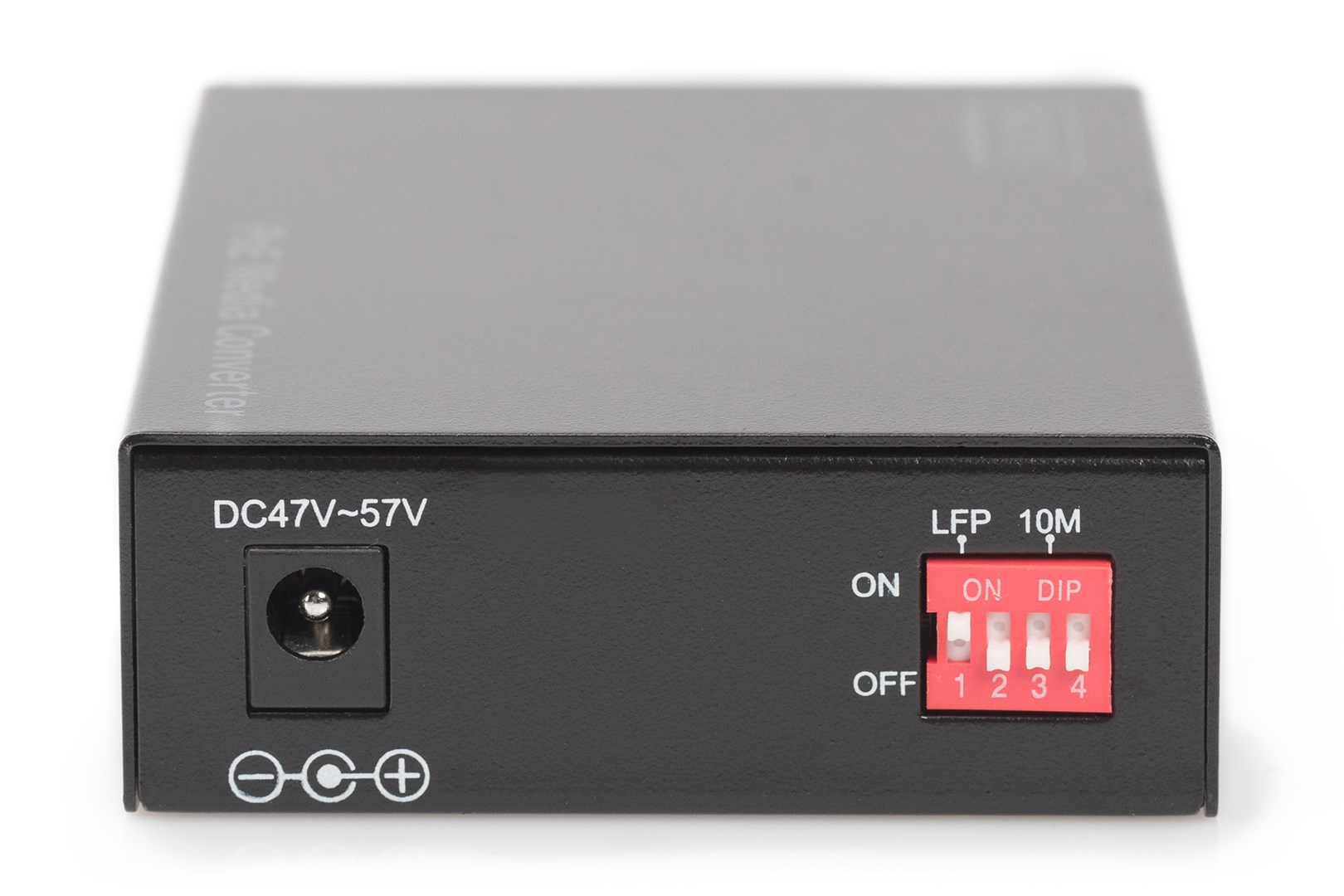

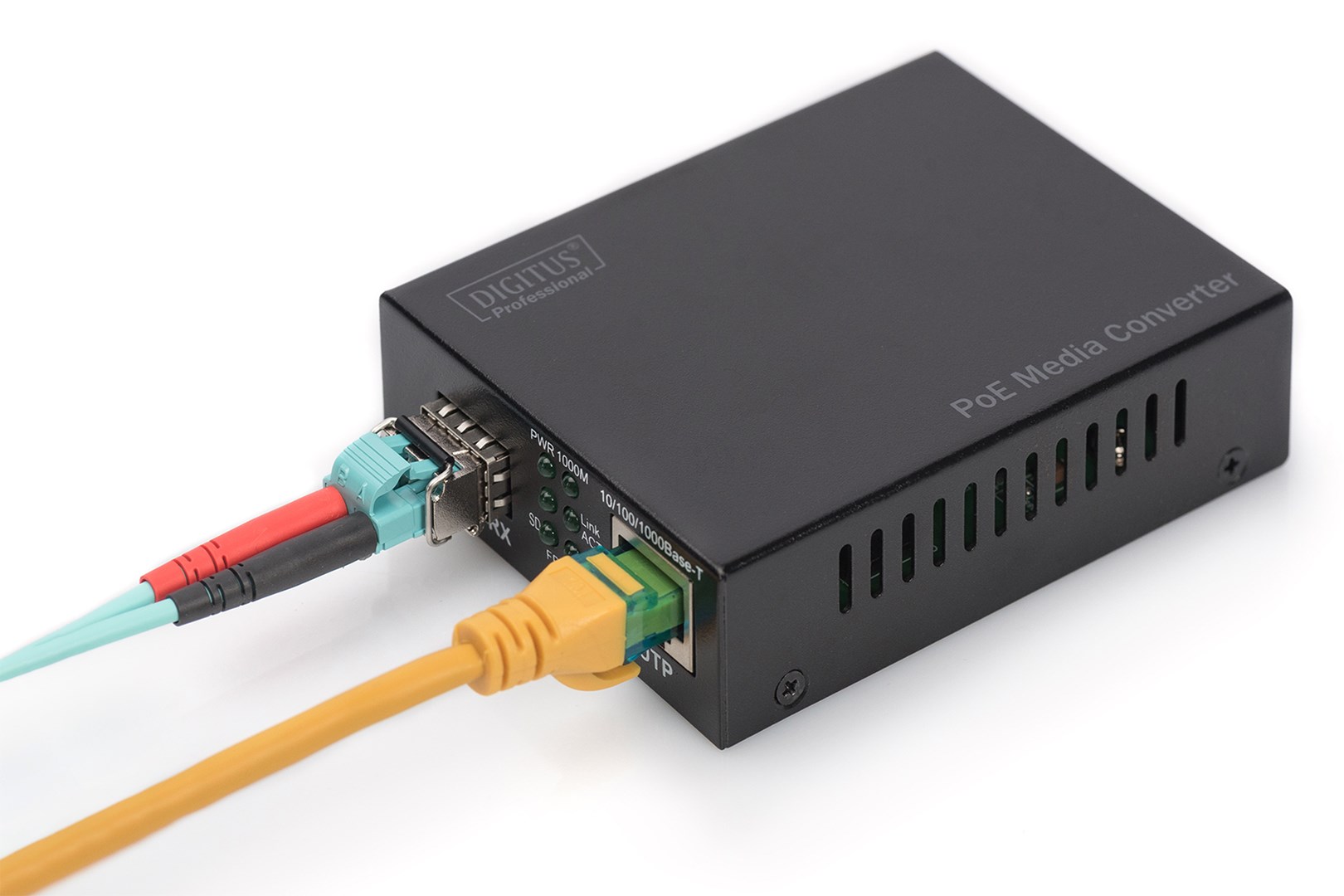

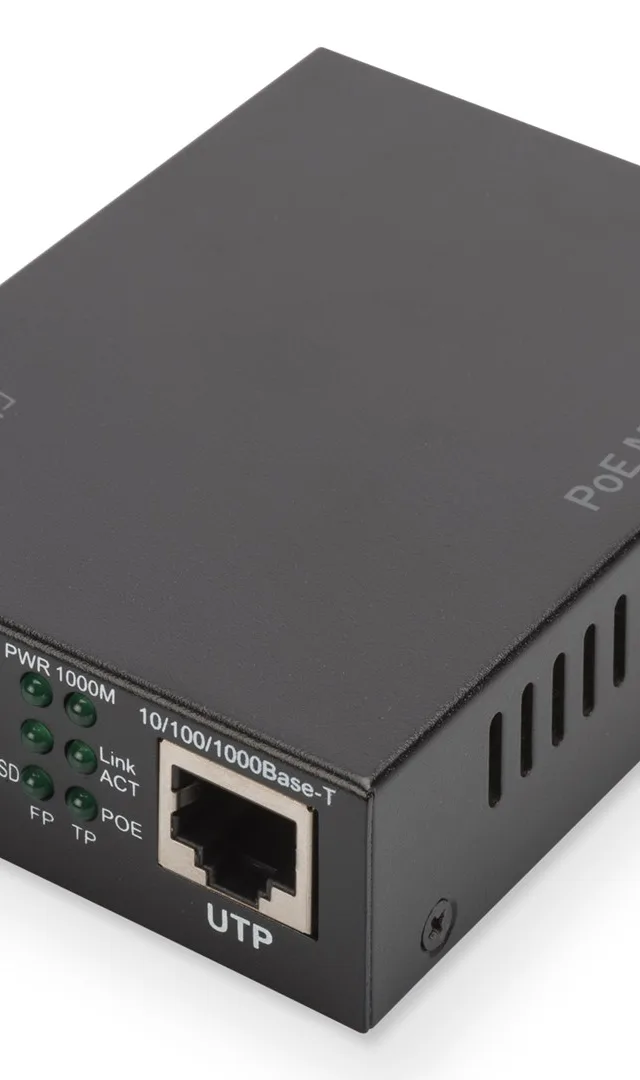

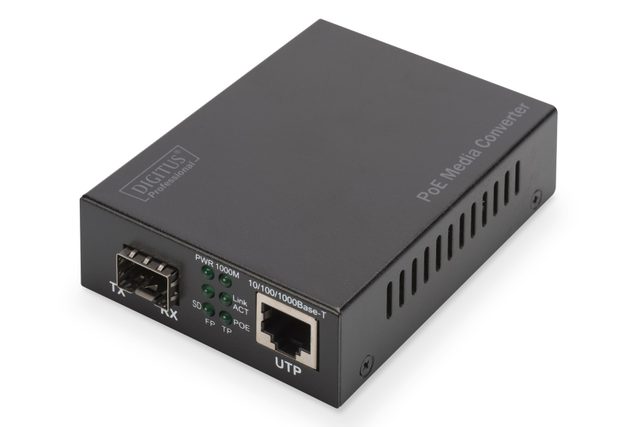

Digitus Gigabit PoE media converter, RJ45 / SFP, PSE

The perfect converter solution for optical data transmission

- PoE power supplier, PSE
- Sends data with high quality and additionally offers the highest level of failure safety
- A fast transfer in the gigabit range is guaranteed
- Upmarket SFP module with a range of up to 80 km

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

5 IN STOCK

SKU: DN-82140

Manufacturer: Digitus Digitus

RRP Price €82.62

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
10Base-T, 100Base-T, 1000Base-T
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Data transfer rate
1000 Mbit/s
Auto MDI/MDI-X
Yes

Performance

Maximum transfer distance
80000 m
Mean time between failures (MTBF)
500000 h

Features

Internal
No

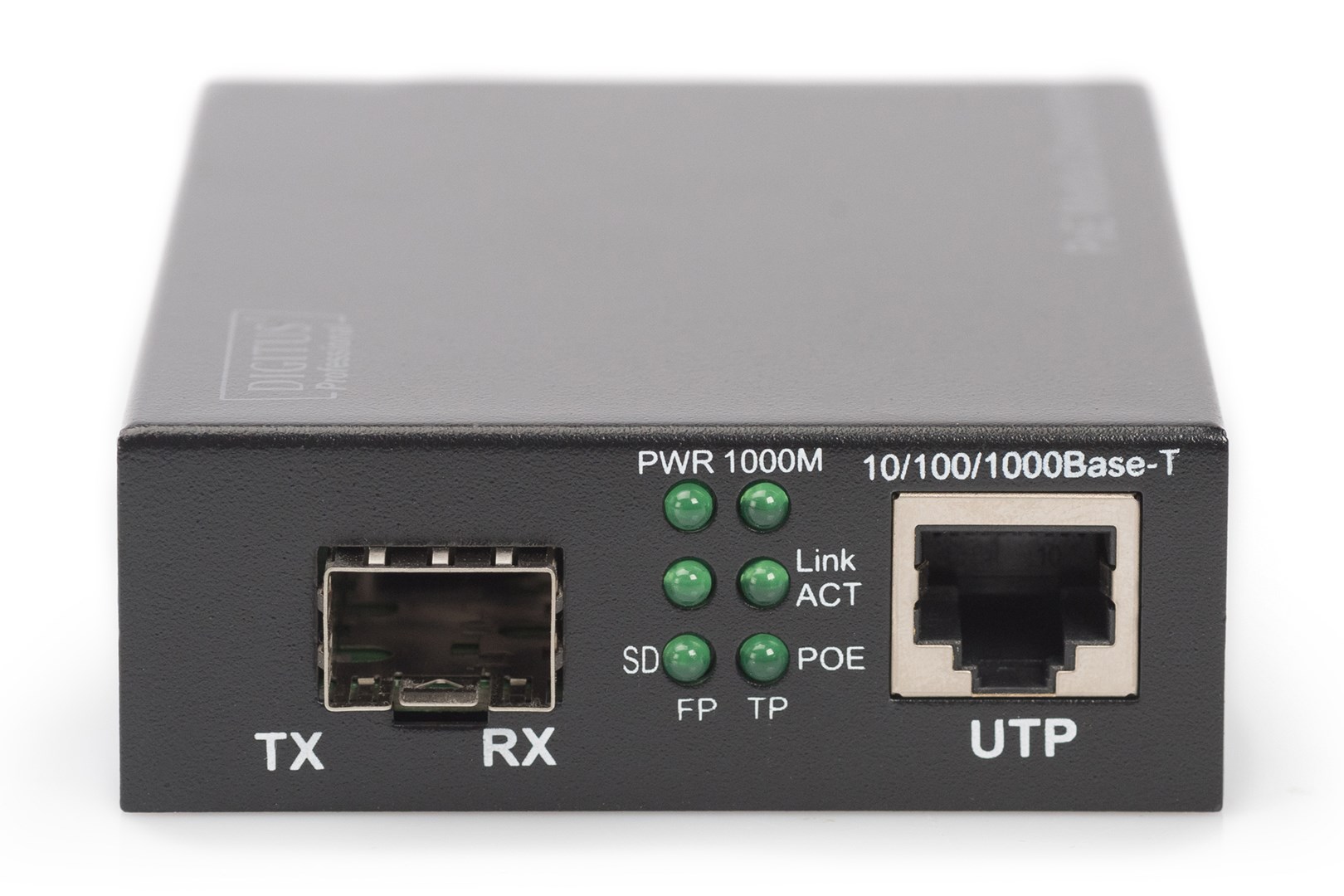

LED indicators
Activity, Link, Power
Product colour
Black

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP
Power over Ethernet (PoE) ports quantity
1

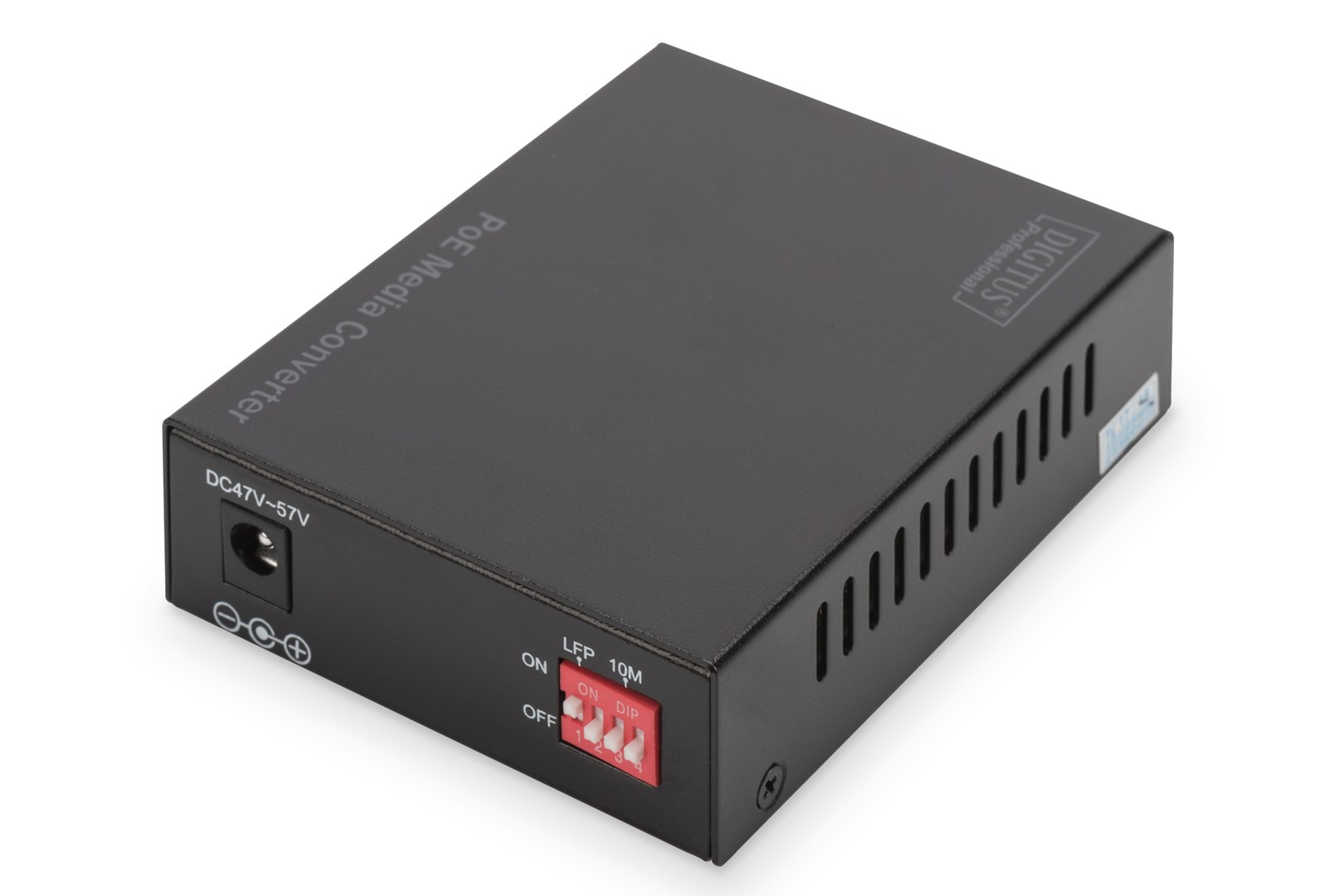

DC-in jack
Yes

Power

Input voltage
5 V
Output voltage
48 - 52 V
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W
External power adapter
Yes

Weight & dimensions

Width
71 mm
Depth
95 mm
Height
26 mm

Operational conditions

Operating temperature (T-T)
-20 - 65 °C
Storage temperature (T-T)
-40 - 85 °C

Packaging content

AC adapter included
Yes
Quick installation guide
Yes

Packaging data

Package width
130 mm
Package depth
240 mm
Package height
60 mm
Package volume
1872 cm³
Package weight
800 g

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
Harmonized System (HS) code
85176990
Master (outer) case width
410 mm
Master (outer) case length
570 mm
Master (outer) case height
280 mm
Master (outer) case gross weight
8 kg
Master (outer) case volume
65436 cm³
Products per master (outer) case
110 pc(s)
