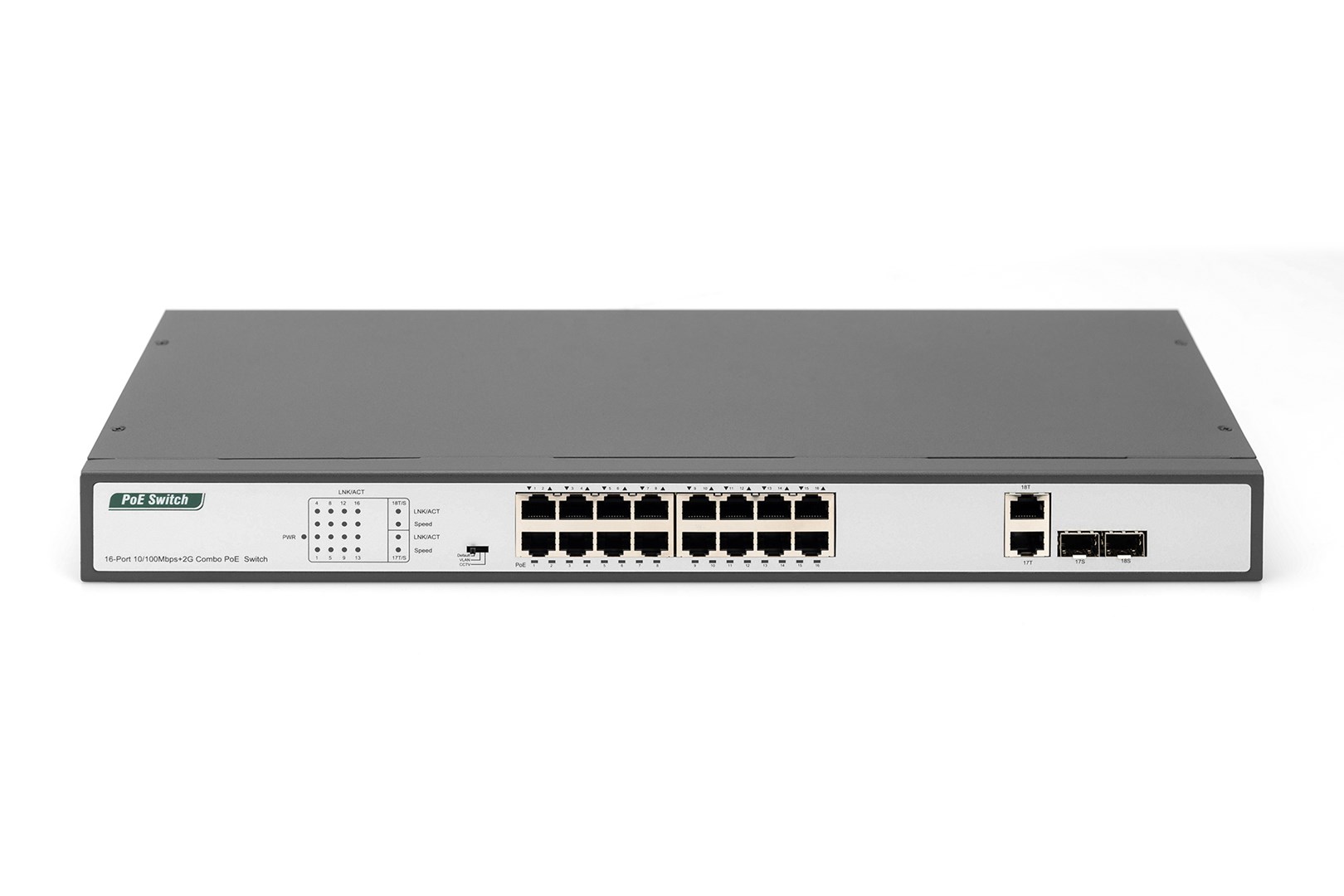

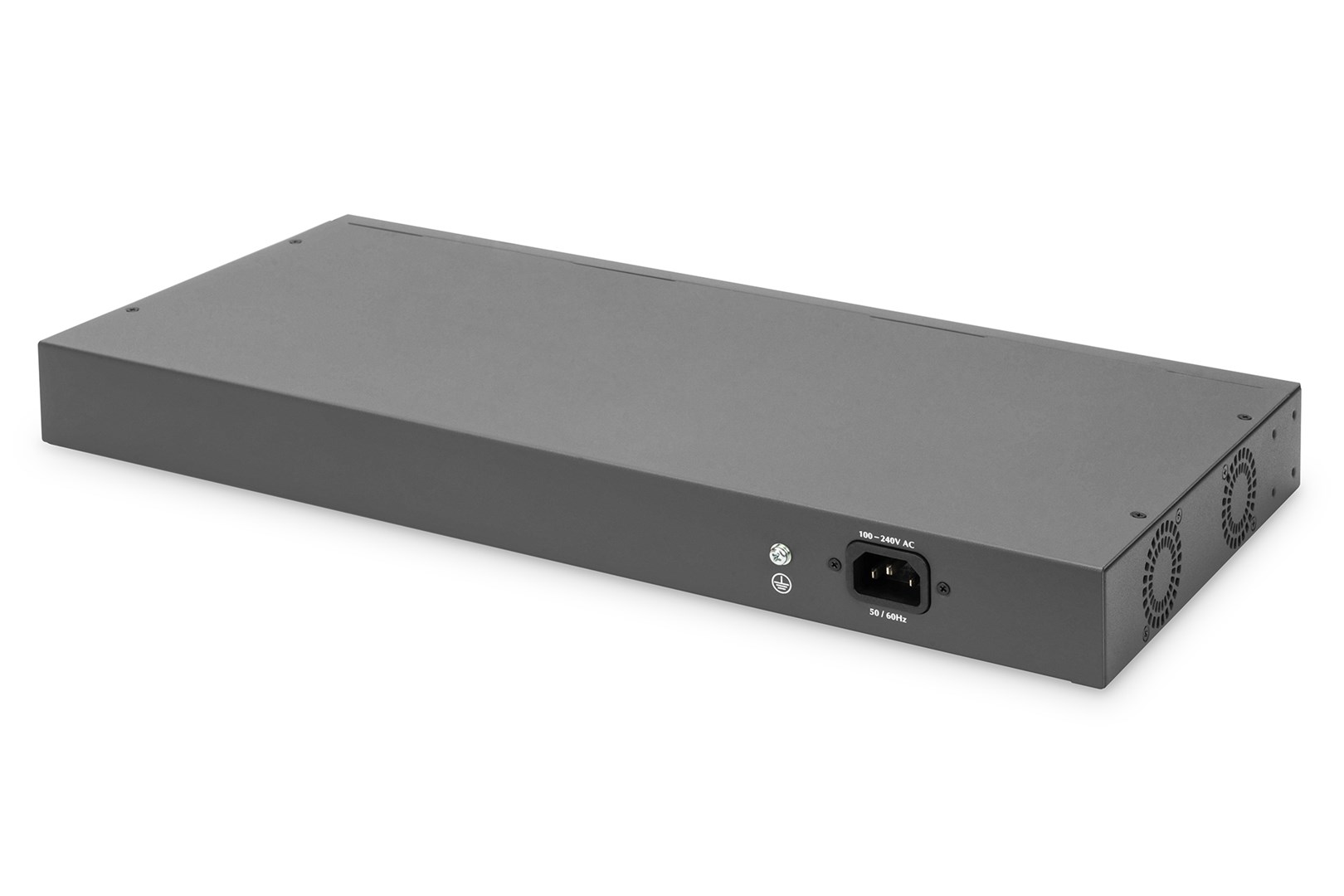

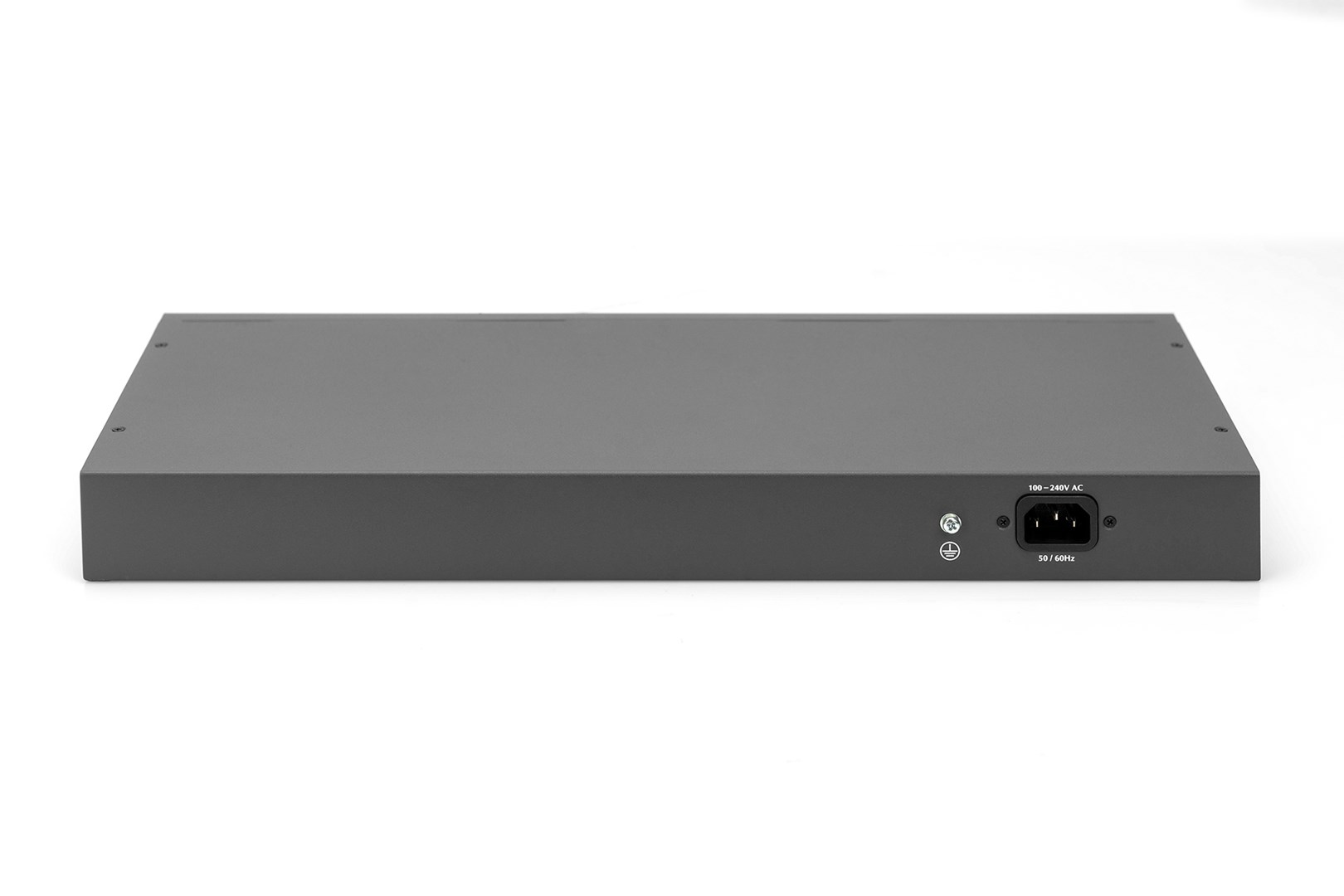

Digitus 16 Port Fast Ethernet PoE Switch, 19 Inch, Unmanaged, 2 Uplinks

Digitus 16 Port Fast Ethernet PoE Switch, 19 Inch, Unmanaged, 2 Uplinks

Name: Digitus 16 Port Fast Ethernet PoE Switch, 19 Inch, Unmanaged, 2 Uplinks
Brand: Digitus
SKU: DN-95342-1
Price: 272.46 EUR
Availability: InStock

Integrated Power over Ethernet (PoE) for small and medium network environments

- 16-port 10/100Base-TX with PoE support 2-port Combo Gigabit TP/SFP Uplink Maximum PoE power of 250 watts
- Support one-click VLAN & CCTV mode
- Support PD-ALIVE function

The DIGITUS® Fast Ethernet PoE switches are designed for medium to large network systems. The PoE function and the 19" size enable an uncomplicated integration into your network. The switches are a great choice to improve the performance and efficiency of your network.

1 IN STOCK

SKU: DN-95342-1

Manufacturer: Digitus Digitus

RRP Price €272.46

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Fast Ethernet (copper) ports quantity

Combo SFP ports quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Full duplex

Yes

Half duplex

Yes

Auto MDI/MDI-X

Yes

Head-of-line (HOL) blocking

Yes

VLAN support

Yes

Data transmission

Switching capacity

7.2 Gbit/s

MAC address table

8000 entries

Store-and-forward

Yes

Design

Rack mounting

Yes

Stackable

Form factor

Product colour

Black, Silver

LED indicators

Activity, Link, PoE, Power

Number of fans

2 fan(s)

Vandal-proof

Suitable for outdoor use

Performance

Mean time between failures (MTBF)

50000 h

Power

Power source

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE) ports quantity

Power over Ethernet (PoE) voltage

55 V

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

250 W

Other features

Power supply

270 W

Ethernet interface type

Fast Ethernet

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Packaging content

Cables included

Quick start guide

Yes

Rack mount kit

Yes

Packaging data

Package width

480 mm

Package depth

290 mm

Package height

83 mm

Package volume

11553.6 cm³

Package weight

3.61 kg

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

3.61 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
