Digitus 8-Port Gigabit PoE Networkswitch, Desktop, unmanaged, 2 Uplink Ports, SFP, 180 W, af/at/bt

Digitus 8-Port Gigabit PoE Networkswitch, Desktop, unmanaged, 2 Uplink Ports, SFP, 180 W, af/at/bt

Name: Digitus 8-Port Gigabit PoE Networkswitch, Desktop, unmanaged, 2 Uplink Ports, SFP, 180 W, af/at/bt
Brand: Digitus
SKU: DN-95140
Price: 310.39 EUR
Availability: InStock

8 Port Gigabit PoE++Switch with 2 x SFP Uplink Ports - supports up to 2 ports with full IEEE 802.03bt performance + total of 4 IEEE 802.3 at/af ports.

- Supports the PoE standards IEEE 802.3af, IEEE 802.3at & IEEE 802.3bt
- Total PoE budget of 180 W - supports PoE++
- 6 x RJ45 PoE Ports (2 x 90 W, 4 x 30 W)
- 2 x RJ45 Ports - usable as uplink or for LAN devices
- 2 x SFP Ports - for SFP modules (fiber glass/copper)
- Automatic detection of PoE devices - can also be used for non-PoE devices
- LED status displays on front panel
- Supports legacy BT, BT and UPoE modes

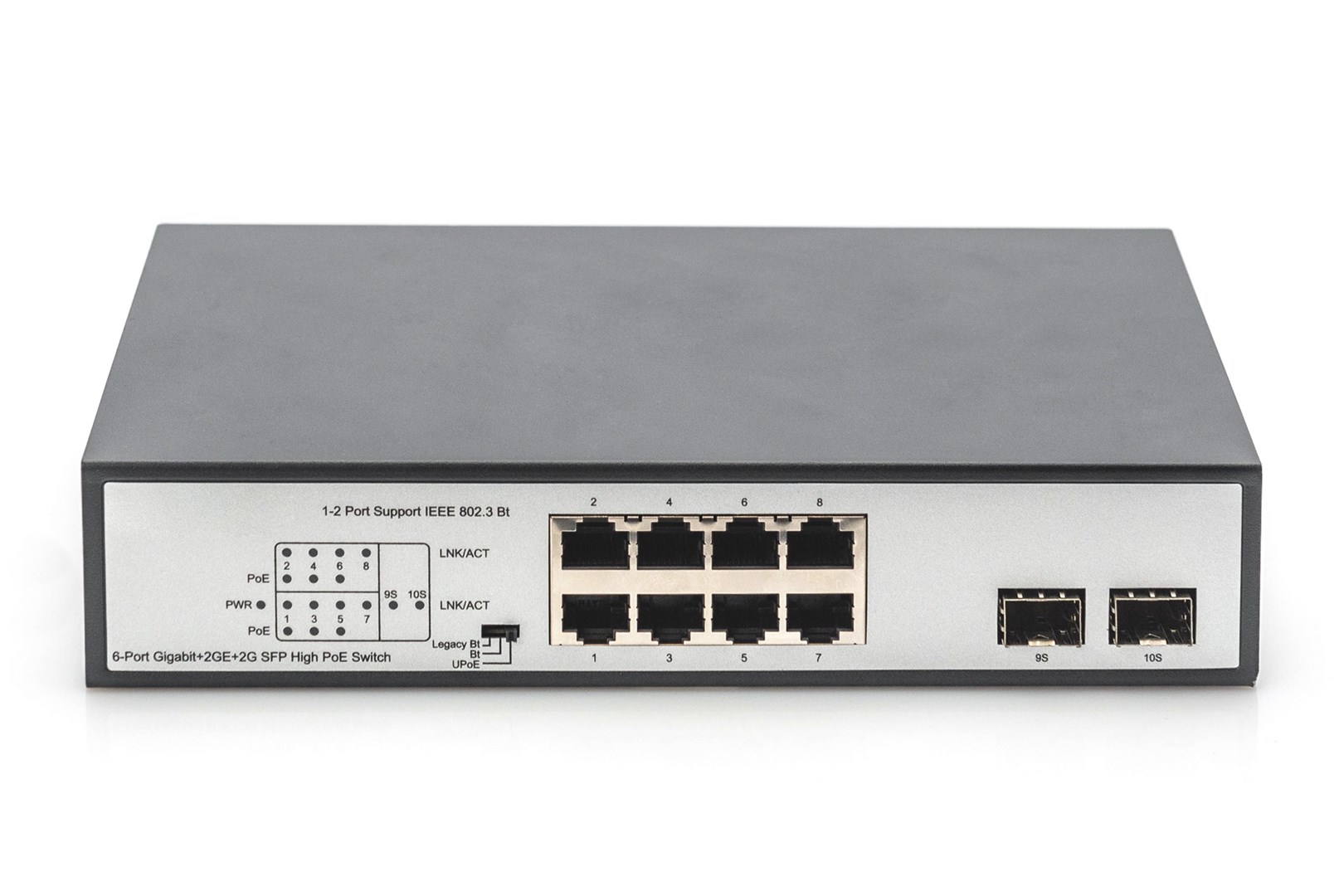

The DIGITUS® 8 Port Gigabit PoE Switch provides you with a multifunctional switch for many application scenarios. You can use all 8 ports for conventional network devices without a PoE supply. You can use six ports for PoE-cable network devices, two of those ports even with 90 watt (IEEE 802.3bt) per port. The remaining 4 ports support IEEE 802.3at/af devices up to 30 watt. Two SFP uplink ports are also integrated, which you can fit with SFP modules for fiber optic or copper technology. The gigabit standards continue to be supported with data transfer rates of up to 1000 Mbps, auto MDI/MDIX and auto negotiation for the RJ45 ports. The Switch also has 3 modes: Legacy BT, BT and UPoE that can be adjusted on the front side with a DIP Switch. You can implement conventional network applications with this Gigabit PoE Switch and also supply high-performance network devices, such as POS systems, access control systems, a surveillance and parking-lot system with electricity. A total budget of 180 W is provided here for PoE devices.

6 IN STOCK

SKU: DN-95140

Manufacturer: Digitus Digitus

RRP Price €310.39

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Network

Networking standards

IEEE 802.3bt

Auto MDI/MDI-X

Yes

Auto-negotiation

Yes

MAC address auto-learning supported

Yes

MAC address auto-aging supported

Yes

VLAN support

Data transmission

Switching capacity

20 Gbit/s

Forwarding rate

13.39 Mpps

MAC address table

4000 entries

Jumbo frames support

Yes

Jumbo frames

9216

Packet buffer memory

1.5 MB

Design

Product colour

Black, Silver

Wall mountable

Yes

Vandal-proof

Suitable for outdoor use

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

190 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

180 W

Other features

Ethernet interface type

Gigabit Ethernet

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

150 mm

Depth

220 mm

Height

44 mm

Weight

1.34 kg

Packaging content

Cables included

Packaging data

Package width

310 mm

Package depth

200 mm

Package volume

4960 cm³

Package weight

1.88 kg

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Harmonized System (HS) code

85176990

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

1.34 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
