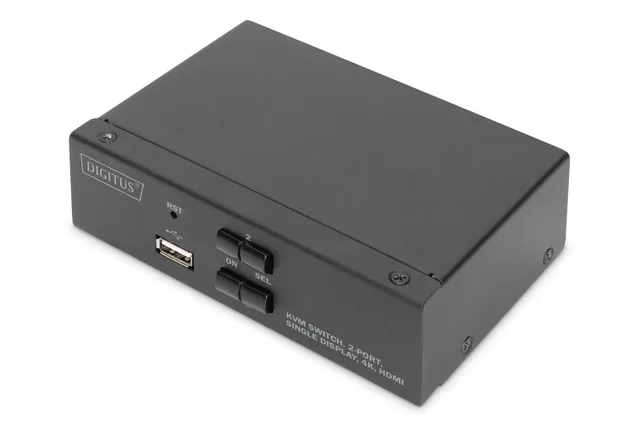

Digitus KVM Switch, 2 Port, Single Display, 4K, HDMI®

Operate 2 PCs using a USB keyboard and mouse combination – switch between two computers by pressing a button

- Use one monitor, a mouse and keyboard to operate two computers with single display
- Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch or hot key on the keyboard

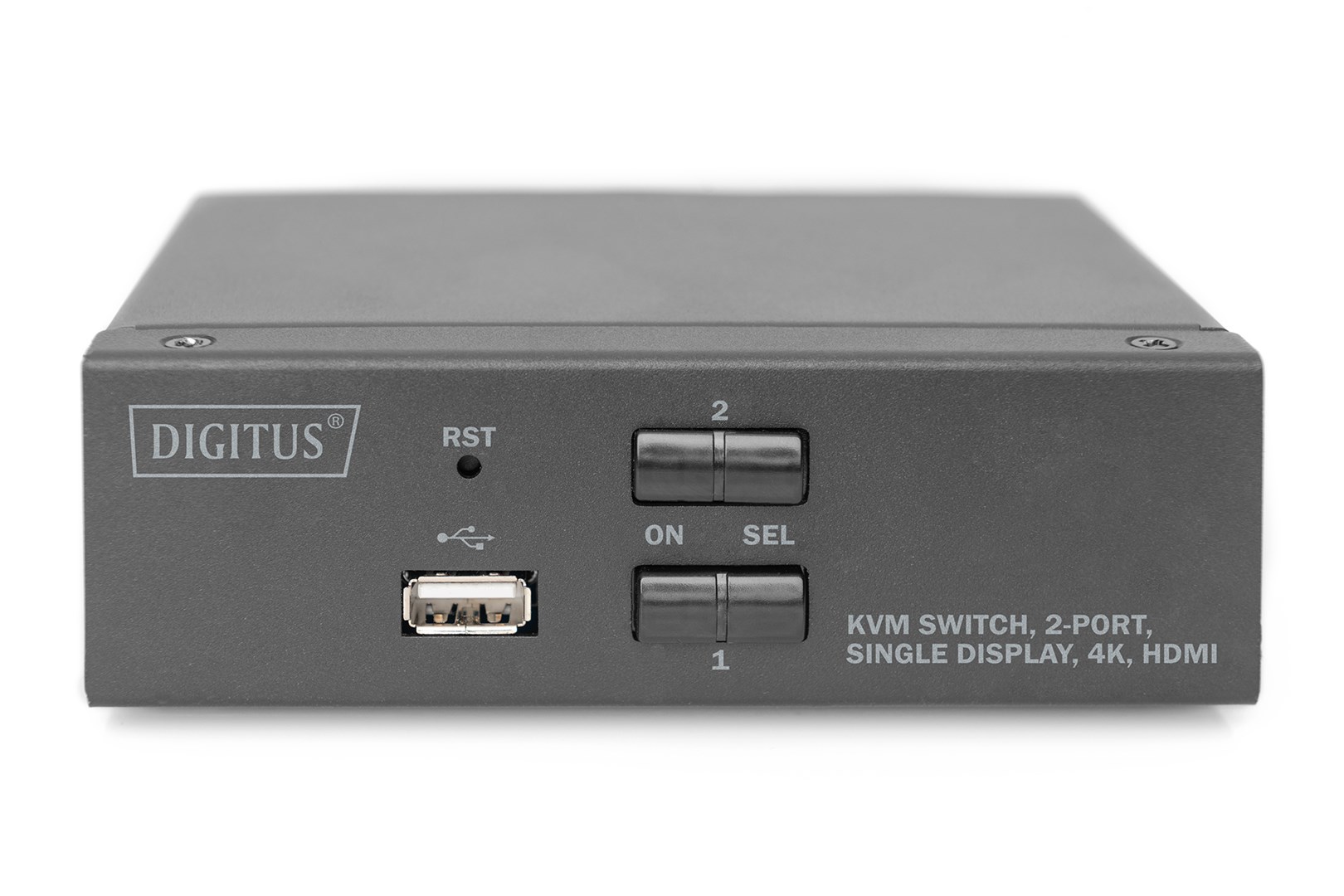

- LED status and functional displays on the front side
- Laborious replugging of connection cables no longer necessary
- Real Plug and Play - no software or driver installation required (BIOS hardware connection)
- Sturdy metal housing

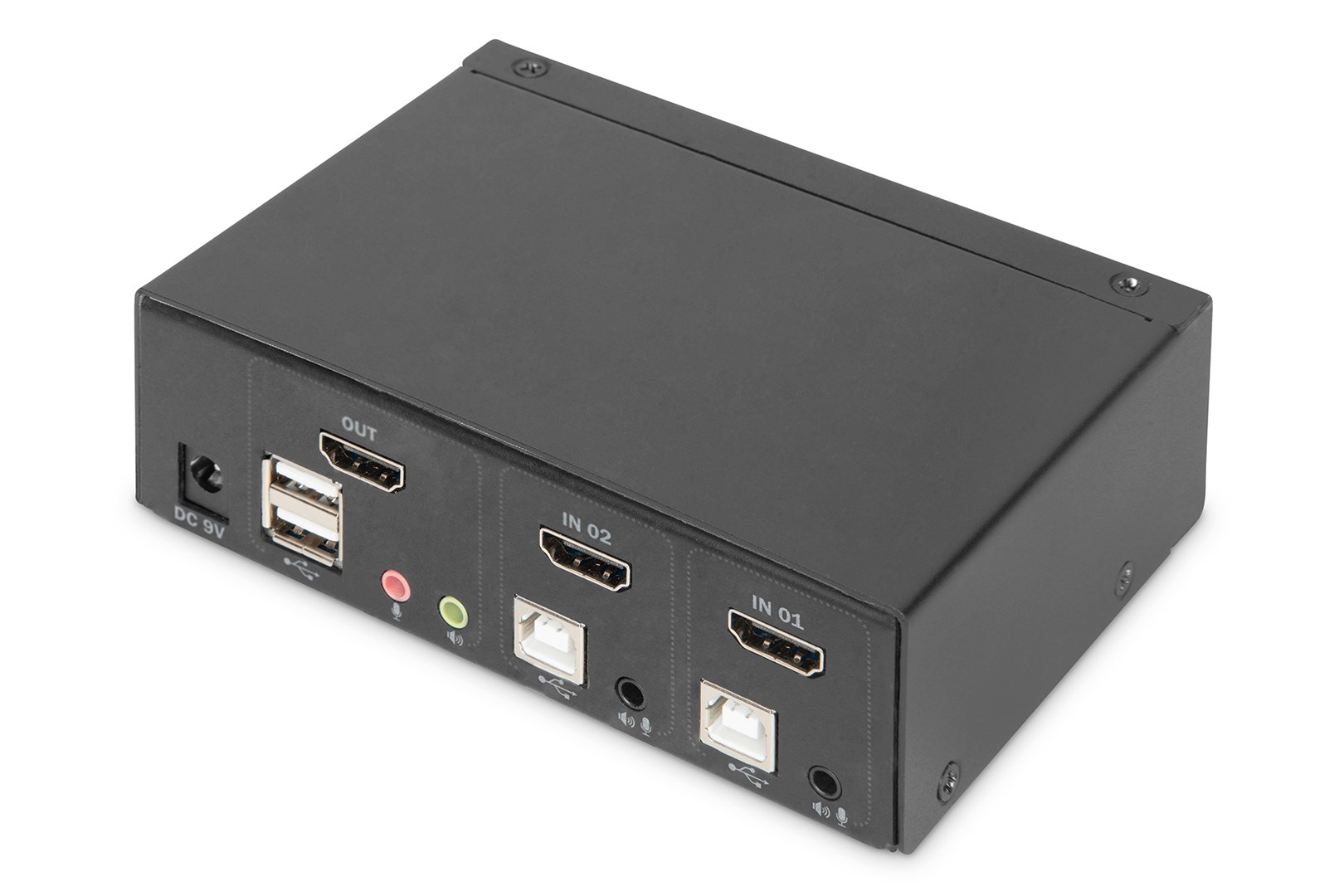

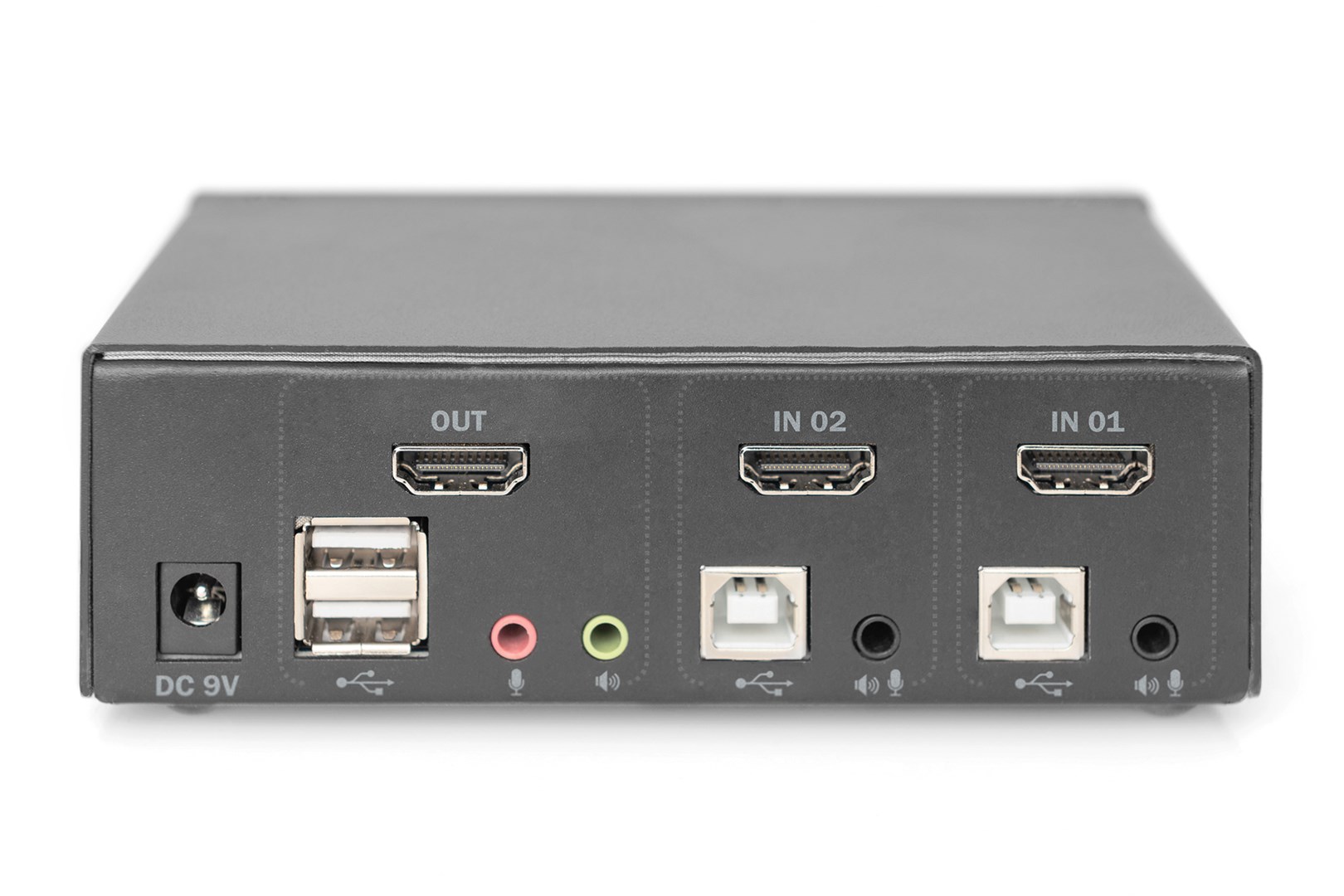

With the DIGITUS® 2-Port KVM Switch for single displays, you can operate two 4K-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output to one monitor is provided via the HDMI® output on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

7 IN STOCK

SKU: DS-12870

Manufacturer: Digitus Digitus

RRP Price €69.10

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
HDMI ports quantity
2
HDMI version
1.4b
Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
1
USB connector type
USB Type-B
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Video bandwidth
30 Hz

Design

Housing material
Metal
LED indicators
Status

Display

Built-in display
No

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
132 mm
Depth
92 mm
Height
44 mm
Weight
465 g

Packaging content

Cables included
KVM
Quick installation guide
Yes

Logistics data

Harmonized System (HS) code
85176200
Country of origin
China

Accessories

License
