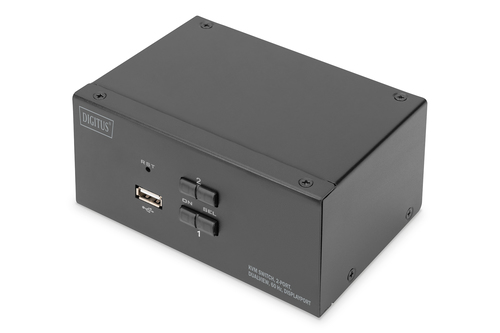

Digitus KVM Switch, 2-Port, Dual Display, 4K, DisplayPort®

Operate 2 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button

- Use two monitors, a mouse and a keyboard to operate 2 computers with dual display
- Supports a maximum UHD resolution of 4K / 60 Hz
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch or hot key on the keyboard

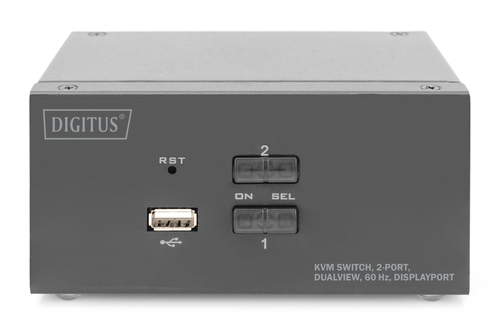

- LED status and functional displays on the front side
- The KVM switch is supplied with power via the USB connection through a connected computer
- Real Plug and Play - no software or driver installation required (BIOS hardware connection)
- Sturdy metal housing

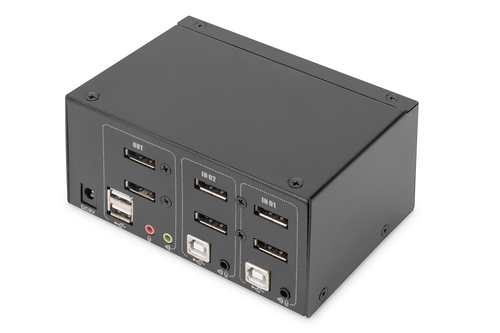

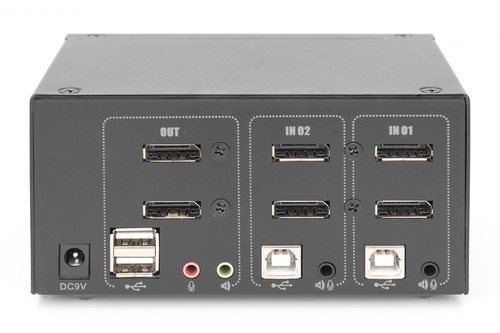

With the DIGITUS® 2-Port KVM Switch for dual displays, you can operate two 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two DisplayPort® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

ON ORDER

SKU: DS-12862

Manufacturer: Digitus Digitus

RRP Price €136.67

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
6
USB 2.0 Type-B ports quantity
2
Console ports
DisplayPort, USB A
USB connector type
USB Type-A
Audio connections
Yes
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Status

Display

Built-in display
No

Power

Power source
DC
Input voltage
9 V

Operational conditions

Operating temperature (T-T)
0 - 80 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
132 mm
Depth
92 mm
Height
66 mm
Weight
580 g

Packaging data

Package width
210 mm
Package depth
210 mm
Package height
120 mm
Package weight
1.82 kg

Packaging content

Cables included
DisplayPort, KVM
Manual
Yes

Logistics data

Country of origin
China
