Tripp Lite NPOE-30W-1G-INT Gigabit PoE+ Midspan Active Injector - IEEE 802.3at/802.3af, 30W, 1 Port, International Power Cords

Adds a PoE Device to Your LAN Without Adding a PoE Switch
Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn’t support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling.

Saves You Time and Money on Unnecessary Equipment Updates
This compact PoE+ injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don’t need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor.

Expands Your PoE Network Up to 100 Meters
The NPOE-30W-1G-INT delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, high voltage and overloads.

Simple Plug-and-Play Installation Has Your Device Connected in Minutes

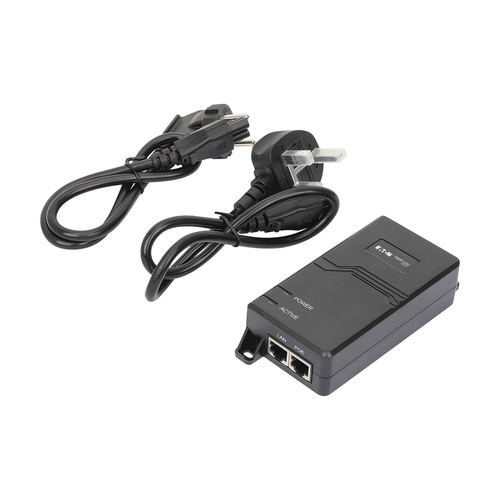

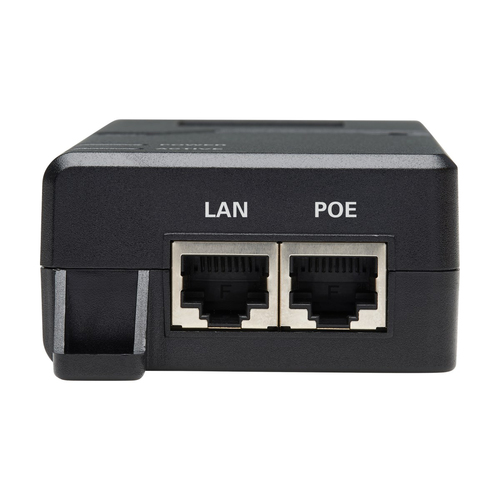

No configuration or software is required to add the NPOE-30W-1G-INT to your LAN. Just connect your switch or network jack to the shielded RJ45 LAN port and your PoE device to the shielded RJ45 POE port using existing Cat5e/6/6a cable. Connect the unit to an outlet using the included power supply with the included UK or European power cords. LEDs indicate the unit is receiving power and is ready to transmit data.

Designed for Installation Almost Anywhere
Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation.

ON ORDER

SKU: NPOE-30W-1G-INT

Manufacturer: Eaton Eaton

RRP Price €55.63

Specifications

Network

Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Cable types supported
Cat5, Cat5e, Cat6, Cat6a

Features

Product colour
Black
LED indicators
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Power

Power over Ethernet (PoE) voltage
30 V
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Input current
0.75 A
AC adapter output voltage
53 V
Power consumption (typical)
30 W

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, WEEE

Sustainability

Sustainability compliance
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating temperature (T-T)
32 - 122 °F
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 80 °C
Storage relative humidity (H-H)
10 - 90%

Weight & dimensions

Weight
250 g

Packaging content

Number of products included
1 pc(s)
AC adapter included
Yes
Power cord included
Yes
Manual
Yes

Packaging data

Package width
94 mm
Package depth
177.8 mm
Package height
88.9 mm
Package weight
540 g
Package type
Box

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332272017
Harmonized System (HS) code
8504.40.9550
Master (outer) case width
368.3 mm
Master (outer) case length
480.1 mm
Master (outer) case height
294.6 mm
Master (outer) case gross weight
16.2 kg
Products per master (outer) case
30 pc(s)
Country of origin
China
