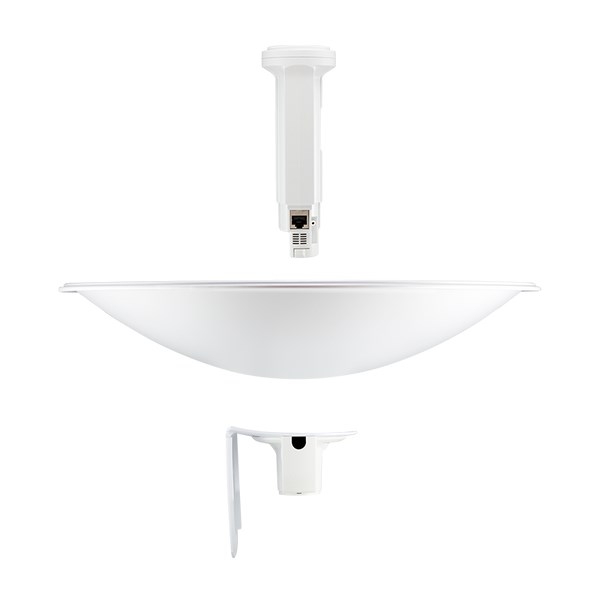

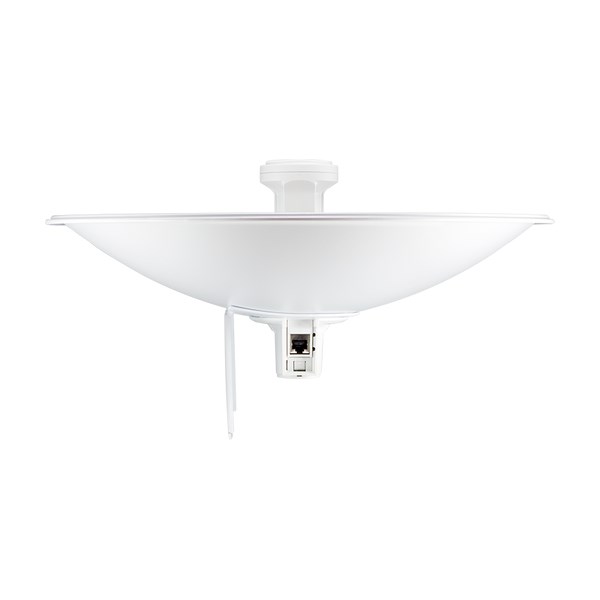

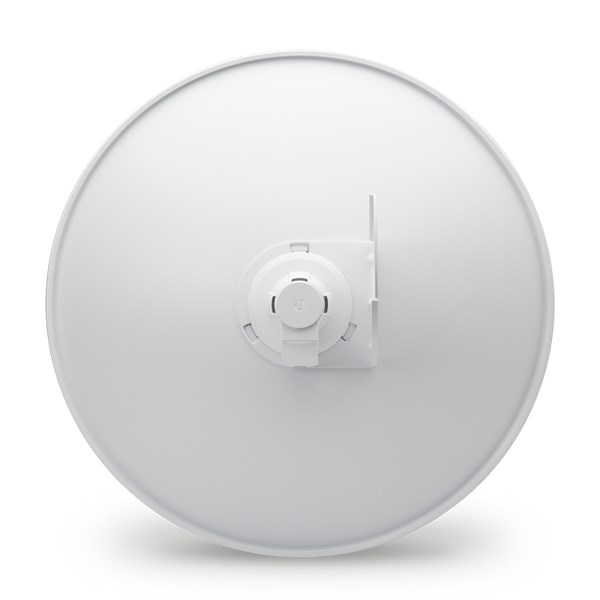

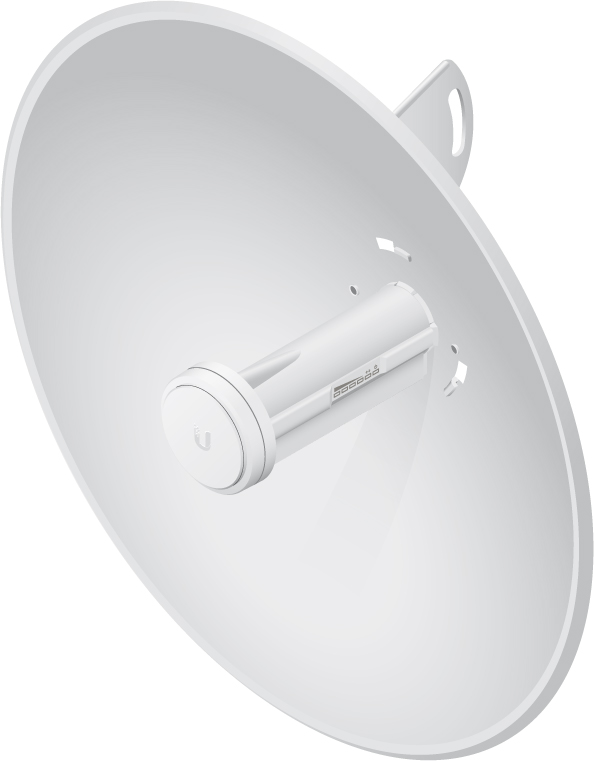

Ubiquiti PBE-M5-400 bridge/repeater Network bridge 1000 Mbit/s White

2.4 GHz 3dBi/5 GHz 5dBi Low Profile Antenna, White, RP-TNC Antennas

This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.

Cisco MA-ANT-3-F5 network antenna RP-TNC 11.2 dBi Antennas

The Narrow Patch antenna is ideal for high ceiling (25 ft+) aesthetic consensus installations in high density applications and where APs are covering high density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Narrow Patch antenna can be purchased with 5 or 6 connectors.

Ubiquiti HORN-5-30 network antenna Horn antenna 19 dBi Antennas

5 GHz Beamwidth Horn AntennaWith a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.Modular DesignThe isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.Asymmetrical horn antennas60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

2.4 GHz 3dBi/5 GHz 5dBi Low Profile Antenna, White, RP-TNC Antennas

This document describes the Cisco Aironet AIR-ANT2535SDW-R and AIR-ANT2535SDW-RS antennas and provides electrical specifications and mounting instructions. The antenna operates over the 2.4 GHz and 5 GHz Wi-Fi bands and is designed for indoor use with the Cisco Aironet 1600, 2600, 3600, 3700, and Cisco Catalyst 9120AXE series access points. The antenna utilizes an omnidirectional radiation pattern to achieve a broad coverage area.The AIR-ANT2535SDW-RS antenna includes circuitry to enable self-identification of the antenna by the Cisco access points. The antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the wireless controller.

2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC Antennas

The antenna has an articulated base that can be rotated 360 degrees at the connection point and from 0 to 90 degrees at its joint.

Mikrotik RBLHG-5nD network antenna 24.5 dBi Antennas

LHG 5The Light Head Grid (LHG) is a compact and light 5GHz 802.11 a/n wireless devicewith an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. Itis perfect for point to point links or for use as a CPE at longer distances and supportsNv2 TDMA protocol.The grid design ensures protection against wind, and the fact that the antennaelement is built into the wireless unit means no loss on cables.The device comes disassembled for compact shipping, but is very easy to assemble and includes a simple to use grounding attachment point. The package also contains a small adapter for tilting the antenna five degrees from the original position.

Poynting MBK-1 Antenna mount Antennas

Poynting SWIRL-4-CPE network antenna Omni-directional antenna SMA 6 dBi Antennas

The SWIRL-4-02 (CPE) builds upon the antenna array of the SWIRL-4-01 by adding an aluminum base, known as the SWIRL-BASE. The SWIRL-BASE serves as an enclosure for 5G routers, transforming the SWIRL-4-02 into a Customer Premises Equipment (CPE) device, where the router and antennas are combined into a single unit.Additional Benefits1. Simplified Deployment: SWIRL-4-02 provides an all-in-one solution, simplifying the installation process by housing both the antenna array and the 5G router(s) in a single unit. This reduces setup complexity.2. Optimized Performance: Housing the router within the same enclosure as the antennas minimizes cable loss and improves signal integrity. This leads to better overall performance, especially in challenging environments where maintaining a stable connection is crucial.3. Router Housing: The SWIRL-BASE can accommodate router sizes of 231 x 193 x 50 mm / 9.094 x 7.60 x 1.97 inch or 293.5 x 148.5 x 50 mm / 11.56 x 5.85 x 1.97 inch.4. Compact Design: SWIRL-4-02 features a compact design with dimensions of 382 mm / 15.039 inch in diameter and 224 mm / 8.82 inch in height.

Poynting OMNI-402 network antenna Antennas

The OMNI-402 is an ultra-wide band antenna, which covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies, while providing 2×2 MIMO capability from its vertically separated radiating elements, all in the same radome. The antenna design allows Poynting to have superior pattern control over the entire frequency range making the OMNI-402 a true high performance omni-directional MIMO antenna, suitable for marine and coastal applications. Usable in all parts of the world, the OMNI-402 guarantees signal reception almost everywhere. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a unique (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency getting more and more popular in various regions and countries! download pdf
