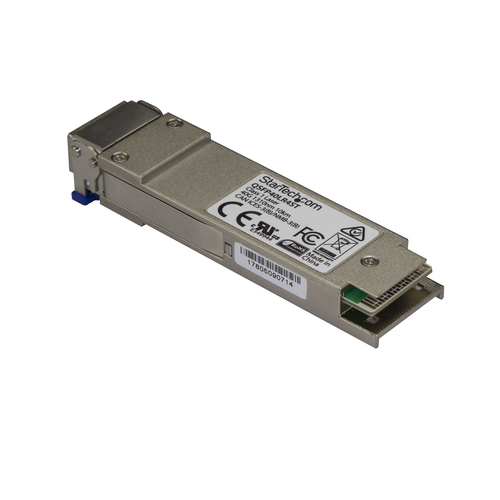

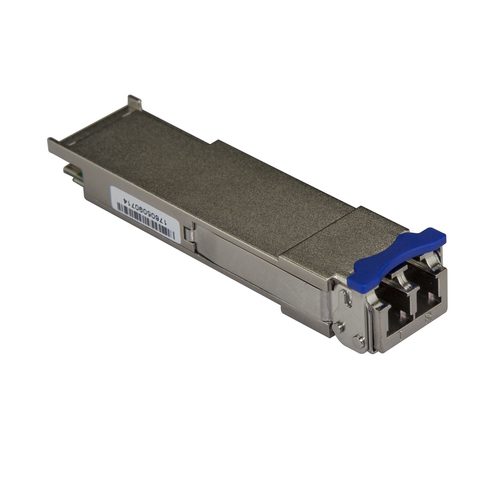

StarTech.com MSA Compliant QSFP+ Transceiver Module - 40GBASE-LR4~MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM

StarTech.com MSA Compliant QSFP+ Transceiver Module - 40GBASE-LR4~MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - LC 10km - 1270nm to 1330nm - DDM

Name: StarTech.com MSA Compliant QSFP+ Transceiver Module - 40GBASE-LR4~MSA Uncoded QSFP+ Module - 40GBASE-LR4 - 40GbE Single Mode Fiber (SMF) Optic Transce...
Brand: StarTech.com
SKU: QSFP40LR4ST
Price: 2226.71 EUR
Availability: OutOfStock

40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The QSFP40LR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-LR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 40 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• DDM: Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: QSFP40LR4ST

Manufacturer: StarTech.com

RRP Price €2,226.71

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Fiber optic connector

SFP transceiver standard

LR4

Maximum transfer distance

10000 m

Tx wavelength (min)

1270 nm

Tx wavelength (max)

1330 nm

Networking standards

IEEE 802.3ba

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Housing material

Aluminium

Hot-Plug support

Yes

Mean time between failures (MTBF)

1489426 h

Power

Power consumption (typical)

2.5 W

Certificates

Compliance certificates

RoHS

Certification

CE, FCC, UR, REACH

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

18.4 mm

Depth

72 mm

Height

13 mm

Weight

40 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

117 mm

Package height

32 mm

Package weight

76 g

Logistics data

Master (outer) case width

250 mm

Master (outer) case length

300 mm

Harmonized System (HS) code

85369010

Master (outer) case height

200 mm

Products per master (outer) case

36 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.04 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
