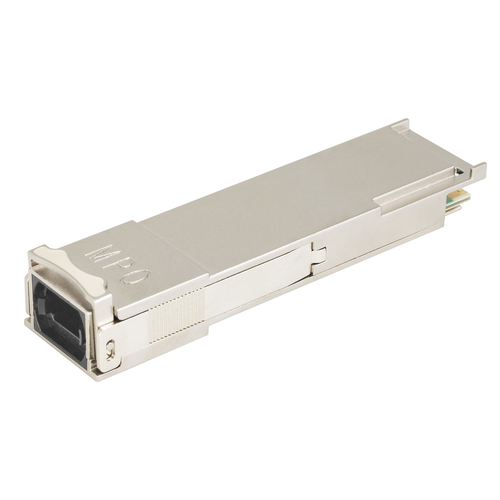

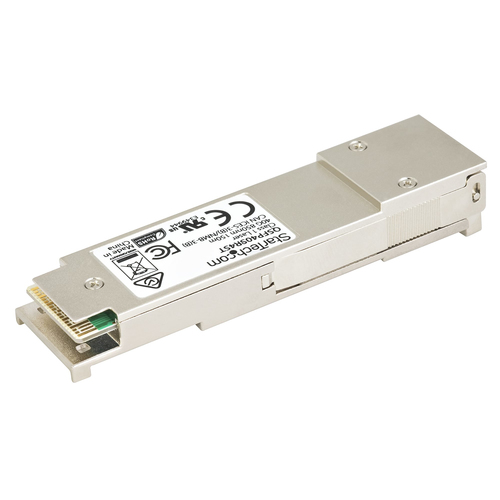

StarTech.com MSA Compliant QSFP+ Transceiver Module - 40GBASE-SR4~MSA Uncoded QSFP+ Module - 40GBASE-SR4 - 40GbE Multi Mode Fiber (MMF) Optic Transceiver - 40GE Gigabit Ethernet QSFP+ - MPO 100m - 850nm - DDM

40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty

The QSFP40SR4ST is an MSA compliant fiber QSFP+ transceiver that's designed, programmed and tested to work with 40GBASE-SR4 compatible MSA switches and routers. The QSFP+ transceiver module supports a maximum distance of up to 150 m (492 ft) and delivers dependable 40 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 850 nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 0.7 Watts
• DDM: Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: QSFP40SR4ST

Manufacturer: StarTech.com StarTech.com

RRP Price €511.56

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
40000 Mbit/s
Interface type
QSFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
MPO
SFP transceiver standard
SR4
Maximum transfer distance
150 m
Wavelength
850 nm
Networking standards
IEEE 802.3ba
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Housing material
Aluminium
Hot-Plug support
Yes
Mean time between failures (MTBF)
1489426 h

Power

Power consumption (typical)
0.7 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UR

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
18.4 mm
Depth
72 mm
Height
13 mm
Weight
34 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
90 mm
Package depth
120 mm
Package height
30 mm
Package weight
62 g

Logistics data

Master (outer) case width
270 mm
Master (outer) case length
340 mm
Harmonized System (HS) code
85369010
Master (outer) case height
330 mm
Products per master (outer) case
60 pc(s)
