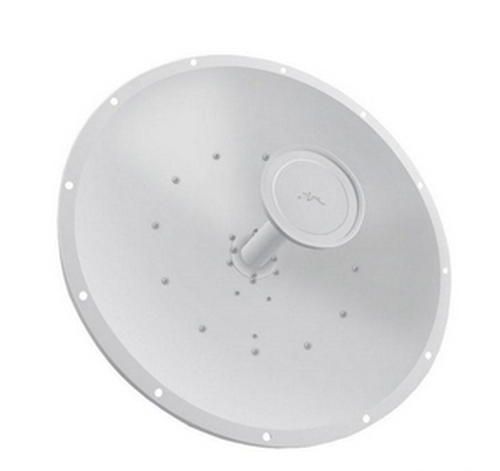

Ubiquiti airMAX network antenna Directional antenna 34 dBi

Name: Ubiquiti airMAX network antenna Directional antenna 34 dBi
Brand: Ubiquiti
SKU: RD-5G34
Price: 357.07 EUR
Availability: OutOfStock

- RocketM5 or RocketM5 GPS (sold separately)
- Phillips #1 screwdriver
- 16 mm or 5/8 in. wrench
- 24 mm wrench

Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial grade shielded Ethernet cable from Ubiquiti Networks.

ON ORDER

SKU: RD-5G34

Manufacturer: Ubiquiti

RRP Price €357.07

Specifications

Performance

Frequency band

5.15 - 5.85 GHz

Horizontal beam width

3°

Vertical beam width

3°

Antenna gain level (max)

34 dBi

Features

Antenna type

Directional antenna

Product colour

White

Mounting

Wall

Purpose

Outdoor

Weight & dimensions

Width

1050 mm

Depth

1050 mm

Height

421 mm

Weight

13.5 kg

Packaging content

Quantity per pack

1 pc(s)

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

13.5 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
