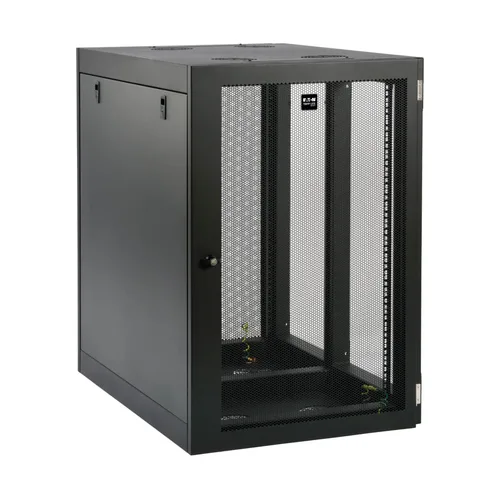

Tripp Lite SRW18UHD SmartRack 18U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet

The SRW18UHD SmartRack 18U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 lbs (226.8 kgs).

Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels.

The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.

The SRW18UHD comes fully assembled and ready to mount to the wall. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.

ON ORDER

SKU: SRW18UHD

Manufacturer: Eaton Eaton

RRP Price €952.94

Specifications

Features

Rack capacity
18U
Type
Wall mounted rack
Maximum weight capacity
181.4 kg
Product colour
Black
Certification
EIA-310-E, NOM, RoHS

Weight & dimensions

Width
920 mm
Depth
629.2 mm
Height
938.8 mm
Weight
54.4 kg
Width (imperial)
92 cm (36.2")
Depth (imperial)
62.9 cm (24.8")
Height (imperial)
93.9 cm (37")

Packaging data

Package width
652.8 mm
Package depth
944.9 mm
Package height
1077 mm
Package weight
69 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
652.8 mm
Master (outer) case length
944.9 mm
Master (outer) case height
1077 mm
Master (outer) case gross weight
69 kg
Products per master (outer) case
1 pc(s)
