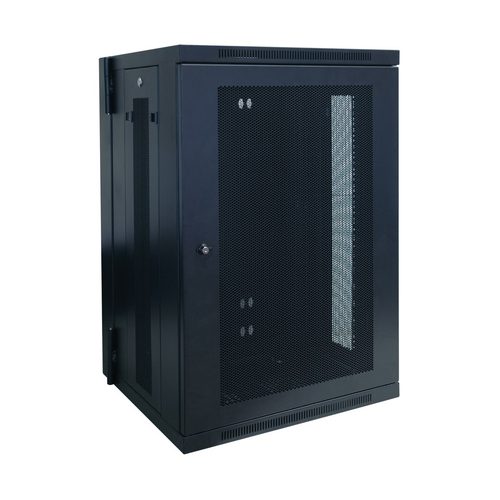

Tripp Lite SRW18US SmartRack 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back

The SRW18US SmartRack® 18U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW18US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

ON ORDER

SKU: SRW18US

Manufacturer: Eaton Eaton

RRP Price €783.21

Specifications

Features

Rack capacity
18U
Type
Wall mounted rack
Maximum weight capacity
113.4 kg
Product colour
Black
Certification
EIA-310-D, IEC 60297-3-100, DIN 41494, IP20, RoHS, UL 60950

Weight & dimensions

Width
599.4 mm
Depth
548.6 mm
Height
904.2 mm
Weight
43.5 kg

Packaging data

Wall mounting kit
Yes
Manual
Yes
Package width
662.9 mm
Package depth
612.9 mm
Package height
1034 mm
Package weight
50.8 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
662.9 mm
Master (outer) case length
612.9 mm
Master (outer) case height
1034 mm
Master (outer) case gross weight
50.8 kg
Products per master (outer) case
1 pc(s)
