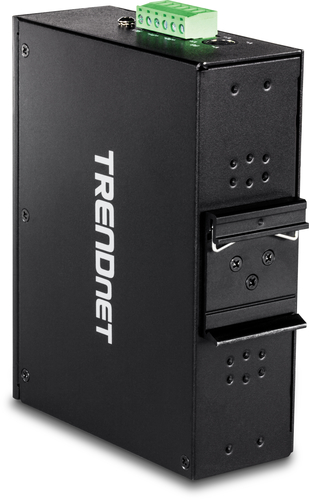

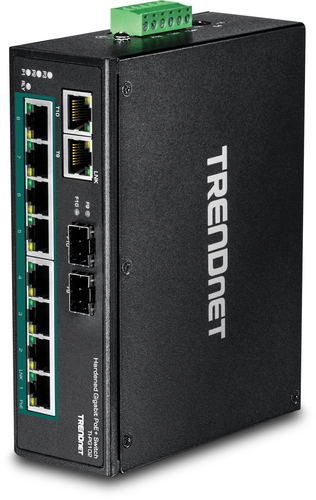

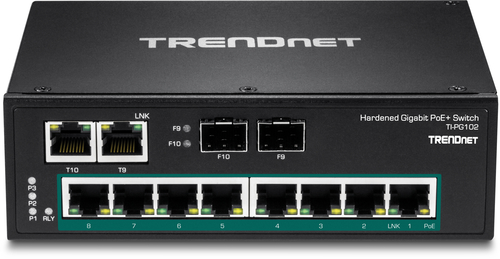

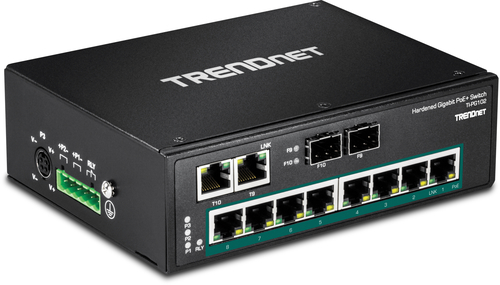

Trendnet TI-PG102 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

PoE Power
A 240 W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance

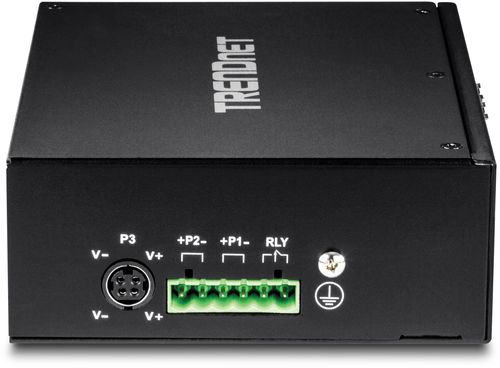

Features dual redundant power inputs with output alarm relay.

Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40 – 75°C (-40 – 167°F).

ON ORDER

SKU: TI-PG102

Manufacturer: Trendnet Trendnet

RRP Price €352.61

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.8 Mpps
MAC address table
16000 entries
Store-and-forward
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes

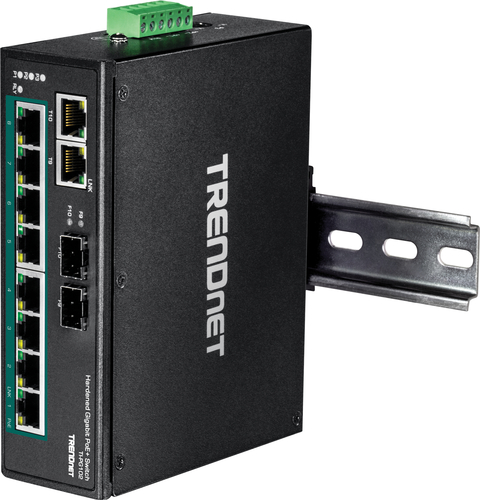

DIN rail mounting
Yes

Performance

Buffer size
2048 KB
Mean time between failures (MTBF)
510400 h

Power

Redundant power supply (RPS) support
Yes
DC input voltage
48 - 56 V
Input voltage
48/56 V
Power consumption (max)
5.67 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
240 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
155 mm
Depth
120 mm
Height
48 mm
Weight
445 g

Packaging data

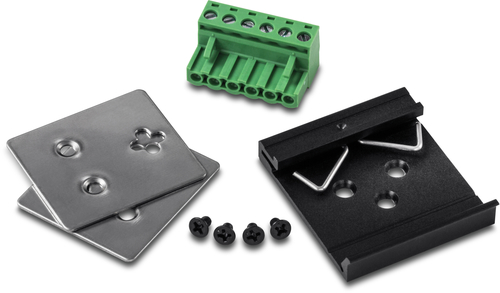

Wall mounting kit
Yes
Terminal block included
Yes

Certificates

Certification
CE FCC

Logistics data

Harmonized System (HS) code
85176990
