Trendnet TI-PGM102 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget

Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots

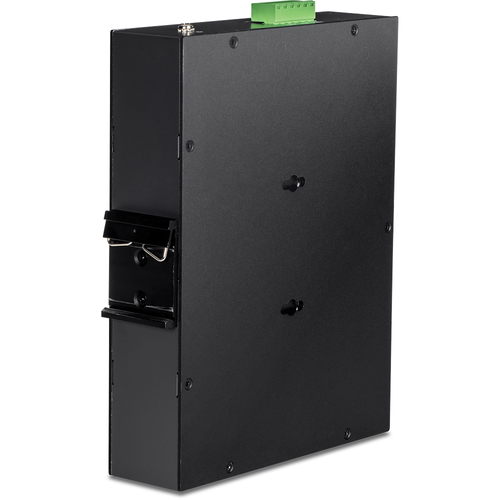

DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware

Switching Capacity
20Gbps switching capacity

Redundant Power
Redundant power inputs with overload current protection (power supply sold separately, models: TI-S24052, TI-S24048)

Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power

Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

Wide Operating Temperature
Rated for an operating temperature range of -20° – 65°C (-4° – 149°F)

Grounding Point
Grounding point protects equipment from external electrical surges

ON ORDER

SKU: TI-PGM102

Manufacturer: Trendnet Trendnet

RRP Price €209.26

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2

Network

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Full duplex
Yes
Half duplex
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
1
Packet buffer memory
1.5 MB

Design

Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
1000000 h

Power

Power source
DC
Power supply included
No
Redundant power supply (RPS) support
Yes
DC input voltage
48 - 55 V
Power consumption (max)
6.38 W
Power protection features
Overload

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
240 W

Operational conditions

Operating temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
210 mm
Depth
160 mm
Height
45 mm
Weight
1.1 kg

Packaging content

Quick start guide
Yes
Rack mount kit
Yes

Accessories
