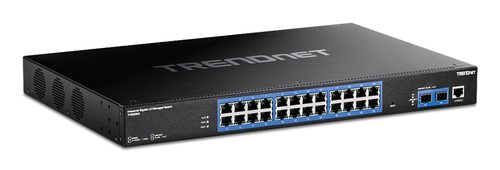

Trendnet TI-RG262I network switch Managed Gigabit Ethernet (10/100/1000) 1U Black

TRENDnet’s Industrial Gigabit L2 Managed Rackmount Switch offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 rackmount switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for industrial environments. Our industrial layer 2 rackmount switch models feature copper gigabit ports for high-speed device connections, as well as SFP ports that support 100/1000Base-FX SFP modules for long distance fiber networking applications. This industrial layer 2 rackmount switch feature a fanless design that eliminates operating noise and lowers energy consumption.

This Industrial Gigabit L2 Managed Rackmount Switch provides an intuitive web-based management interface. Each TRENDnet industrial layer 2 rackmount switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together and increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS to prioritize traffic, port bandwidth controls, and SNMP monitoring.

ON ORDER

SKU: TI-RG262I

Manufacturer: Trendnet Trendnet

RRP Price €610.58

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
MAC address-based VLAN, Tagged VLAN
Number of VLANs
4094

Data transmission

Switching capacity
52 Gbit/s
Forwarding rate
38.7 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
0.5 MB

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black
LED indicators
Yes
International Protection (IP) code
IP30

Performance

Fanless
Yes
Mean time between failures (MTBF)
475352 h

Power

Power source
AC/DC
DC input voltage
48 - 57 V
Power consumption (max)
20 W

Operational conditions

Operating temperature (T-T)
-40 - 70 °C

Weight & dimensions

Width
440 mm
Depth
284 mm
Height
44 mm
Weight
3.46 kg

Certificates

Certification
CE FCC
