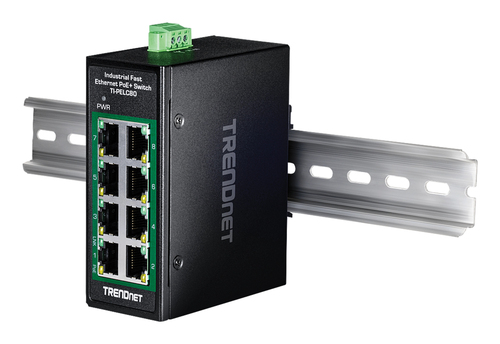

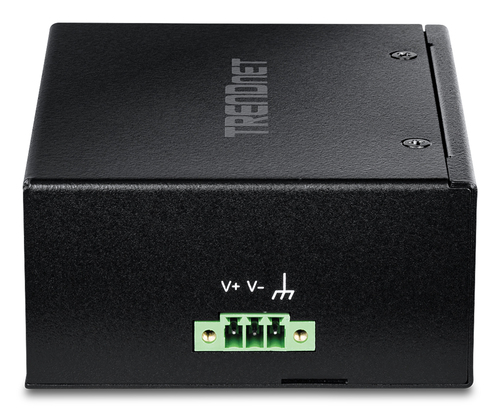

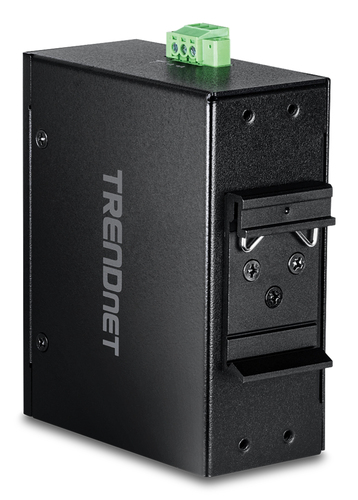

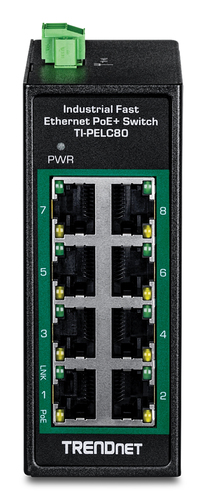

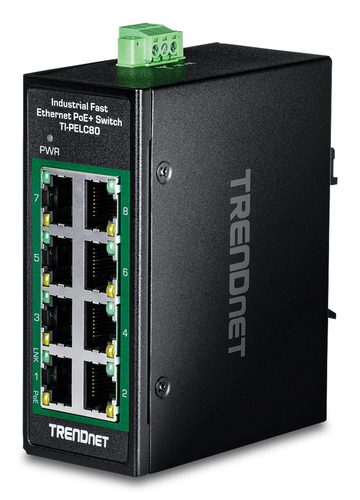

Trendnet TI-PELC80 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Trendnet TI-PELC80 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

Name: Trendnet TI-PELC80 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Brand: Trendnet
SKU: TI-PELC80
Price: 114.36 EUR
Availability: OutOfStock

TRENDnet’s 8-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch, model TI-PELC80, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Fast Ethernet DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial switch features eight Fast Ethernet PoE+ ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation
areas. Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems,
IPTV decoders, access controls, and more.

ON ORDER

SKU: TI-PELC80

Manufacturer: Trendnet

RRP Price €114.36

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Network

Networking standards

IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Full duplex

Yes

Half duplex

Yes

Auto-negotiation

Yes

Data transmission

Switching capacity

1.6 Gbit/s

Forwarding rate

1.19 Mpps

MAC address table

1000 entries

Store-and-forward

Yes

Packet buffer memory

1 MB

Design

Rack mounting

Product colour

Black

International Protection (IP) code

IP30

Wall mountable

Yes

DIN rail mounting

Yes

Performance

Mean time between failures (MTBF)

560321 h

Power

Power source

DC/PoE

DC input voltage

48 - 56 V

Power consumption (max)

2.24 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

200 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Weight & dimensions

Width

100 mm

Depth

80.5 mm

Height

39 mm

Weight

340 g

Packaging content

Quick start guide

Yes

Certificates

Certification

CE FCC

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.34 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
