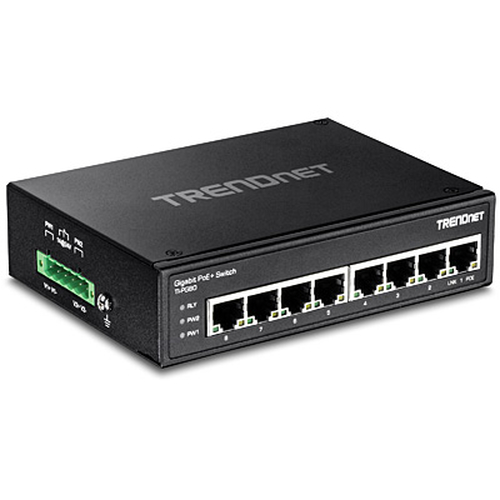

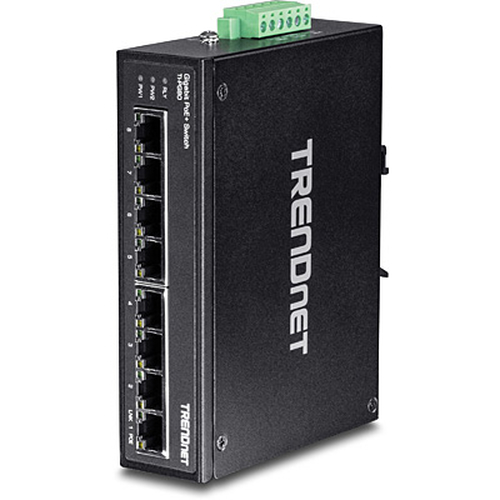

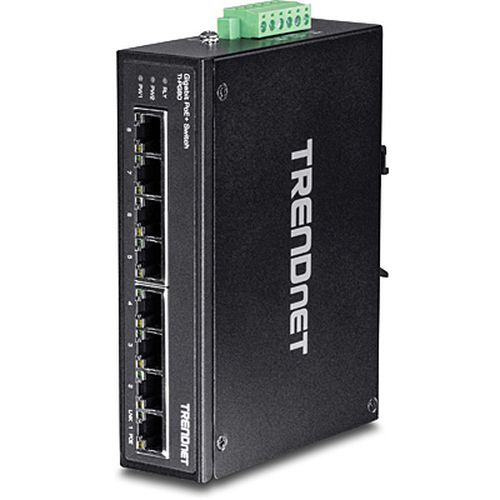

Trendnet TI-PG80 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TRENDnet’s TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.

- 8 x Gigabit PoE+ Ethernet ports
- Up to a 200 Watt full PoE+ power budget
- 16 Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Powers supply sold separately

ON ORDER

SKU: TI-PG80

Manufacturer: Trendnet Trendnet

RRP Price €189.95

Specifications

Management features

Switch type
Unmanaged
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex
Yes
Flow control support
Yes

Data transmission

Switching capacity
16 Gbit/s
Throughput
11.9 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Packet buffer memory
1 MB

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes

Performance

Mean time between failures (MTBF)
510304 h

Power

Redundant power supply (RPS) support
Yes
Power consumption (max)
5.76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
200 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
104 mm
Depth
36 mm
Height
143 mm
Weight
554 g

Packaging content

Quick start guide
Yes

Packaging data

Wall mounting kit
Yes

Certificates

Certification
FCC, CE

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
