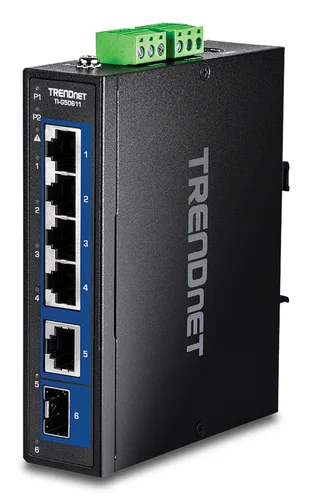

Trendnet TI-G50611 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

Trendnet TI-G50611 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black

Name: Trendnet TI-G50611 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Black
Brand: Trendnet
SKU: TI-G50611
Price: 224.22 EUR
Availability: OutOfStock

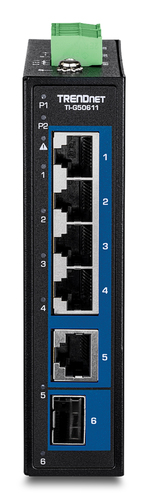

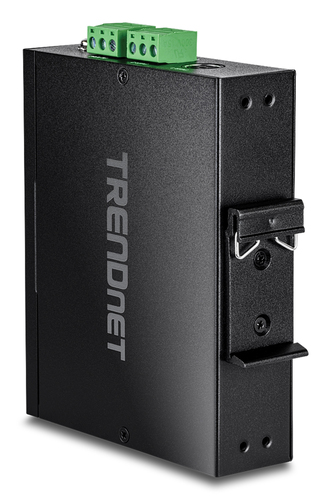

TRENDnet’s 6-Port Industrial 2.5G DIN-Rail Switch with 1 x 10G Port , model TI-G50611, features a rugged IP50 rated metal enclosure and is designed to work in the harshest networking environments. This industrial multi-gigabit switch is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection, and a power failure alarm relay minimize network downtime. This multi-gig DIN-Rail network switch features 2.5G and 10G copper ports for high-speed device connections, and a 10G SFP+ port for backbone fiber networking applications.

ON ORDER

SKU: TI-G50611

Manufacturer: Trendnet

RRP Price €224.22

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

2.5G Ethernet (copper) ports quantity

10G Ethernet (copper) ports quantity

Installed SFP modules quantity

SFP+ module slots quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Full duplex

Yes

Half duplex

Yes

Data transmission

Switching capacity

60 Gbit/s

Forwarding rate

44.64 Mpps

MAC address table

4000 entries

Jumbo frames support

Yes

Jumbo frames

12000

Packet buffer memory

1 MB

Design

Product colour

Black

International Protection (IP) code

IP50

Wall mountable

Yes

DIN rail mounting

Yes

Performance

Mean time between failures (MTBF)

798907 h

Power

Power source

DC input voltage

9 - 60 V

Power consumption (max)

12.8 W

Power over Ethernet (PoE)

Weight & dimensions

Width

120 mm

Depth

98 mm

Height

30 mm

Weight

496 g

Certificates

Certification

CE FCC LVD

Description

Manufacturer

Trendnet

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.496 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

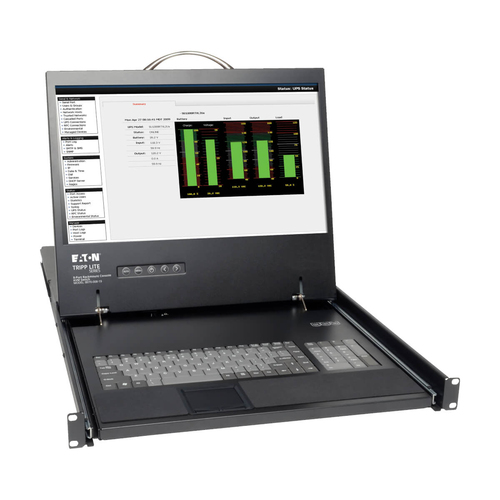

Tripp Lite B070-008-19 NetCommander 8-Port Cat5 1U Rack-Mount Console KVM Switch with 19-in. LCD Other

The B070-008-19 KVM Switch gives you a rack-mountable full keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to eight computers/servers.The B070-008-19 uses inexpensive, user-supplied Cat5e/6/6a and a Server Interface Unit so you can control computers/servers located up to 100 feet away from the switch. You can switch easily between the ports using an on-screen display (OSD) or keyboard hot key commands. Multi-level password protection prohibits unauthorized users from accessing the connected computers. The built-in 19-inch LCD screen supports video resolutions up to 1366 x 768.The B070-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Note: B051-000 remote access IP unit is not compatible with the B070-008-19 or B070-016-19 NetCommander® Cat5 1U Rack-Mount Console KVM Switch Series.

€1,043.52

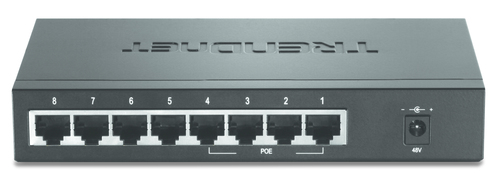

Trendnet TPE-S44 network switch Unmanaged Power over Ethernet (PoE) Blue Other

TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.-Reduces equipment cost by delivering data and power over existing network cables.-4 PoE and 4 standard 10/100Mbps ports.-Flow Control for Full-Duplex mode.-IEEE 802.3af Power over Ethernet (PoE) Standard Compliant.-8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports.-Built-in 4 PoE Ports (Port 1 ~ Port 4).-Supports PoE Power Maximum 15.4 watts for each POE port.-Supports PoE Powered Device (PD) classification identify.-Full Wire-Speed Non-Blocking Reception and Transmission.-Store and Forward Switching Method.-96Kbytes RAM Data Buffer and 1K entries MAC Address Table.-Extensive Diagnostic LED´s on the Front Panel.-IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode.-5-year limited warranty.

€47.63

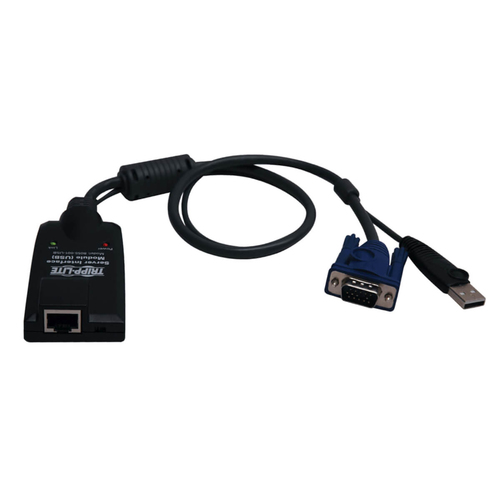

Tripp Lite B055-001-USB NetDirector USB Server Interface Unit (B064-Series) Other

This USB Server Interface Unit connects a USB server to a B064-Series NetDirector® KVM switch using Cat5e/6 cabling. Use of Cat5e/6 cables frees up space in server cabinets that would otherwise be filled by traditional, bulkier KVM cable kits. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.Note: SIU's that were purchased prior to that of your KVM switch may require a firmware upgrade in order for them to work properly (see Maintenance under OSD Operation section of your B064-Series KVM Owner's Manual for details)

€110.70

Tripp Lite B021-000-19 1U Rack-Mount Console with 19 in. LCD, TAA Other

The B021-000-19 1U rack-mount console features an integrated 19-inch LCD display, full 88-key keyboard and touchpad, all in a 1U rack-mountable housing. The included KVM cable kit allows for connection to a PS/2 computer or KVM. A PS/2 to USB adapter is included, which can be used to connect to a USB computer or KVM. The unit features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc. Your peripheral device connects to the USB-A port on the front of the unit, and your computer connects to the USB-A port on the back of the unit using a UR020-Series M/M cable. Constructed of heavy-duty steel housing. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

€632.61

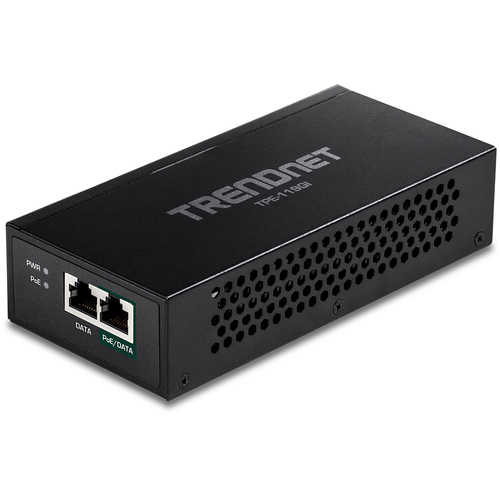

Trendnet TPE-119GI PoE adapter Gigabit Ethernet Other

TRENDnet's Gigabit PoE++ Injector, model TPE-119GI, is an 802.3bt PoE injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ devices. Connect the Gigabit PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more with this 802.3btbt PoE injector.

€41.20

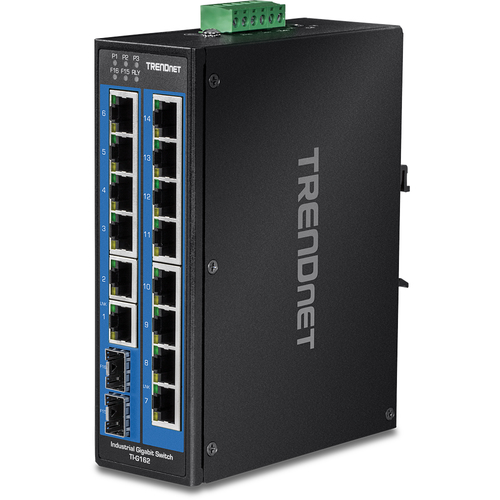

Trendnet TI-G162 network switch Gigabit Ethernet (10/100/1000) Black Other

TRENDnet's Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.

€230.19

Trendnet TI-E100 network extender Network transmitter Black 10, 100, 1000 Mbit/s Other

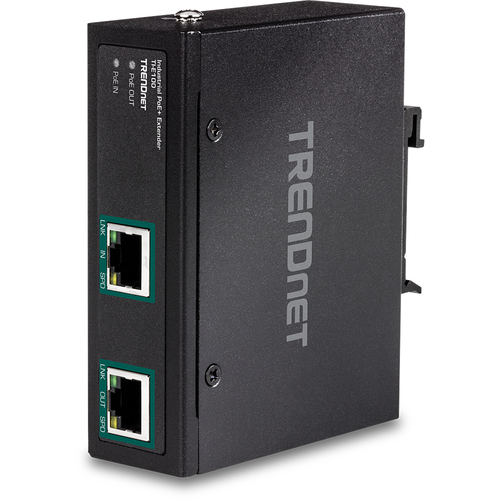

TRENDnet's Industrial Gigabit PoE+ Extender, model TI-E100, takes a single PoE+ connection and extends it an additional 100m (328 ft.) for remote PoE/PoE+ device installation. The industrial PoE+ extender auto-detects a PoE or PoE+ connection, and then extends it for a total distance of up to 200m (656 ft.) from the PoE+ power source equipment. The TI-E100 industrial PoE+ extender features a convenient wall mountable design for installation flexibility. Daisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).PoE PoweredExtends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE or PoE+ device installation.Daisy-ChainableDaisy-chain up to two industrial PoE+ extenders for a total PoE+ network extension of 300m (984 ft.).Industrial Grade DesignBuilt for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F).Extension DistanceExtends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipmentPoE/PoE+Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) deviceGigabit PortsThe industrial PoE+ extender features one gigabit PoE+ input port and one gigabit PoE+ output portPoE PoweredNo external power required—saves on cost installation timeDaisy-ChainConnect up to two TI-E100 industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.)Industrial Grade DesignBuilt for harsh environments, with an IP30 enclosure rating, and a wide operating temperature range of -40°– 75° C (-40° – 167° F)LED IndicatorsLED indicators to convey status

€84.26

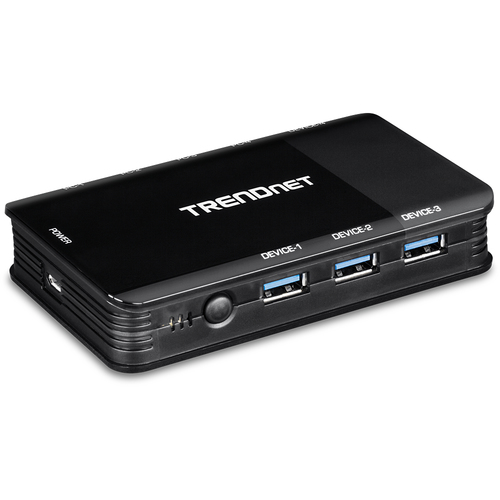

Trendnet TK-U404 computer data switch Other
