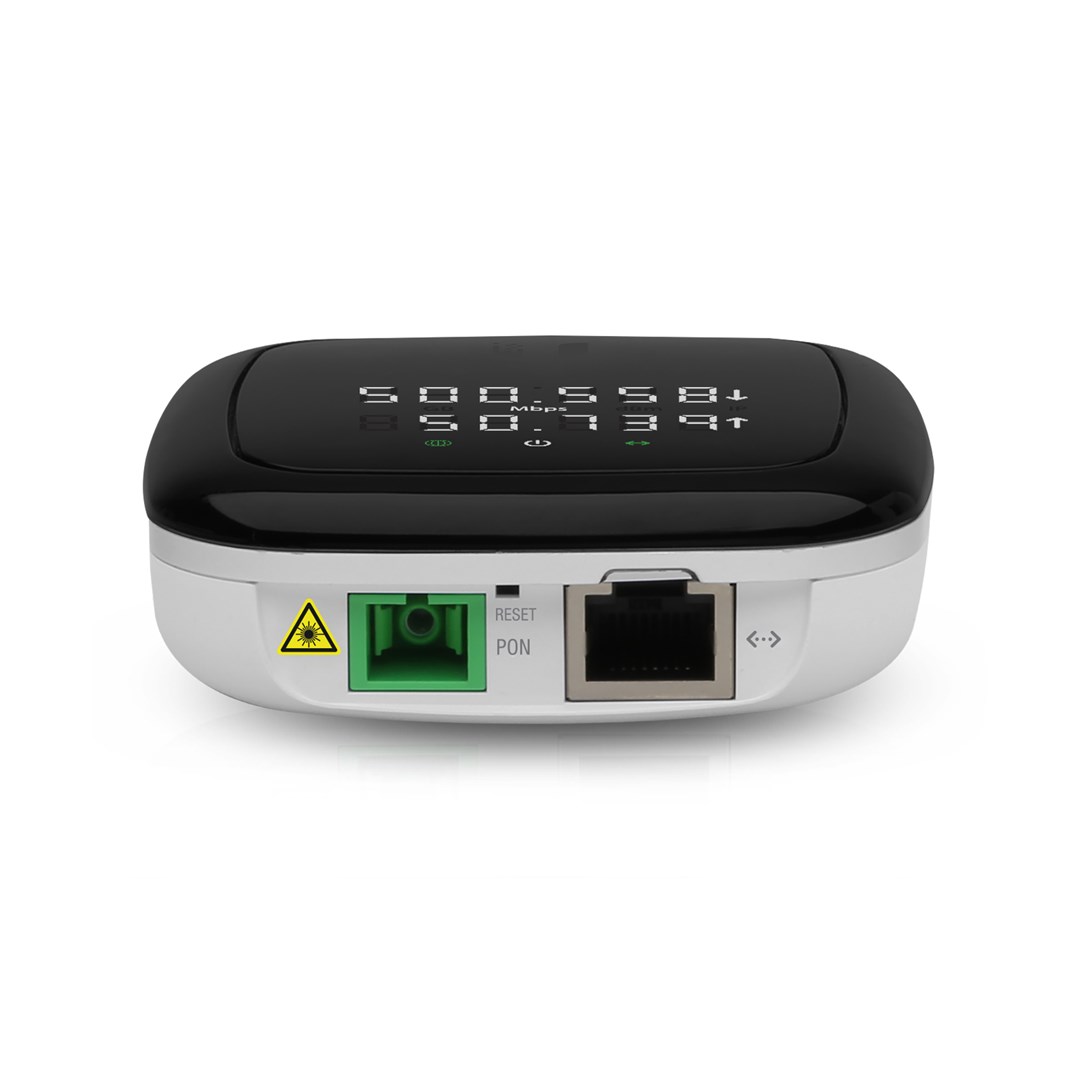

Ubiquiti UFiber Nano G gateway/controller 1000 Mbit/s

Status Display

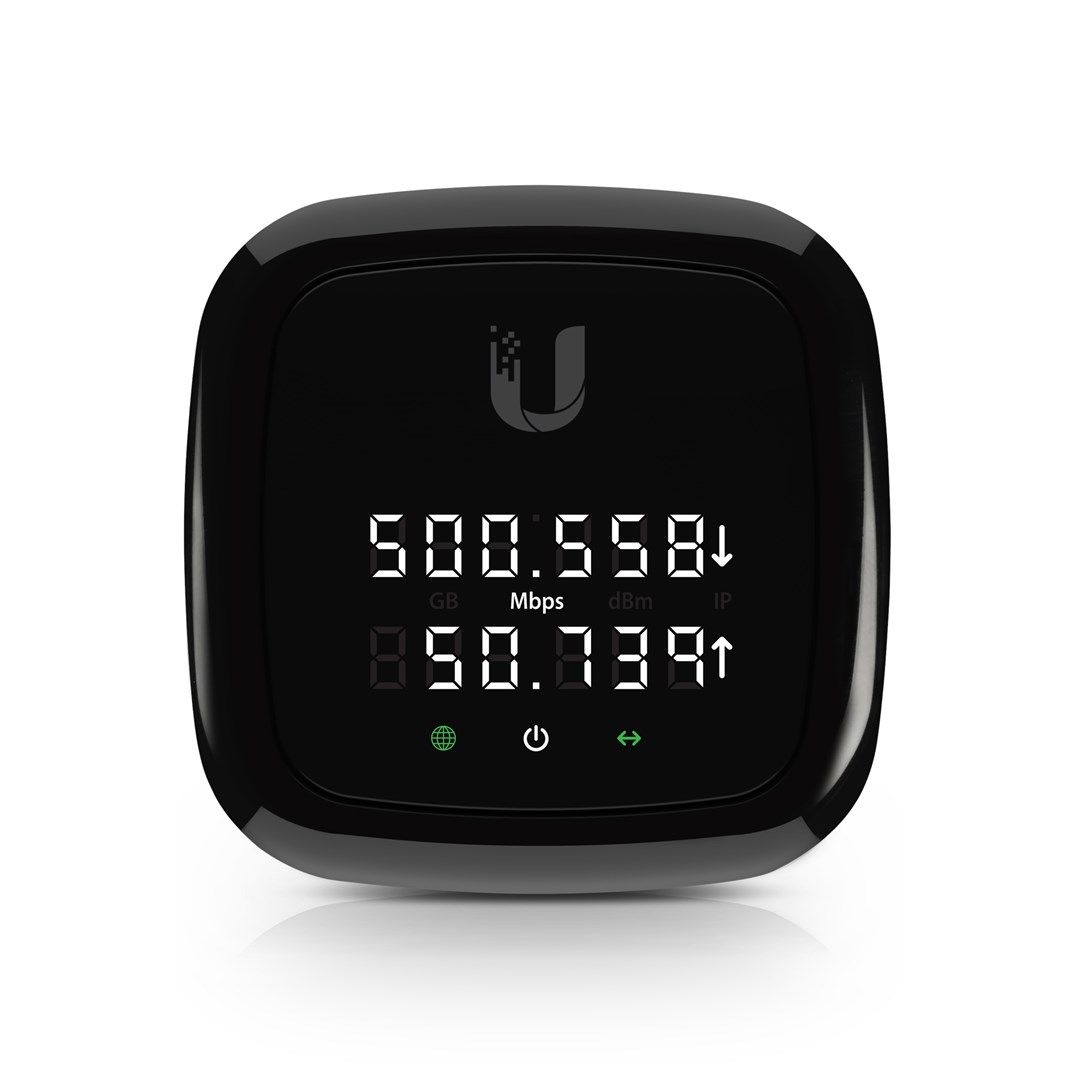

The easy-to-read display provides status information: IP address, signal strength, and current throughput.

Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.

Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.

ON ORDER

SKU: UF-NANO

Manufacturer: Ubiquiti Ubiquiti

RRP Price €103.49

Specifications

Design

LED indicators
Yes

Performance

Built-in processor
Yes
Processor frequency
240 MHz
Number of processors installed
1
Internal memory
128 MB

Network

Ethernet LAN data rates
1000 Mbit/s
Data transfer rate
2.488 Gbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power consumption (typical)
7 W
Input voltage
24 V
Input current
0.3 A
Power over Ethernet (PoE)
Yes

Weight & dimensions

Weight
110 g
Dimensions (WxDxH)
77 x 77 x 28 mm

Operational conditions

Operating temperature (T-T)
-10 - 45 °C
Operating relative humidity (H-H)
5 - 95%

Certificates

Certification
CE, FCC, IC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
