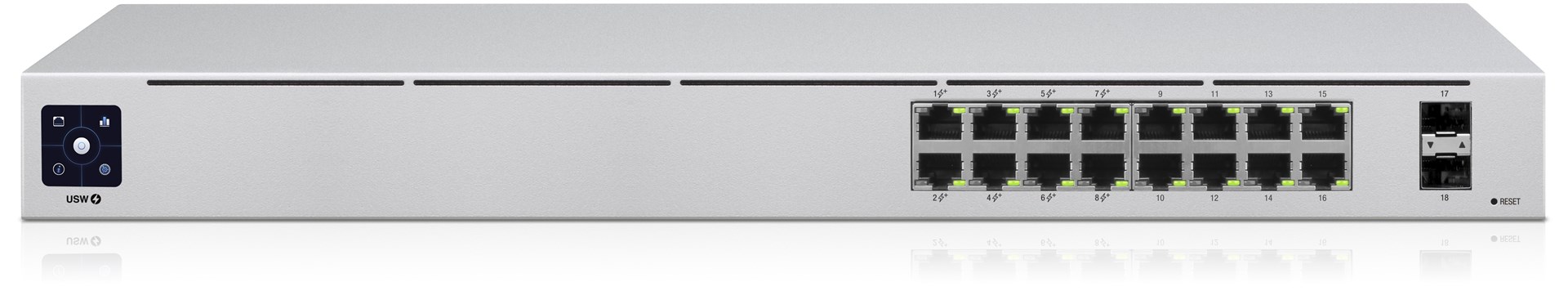

Ubiquiti UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

19 IN STOCK

SKU: USW-16-POE

Manufacturer: Ubiquiti Ubiquiti

RRP Price €333.44

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.3af, IEEE 802.3at
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-sensing
Yes
VLAN support
Yes

Data transmission

Switching capacity
36 Gbit/s
Throughput
18000 Mpps
Forwarding rate
26.78 Mpps
Static route
Yes
Jumbo frames support
Yes

Security

Authentication type
IEEE 802.1x, RADIUS

Design

Rack mounting
Yes
Form factor
1U
Product colour
Silver
LED indicators
Activity, Link, PoE, Speed, System

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC input voltage
44 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
32 W
Total Power over Ethernet (PoE) budget
48 W

Operational conditions

Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
442.4 mm
Depth
200 mm
Height
43.7 mm
Weight
2.8 kg

Certificates

Certification
CE, FCC, IC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
