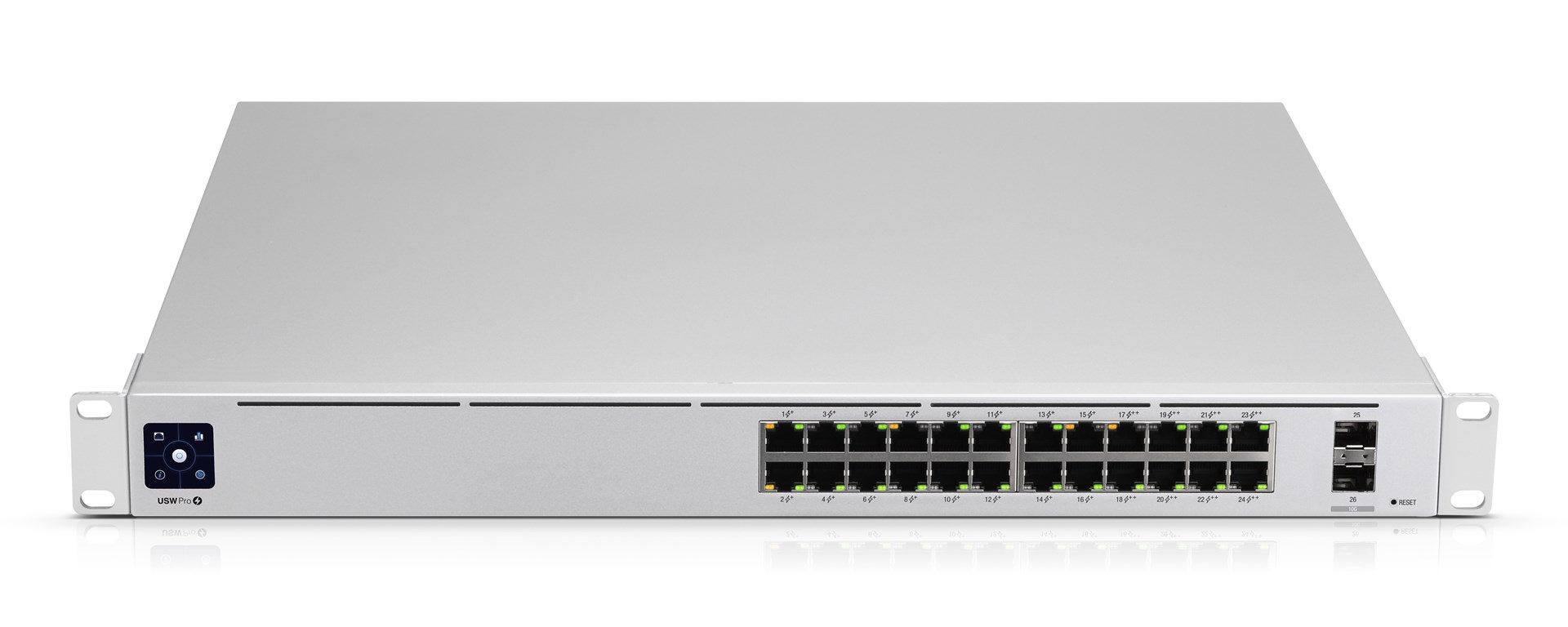

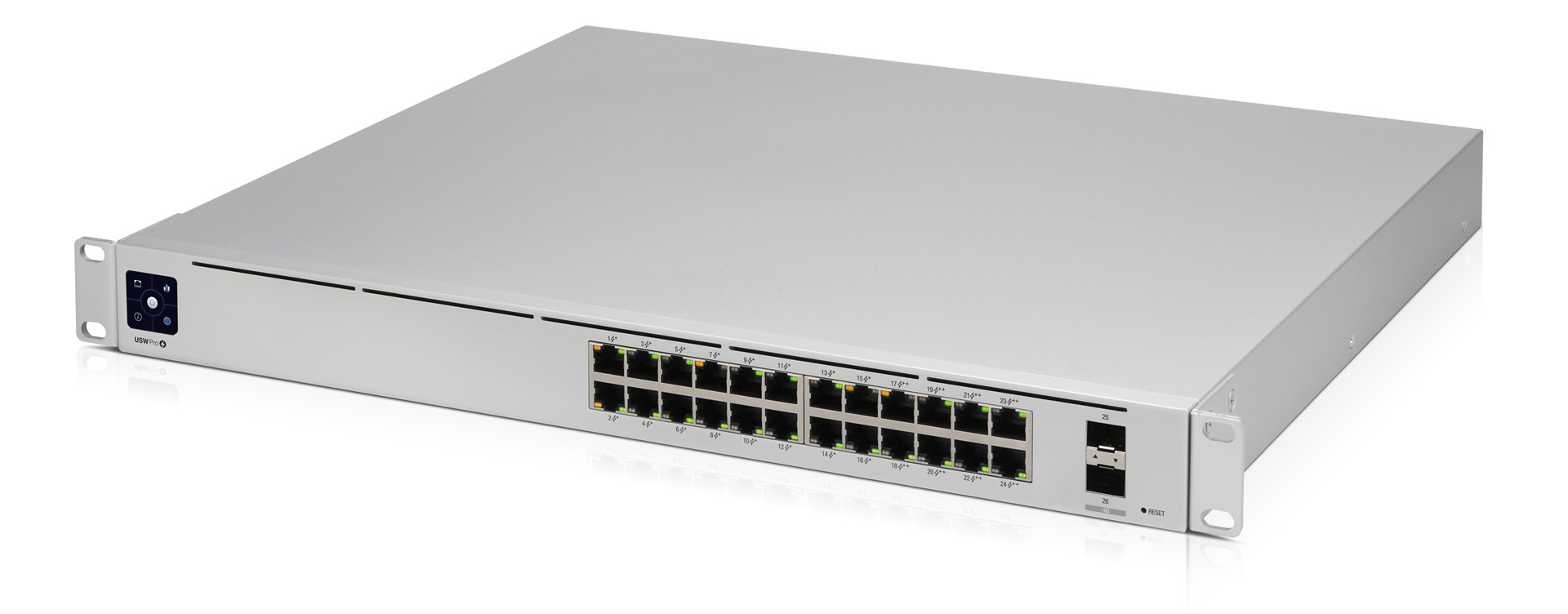

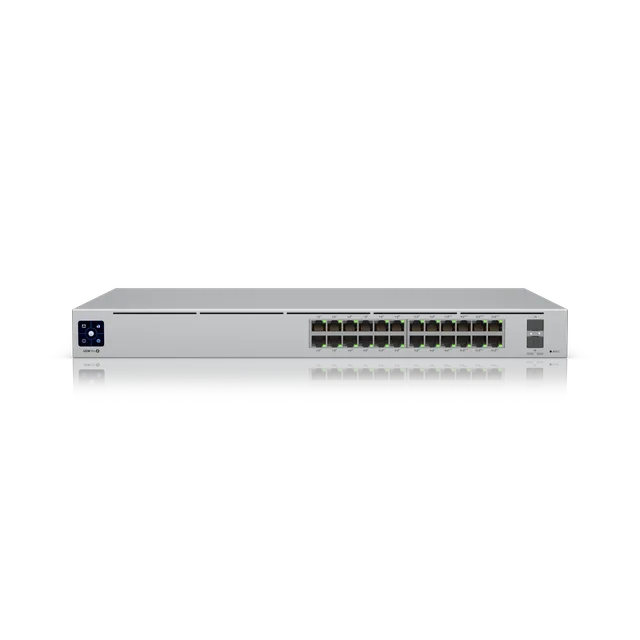

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

32 IN STOCK

SKU: USW-PRO-24-POE

Manufacturer: Ubiquiti Ubiquiti

RRP Price €755.10

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
2

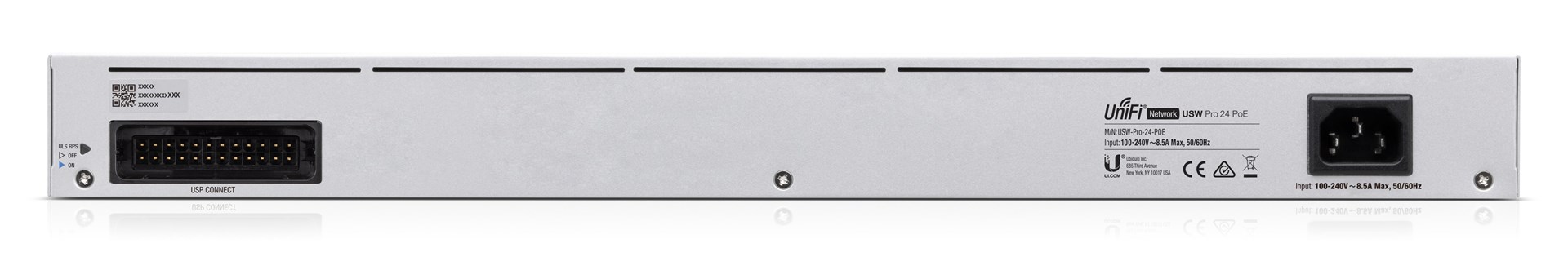

Power connector
AC-in jack

Network

Networking standards
IEEE 802.3af, IEEE 802.3at
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
IPv4 routes
64
VLAN support
Yes
Number of VLANs
1000

Data transmission

Switching capacity
88 Gbit/s
Throughput
44000 Mpps
Forwarding rate
65.472 Mpps
MAC address table
16000 entries
Static route
Yes
Jumbo frames support
Yes
Packet buffer memory
2 MB

Security

DHCP features
DHCP relay, DHCP server, DHCP snooping
IGMP snooping
Yes
Authentication type
IEEE 802.1x, RADIUS

Design

Rack mounting
Yes
Form factor
1U
Product colour
Silver
Reset button
Yes
LED indicators
Activity, Link, PoE, Speed, System
Display type
LCM

Power

Power source
AC
Power supply included
Yes
Redundant power supply (RPS) support
Yes
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
450 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet 4PPoE (PoE++) ports quantity
8
Power over Ethernet (PoE) power per port
64 W
Total Power over Ethernet (PoE) budget
400 W

Operational conditions

Operating temperature (T-T)
-5 - 40 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
442.4 mm
Depth
285.4 mm
Height
43.7 mm
Weight
4.3 kg

Certificates

Certification
CE, FCC, IC

Logistics data

Harmonized System (HS) code
85176990
