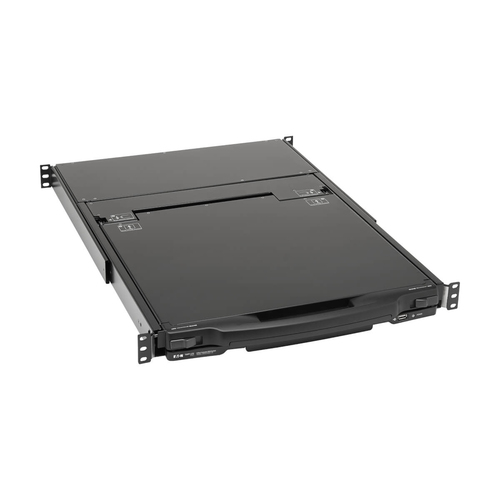

Tripp Lite B030-DP08-17D 8-Port NetDirector DisplayPort KVM Switch Console with 17 in. LCD, Dual Rail, 1U Rack-Mount

Connects 8 DisplayPort Computers or Servers to a Single Monitor, Keyboard and Mouse
This NetDirector® DisplayPort KVM switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and eight DisplayPort inputs into a compact housing that occupies only 1U of rack space. Access, control, boot and reboot up to eight DisplayPort computers or servers at the same time. No adapters are needed for connecting DisplayPort-enabled equipment.

Saves Valuable Space and Keeps Your Operating Costs Low
All connected DisplayPort computers or servers share a single monitor, keyboard and mouse, which saves space in your rack or workspace. DDC emulation allows each computer’s settings to adjust automatically for optimal screen output. Eliminating the cost of buying monitors, adapters, keyboards and mice for all eight connected devices keeps your TCO (total cost of ownership) low.

17 in. LCD Supports Crystal-Clear 1080p Video

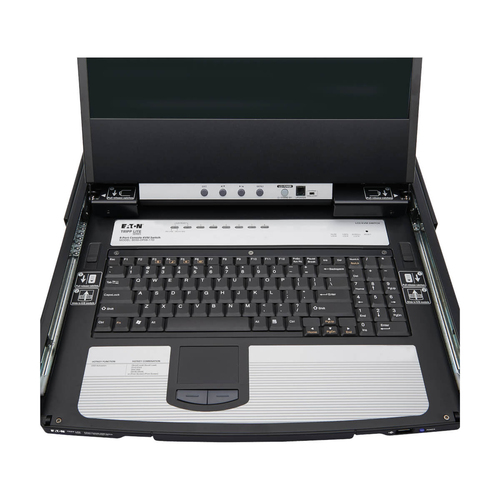

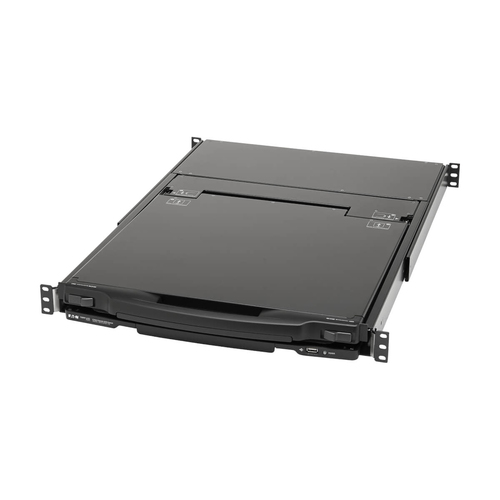

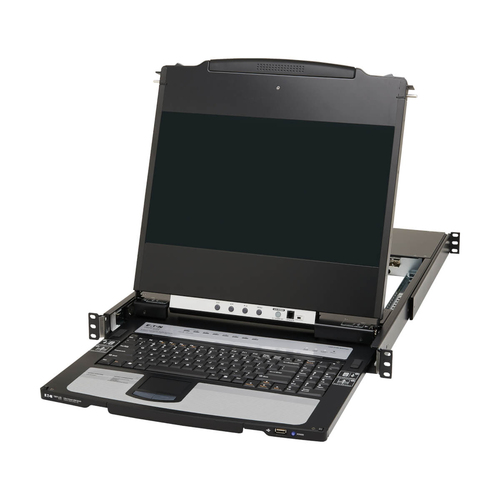

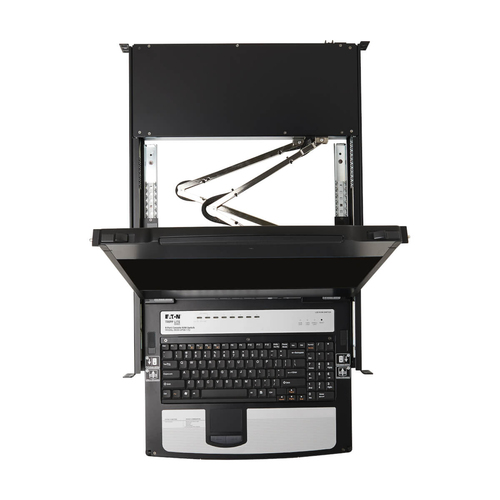

The dual-rail B030-DP08-17D supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz. The wide display flips up to provide access to connected computers, making multitasking easier and more convenient, and folds down to prevent the console from blocking adjacent rack equipment when not in use. The LCD and the keyboard/touchpad are on separate rails, so the LCD can remain open while the keyboard/touchpad is stored out of the way, keeping the rack aisle clear.

Switching Between Computers Is Fast and Easy
Use the on-console push buttons, keyboard hotkey commands or multi-lingual local console On-Screen Display (OSD) to quickly toggle between connected computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected. Computers or servers can be quickly added or removed without having to power down the KVM switch. Also features a USB 1.1 hub port on the front of the console for the connection of a USB peripheral device such as a flash drive or external mouse.

Multi-Level Password Security Keeps Your Private Data Private
Security is enhanced by limiting access to one administrator and no more than four local users. Two-level logout procedure allows you to log out manually or log out automatically after a user-defined period of time has passed.

Long-Lasting Reliability and Compatibility
This DisplayPort KVM switch mounts easily into 1U of space in an EIA-standard 19-inch rack with the included brackets (optional B019-000 – sold separately – allows mounting in a 2-post rack). The B030-DP08-17D is compatible with all major operating systems, including Windows and macOS, for simple integration into your existing structure. Mac/Sun keyboard emulation also is supported. The RJ11 port allows you to upgrade the KVM switch’s firmware using the included cable.

TAA-Compliant for GSA Schedule Purchases
The B030-DP08-17D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: B030-DP08-17D

Manufacturer: Eaton Eaton

RRP Price €2,775.28

Specifications

Ports & interfaces

Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
9
DisplayPort version
1.1
USB 2.0 Type-B ports quantity
8
Console ports
DisplayPort, USB A
USB hub
Yes
USB 2.0 Type-A hub ports quantity
1

Performance

HD type
Full HD
Maximum resolution
1920 x 1080 pixels
HDCP
Yes

Design

Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes

Display

Built-in display
Yes
Display
LCD
Display diagonal
43.2 cm (17")
On Screen Display (OSD)
Yes

Power

Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Weight
14.6 kg

Packaging data

Package width
685.8 mm
Package depth
831.8 mm
Package height
147.3 mm
Package weight
20 kg
Package type
Box

Packaging content

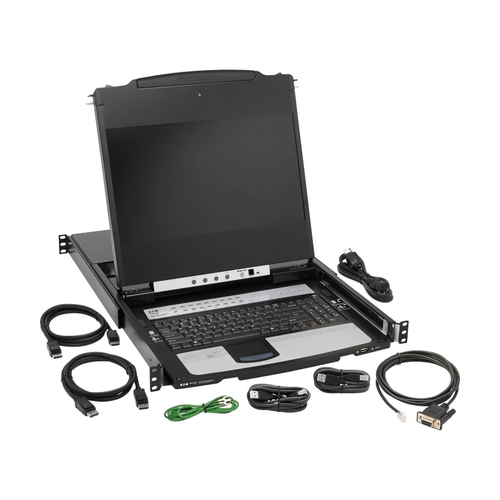

Cables included
AC, DisplayPort, Phone (RJ-11), USB
Quick installation guide
Yes

Logistics data

Harmonized System (HS) code
8471.80.1000
Master (outer) case width
685.8 mm
Master (outer) case length
831.8 mm
Master (outer) case height
147.3 mm
Master (outer) case gross weight
19.6 kg
Products per master (outer) case
1 pc(s)
Country of origin
Taiwan
