Tripp Lite B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail

Tripp Lite B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail

Name: Tripp Lite B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail
Brand: Eaton
SKU: B030-008-17-IP
Price: 2867.65 EUR
Availability: OutOfStock

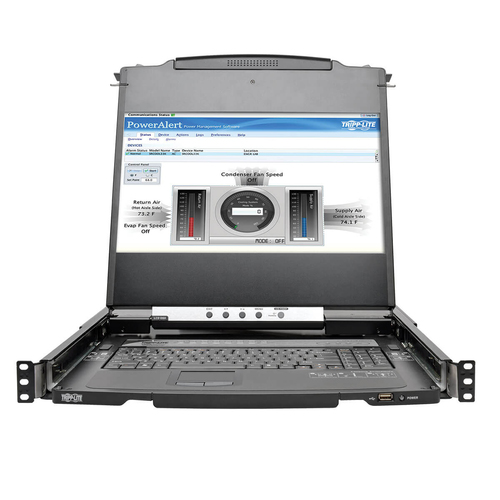

The B030-008-17-IP NetDirector® 8-Port 1U Rack-Mount Console HDMI KVM Switch combines a rack-mountable keyboard, 17-inch LCD, touchpad and built-in IP remote access into a compact housing that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, you can access up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-008-17-IP lets you handle complex problems without needing to be on-site, which saves money and time.

The 17-inch LCD screen supports video resolutions up to 1920 x 1080. You can switch easily between ports using on-console push buttons, an on-screen display or keyboard hot key commands. Up to 64 users can be authorized and 32 remote users can be logged on concurrently with multi-level password security when multi-user operation is enabled. RADIUS and LDAP/S server authentication is supported.

The B030-008-17-IP controls USB computers/servers using a P782-XXX-DH Series KVM Cable Kit (sold separately) for each. When not in use, the KVM switch stores neatly in a rack drawer and pulls out when needed. With its dual-rail design, you can slide the keyboard into the rack, while the monitor stays visible. The B030-008-17-IP is compatible with all major operating systems and web browsers. Heavy-duty steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

ON ORDER

SKU: B030-008-17-IP

Manufacturer: Eaton Eaton

RRP Price €2,867.65

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

HDMI ports quantity

USB 2.0 ports quantity

DC-in jack

Yes

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Cabling technology

10/100Base-T(X)

Security algorithms

128-bit SSL, 256-bit AES, HTTPS, SSL/TLS, WPA2-RADIUS

Performance

Maximum resolution

1920 x 1080 pixels

Scan interval

255 s

Number of users

64 user(s)

Design

Rack mounting

Yes

Rack capacity

Product colour

Black

Housing material

Steel

Wired remote switch

Yes

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Certification

UL 60950-1 (USA), CAN/CSA, FCC Part 15 Class A, CE

Display

Built-in display

Yes

Display

LCD

Display diagonal

43.2 cm (17")

On Screen Display (OSD)

Yes

Power

Input voltage

100-250 V

AC input frequency

50 - 60 Hz

Input current

1 A

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

43.9 mm

Depth

680 mm

Height

480.1 mm

Weight

11.8 kg

Packaging data

Package width

677.9 mm

Package depth

830.1 mm

Package height

147.3 mm

Package weight

19.1 kg

Logistics data

Harmonized System (HS) code

8471.80.1000

Country of origin

Taiwan

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

11.8 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
