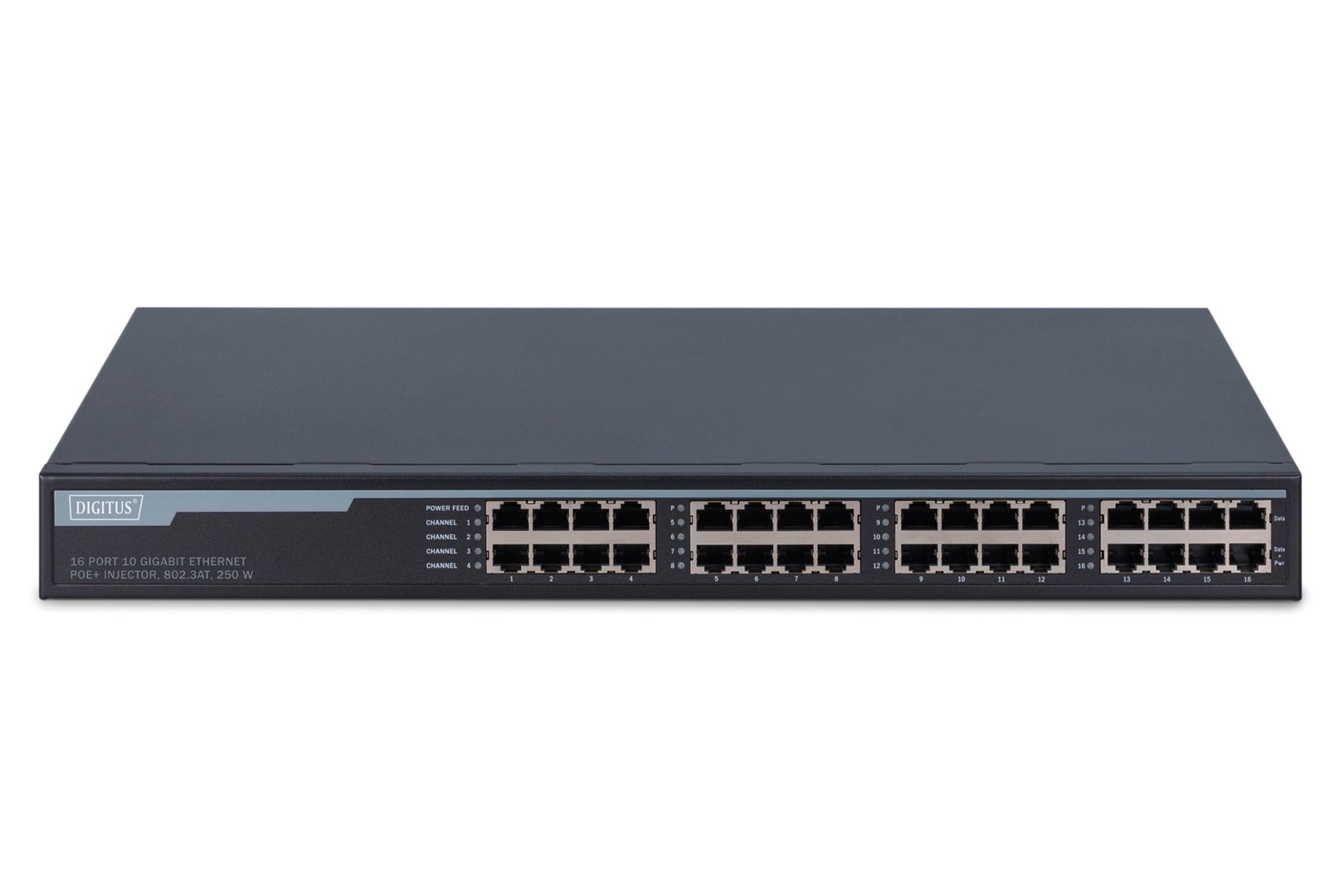

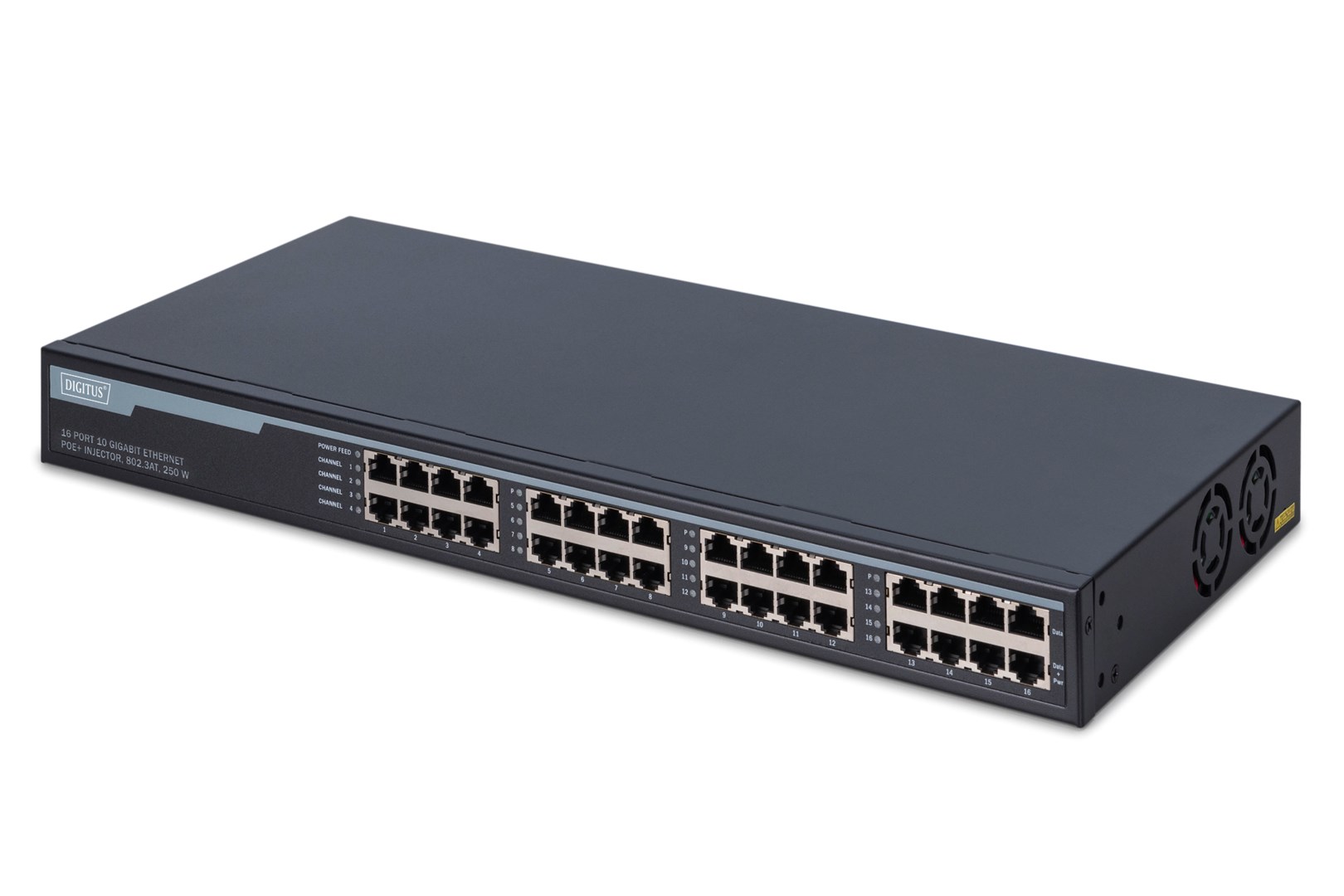

Digitus 16-port 10G Ethernet PoE+ injector, 802.3at, 250 W

Minimization of cabling effort for PoE-capable devices

- 16 10G ports with PoE+ support
- 250 watts of power with up to 30 watts per port
- Compatible with the IEEE802.3at standards
- Automatic overvoltage protection
- Supports bandwidths up to 10Gbps

The DIGITUS® DN-95116 is a 16 port 10G PoE+ mid-span hub (PoE injector). It offers 16 input ports for data and 16 output ports that provide data and PoE. Each PoE port supports connected devices according to the PoE standard IEEE802.3af and IEEE802.3at with 15.4 watts and 30 watts respectively, such as PoE access points, PoE IP telephones or PoE IP cameras. The switch provides a maximum budget of 250 watts for all ports and a maximum budget of 30 watts per port.

1 IN STOCK

SKU: DN-95116

Manufacturer: Digitus Digitus

RRP Price €268.67

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
AC-in jack

Network

Networking standards
IEEE 802.3af
10G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes

Design

Rack mounting
Yes
Form factor
1U
Product colour
Grey
LED indicators
Power
On/off switch
Yes

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
100000 h

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
3 A
Power consumption (max)
250 W
Surge protection
Yes
Power protection features
Overload, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) voltage range
1.2 - 3.6 V
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
250 W

Other features

Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-10 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
200 mm
Depth
440 mm
Height
45 mm
Weight
2.8 kg

Packaging content

Cables included
AC
Quick start guide
Yes

Packaging data

Package type
Box
Package width
280 mm
Package depth
500 mm
Package height
100 mm
Package volume
14000 cm³
Package weight
4.17 kg

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
Harmonized System (HS) code
85176990

Accessories
