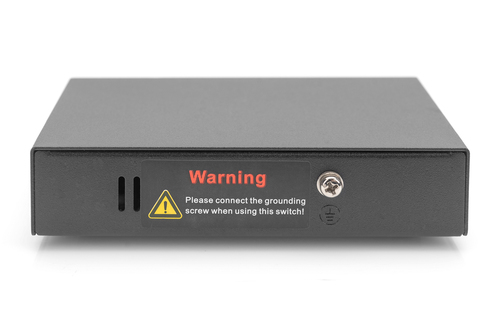

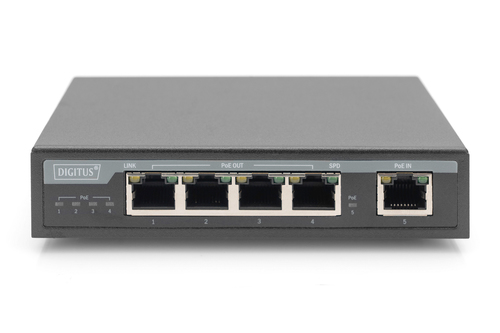

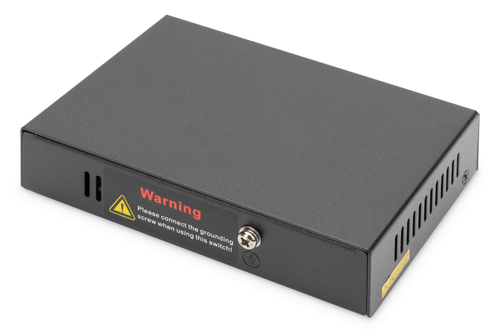

Digitus 4 Port Gigabit 4PPoE Extender, 802.3at, 60 W

Digitus 4 Port Gigabit 4PPoE Extender, 802.3at, 60 W

Name: Digitus 4 Port Gigabit 4PPoE Extender, 802.3at, 60 W
Brand: Digitus
SKU: DN-95128-1
Price: 80.24 EUR
Availability: InStock

Extends the range of your PoE network by up to 100 m

- Supports 2/4 ports with PoE+, PoE
- Transfers data and power to your (PoE) network devices over one network cable
- No additional power supply needed
- Automatic detection of PoE network devices
- Easy installation thanks to Plug and Play
- Full bandwith over the entire PoE distance

The DIGITUS® Gigabit 4PPoE Extender supports the latest network technology to extend your Ethernet signal up to 100 meters. The amplifier is powered via 4PPoE (4-Pair Power over Ethernet or lower), so you don't need an additional power supply and you can use the device even where there are no power lines or sockets to significantly increase the range of the network. By supporting PoE+ and 4PPoE, devices with higher power consumption can also be connected, such as access points, POS systems or video telephones. Rely on advanced 4PPoE technology with the Gigabit 4PPoE Extender from DIGITUS®.

2 IN STOCK

SKU: DN-95128-1

Manufacturer: Digitus Digitus

RRP Price €80.24

Specifications

Network

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at

Duplex system

Full

Cable types supported

Cat5e

Features

Product colour

Black

Easy to install

Yes

Maximum operating distance

100 m

LED indicators

Link, PoE

Pin assignment & polarity

1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)

Ports & interfaces

Ethernet LAN (RJ-45) ports

RJ-45 input ports

RJ-45 output ports

Power

Power over Ethernet (PoE) voltage

57 V

Output power

60 W

Total Power over Ethernet (PoE) budget

45 W

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Packaging content

Number of products included

1 pc(s)

Quick installation guide

Yes

Packaging data

Package width

127 mm

Package depth

50 mm

Package height

167 mm

Package weight

442.778 g

Package volume

1060.45 cm³

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.442778 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
