Digitus Gigabit Ethernet PoE+ Splitter, 802.3at, 24 W

Integrates Power over Ethernet technology to older non PoE network devices

- Gigabit Ethernet Speed
- Fanless design ensures a quiet operation
- Requires no external power supply unit
- Adjustable output 5V/2A , 9V/2A, 12V/2A
- Support 5.5mm and 3.5mm power jack

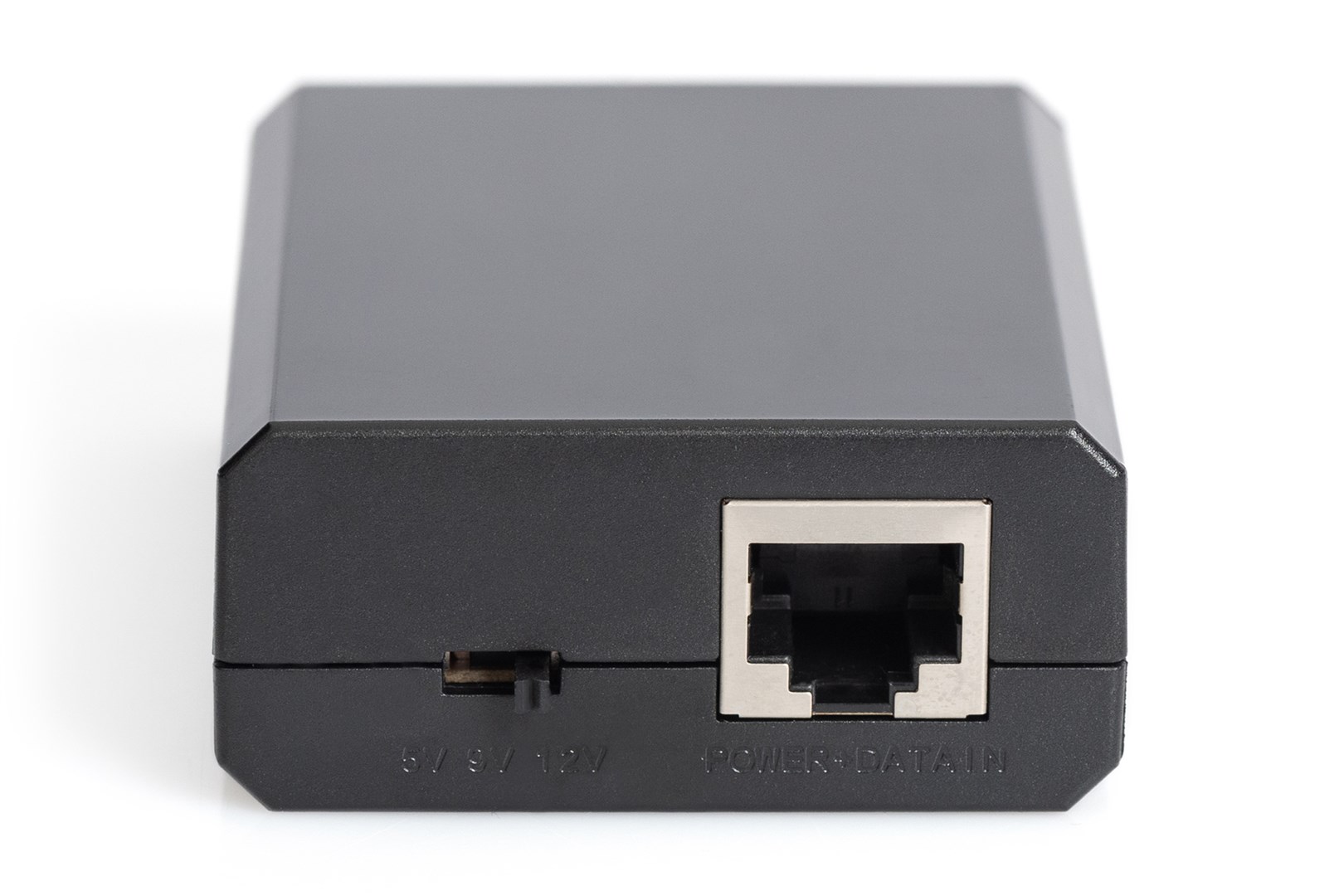

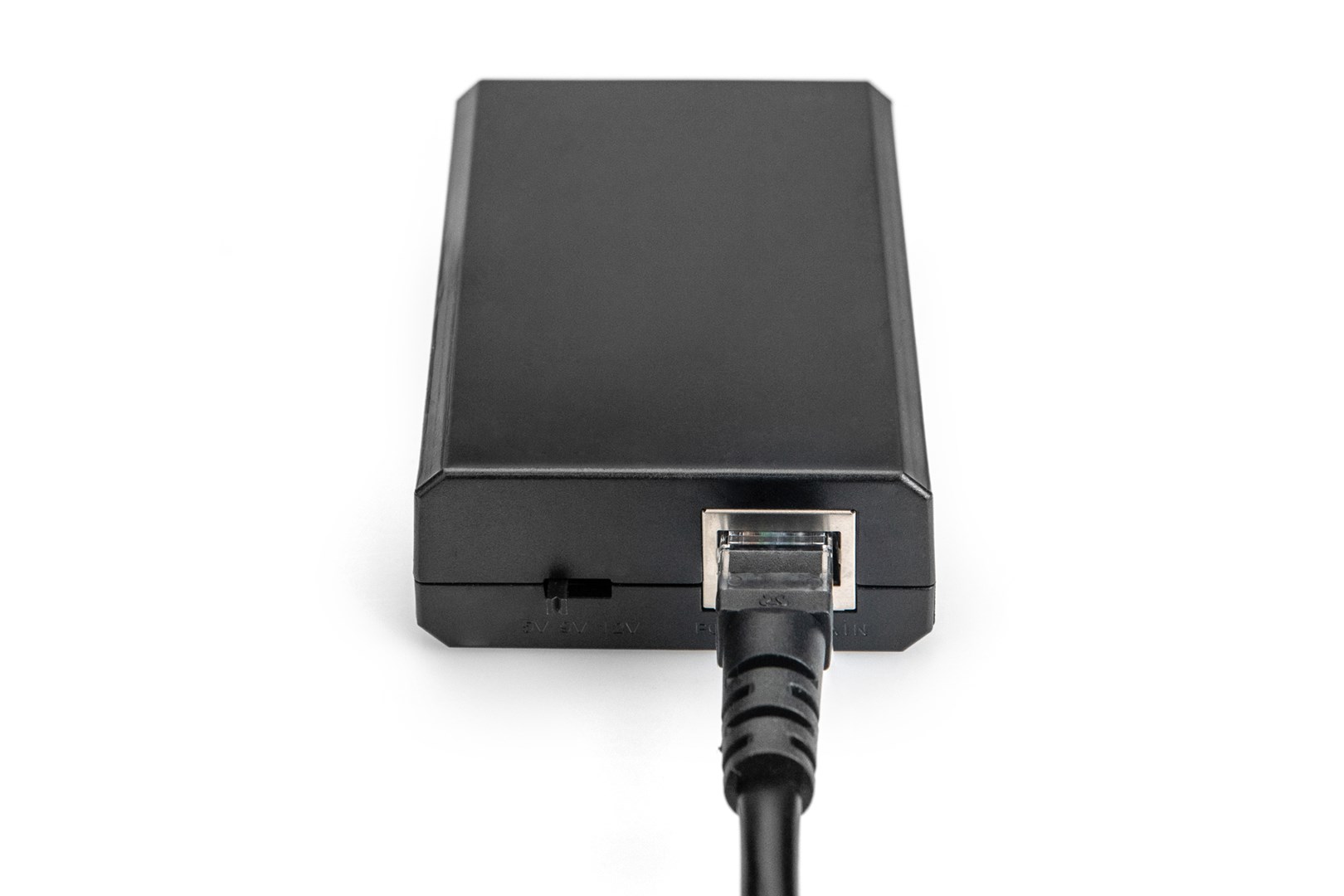

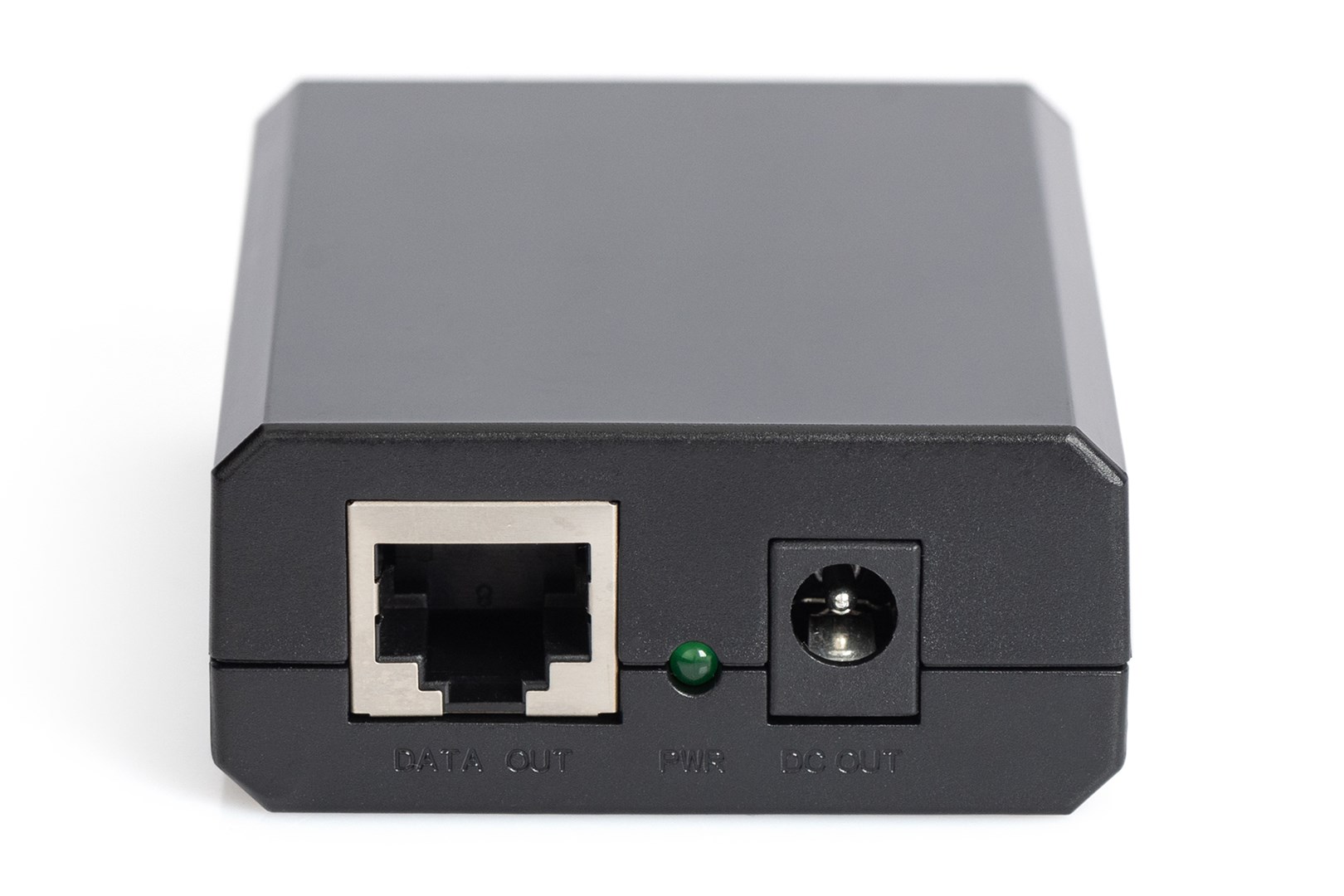

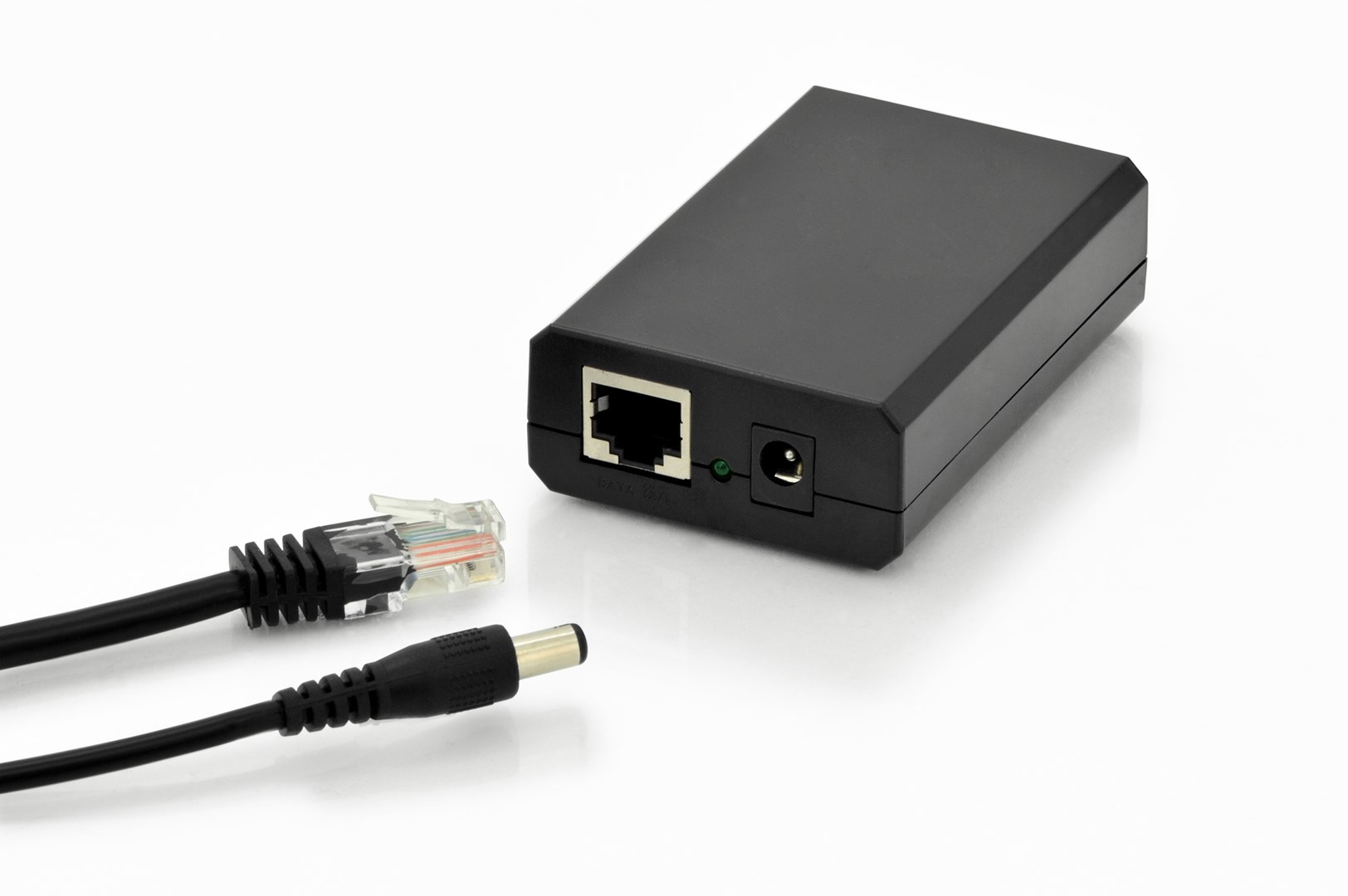

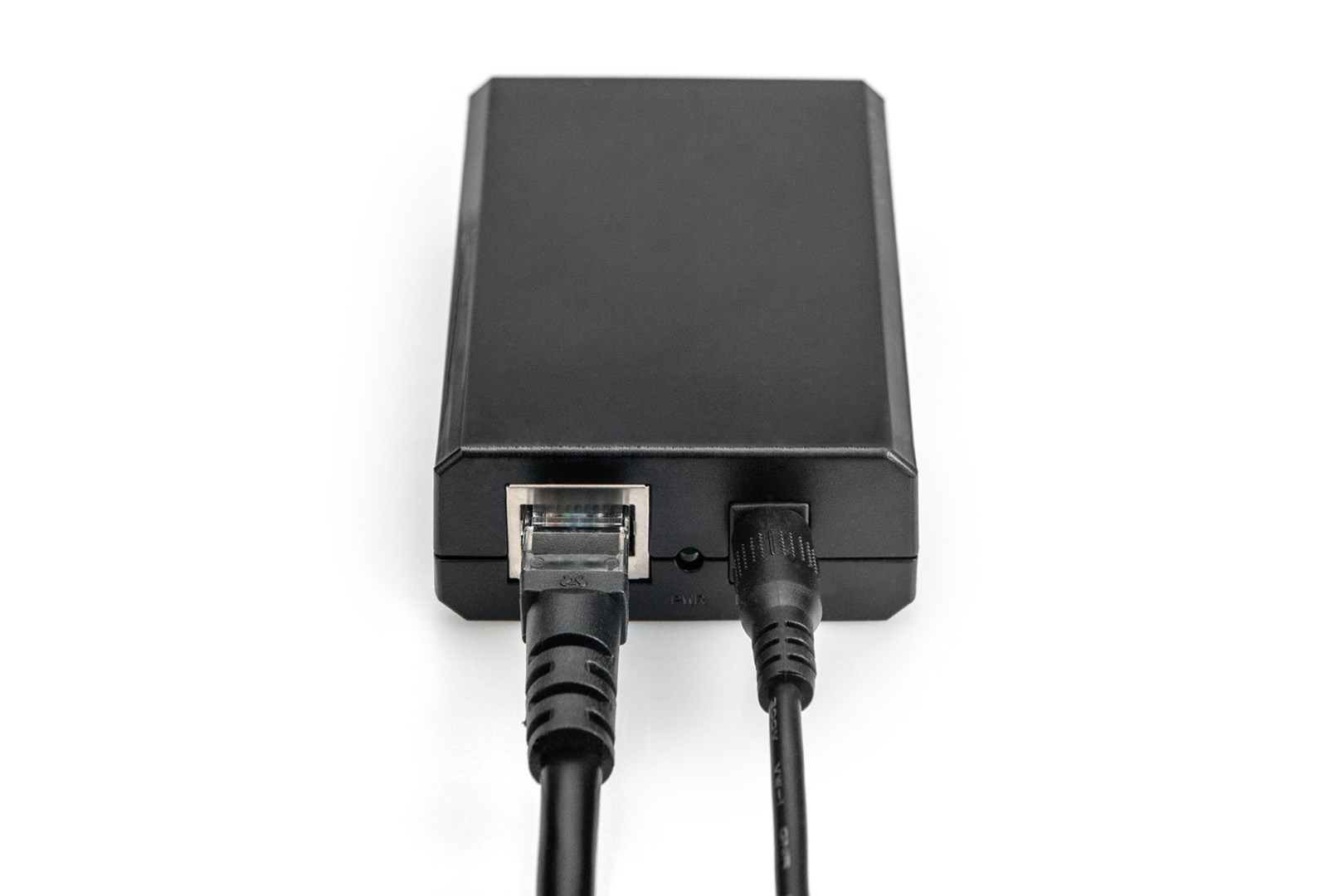

The DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to devices, which are not supporting Power over Ethernet. Just connect the input of the Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network device such as an access point, IP Phone or a Camera to provide Power and Data. The Extender is self powered by PoE, so there is no additional power supply needed. The output voltage can be regulated via a dip switch to 5V , 9V or 12V. So this Splitter expand your network where you wish to place network device where are no power outlets available.

1 IN STOCK

SKU: DN-95205

Manufacturer: Digitus Digitus

RRP Price €30.80

Specifications

Network

Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Yes
Networking standards
IEEE 802.3at

Features

Product colour
Black
LED indicators
PoE
Power protection features
Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes

Power

Power over Ethernet (PoE) voltage
12 V
Output power
24 W
Input voltage
34 - 57 V
Output current
2 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Weight
80 g
Dimensions (WxDxH)
55 x 80 x 23 mm

Packaging content

Number of products included
1 pc(s)
AC adapter included
Yes
Power cord included
Yes
Manual
Yes

Packaging data

Package width
80 mm
Package depth
153 mm
Package height
25 mm
Package weight
130 g
Package volume
306 cm³

Logistics data

UK Trade Tariff code
85176200
Harmonized System (HS) code
85044095
Country of origin
China
