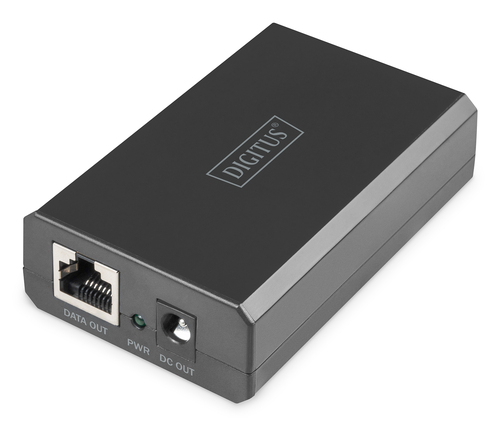

Digitus Gigabit Ethernet PoE splitter, 802.3bt, 51 W

Digitus Gigabit Ethernet PoE splitter, 802.3bt, 51 W

Name: Digitus Gigabit Ethernet PoE splitter, 802.3bt, 51 W
Brand: Digitus
SKU: DN-95211
Price: 53.26 EUR
Availability: OutOfStock

The PoE splitter delivers data and power of up to 51W to devices via a single Ethernet cable.

- Ethernet speed: 10/100/1000Mbps Gigabit half/full duplex
- PoE standard: IEEE802.3at/bt
- Input: Power + data input (RJ45)

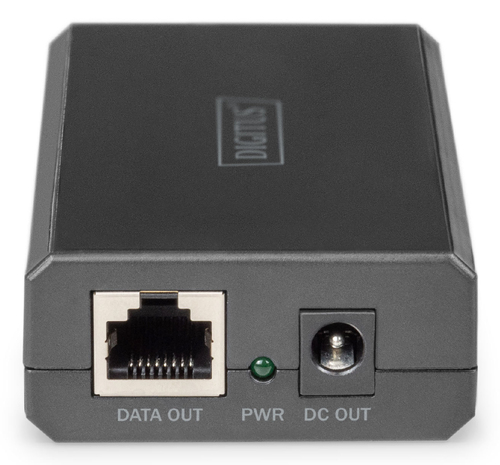

- Output: Data output (RJ45), DC output
- Plug-and-play installation - no configuration required
- Selectable output voltages: 12V/4.25A, 24V/2.125A,
- Splits the 48VDC power into different DC outputs via RJ45 Ethernet cable
- Status LED on the device (PoE ready/PoE in operation)
- Protection through insulation of the circuit
- Maximum output power up to 51W

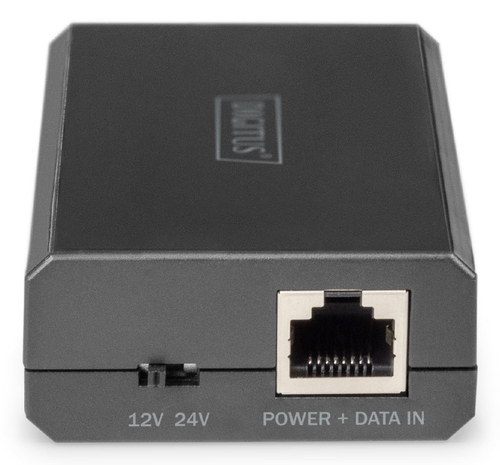

The PoE splitter supplies data and power via a single Ethernet cable to devices that do not support Power over Ethernet. Simply connect the input of the splitter to a PoE switch or PoE injector and the output side to a non-PoE network device such as an access point, IP phone or camera to provide power and data. The extender is self-powered via PoE, so no additional power supply is required. The output voltage can be regulated to 12V or 24V via a dip switch. This splitter extends your network wherever you want to place network devices for which no sockets are available. are available.

ON ORDER

SKU: DN-95211

Manufacturer: Digitus Digitus

RRP Price €53.26

Specifications

Network

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Power over Ethernet (PoE)

Yes

Networking standards

IEEE 802.3bt

Duplex system

Full, Half

Features

Product colour

Black

Plug and Play

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

RJ-45 input ports

RJ-45 output ports

Power

Power over Ethernet (PoE) voltage

48 V

Output power

51 W

Input voltage

36 - 57 V

Output current

4.25 A

DC output voltage

24 V

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

55 mm

Depth

80 mm

Height

23 mm

Weight

80 g

Packaging content

Number of products included

1 pc(s)

Power cord included

Yes

Quick installation guide

Yes

Packaging content

1x Gigabit PoE Splitter 1x QIG 1x RJ45 Ethernet cable 1x DC power cable

Packaging data

Package width

105 mm

Package depth

25 mm

Package height

150 mm

Package weight

160 g

Logistics data

Customs product code (TARIC)

8544421000

Master (outer) case width

278 mm

Master (outer) case length

317 mm

Master (outer) case height

545 mm

Master (outer) case gross weight

15.5 kg

Master (outer) case volume

48028.67 cm³

Products per master (outer) case

100 pc(s)

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.08 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
