Tripp Lite SRW18US13 SmartRack 18U Low-Profile Patch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back

Name: Tripp Lite SRW18US13 SmartRack 18U Low-Profile Patch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back
Brand: Eaton
SKU: SRW18US13
Price: 699.53 EUR
Availability: OutOfStock

The SRW18US13 SmartRack® 18U Low-Profile Patch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, back offices, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms)

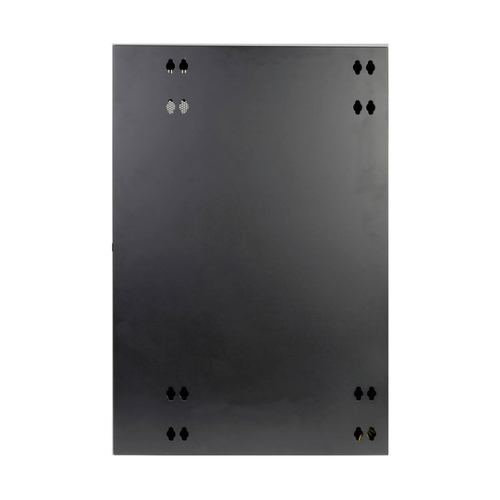

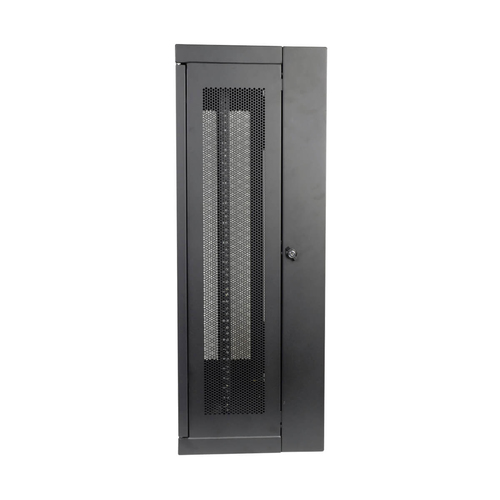

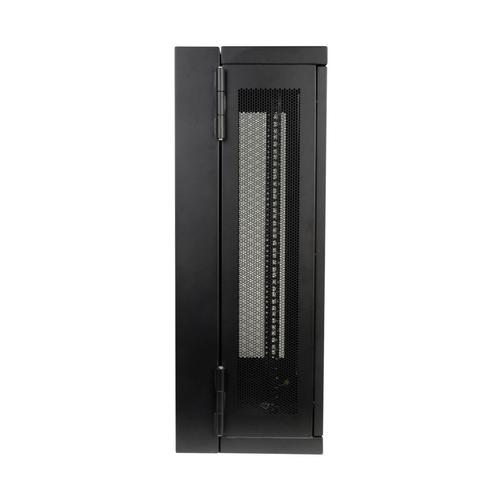

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

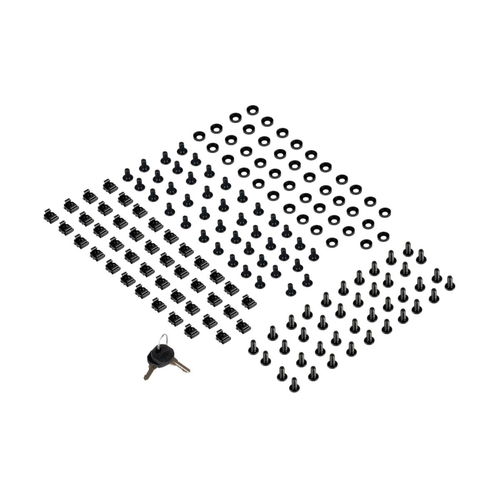

The SRW18US13 comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 12.75 inches deep, such as patch panels and shallow network switches.

ON ORDER

SKU: SRW18US13

Manufacturer: Eaton Eaton

RRP Price €699.53

Specifications

Features

Rack capacity

18U

Type

Wall mounted rack

Maximum weight capacity

113.39 kg

Product colour

Black

Certification

EIA-310-E, RoHS

Weight & dimensions

Width

599.9 mm

Depth

330.2 mm

Height

904.2 mm

Weight

35.8 kg

Packaging data

Wall mounting kit

Yes

Manual

Yes

Package width

662.9 mm

Package depth

1034 mm

Package height

395 mm

Package weight

35.8 kg

Logistics data

Country of origin

China

Harmonized System (HS) code

8517.79.0000

Master (outer) case width

662.9 mm

Master (outer) case length

1034 mm

Master (outer) case height

395 mm

Master (outer) case gross weight

35.8 kg

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

35.83 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
