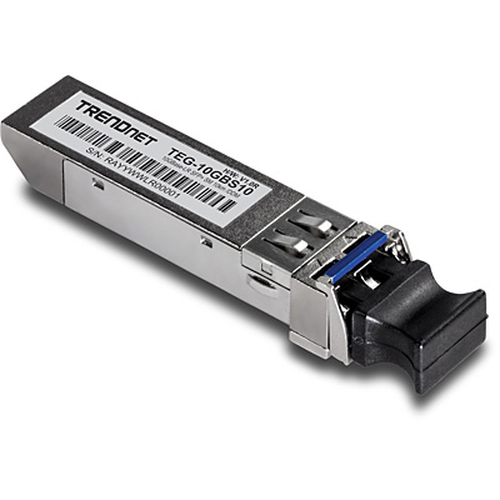

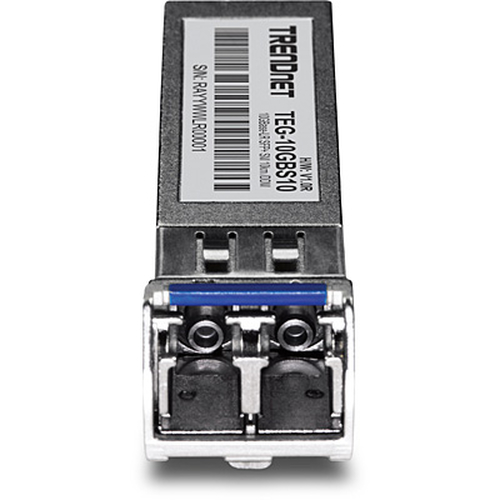

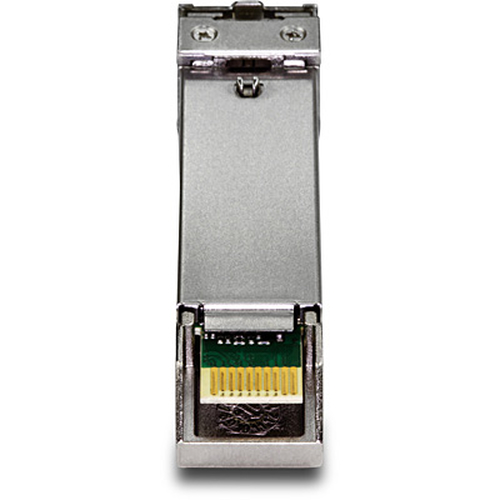

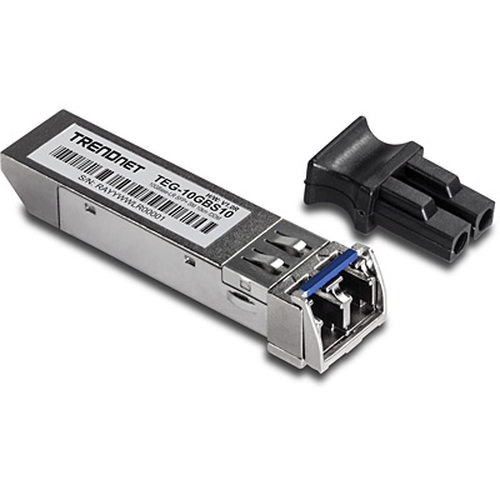

Trendnet TEG-10GBS10 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm

TRENDnet’s hot-pluggable TEG-10GBS10, 10GBASE-LR SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 10 km (6.2 miles), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.

Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot

Fiber Wavelength
Compatible with Single Mode 1310 nm transmissions

Fiber Distance
Supports networking for distances up to 10 km (6.2 miles)

Fiber Port
LC-type duplex connector

DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage

Power Supply
Single 3.3 volt power supply

Operating Temperature
Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)

Standards
Compliant with SFF-8431, SFF-8432, SFF-8472, 10G FC Rev 4.0, FC-PI-4 Rev 7.0, and IEEE802.3ae 10GBASE-LR/LW

ON ORDER

SKU: TEG-10GBS10

Manufacturer: Trendnet Trendnet

RRP Price €67.80

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SR
Maximum transfer distance
10000 m
Wavelength
1310 nm
Networking standards
IEEE 802.3ae
Fiber ports quantity
1

Features

Hot-Plug support
Yes

Power

Power consumption (typical)
0.522 W

Certificates

Certification
CE, FCC

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
14.8 mm
Depth
56.5 mm
Height
11.8 mm
Weight
22 g

Logistics data

Harmonized System (HS) code
85369010
