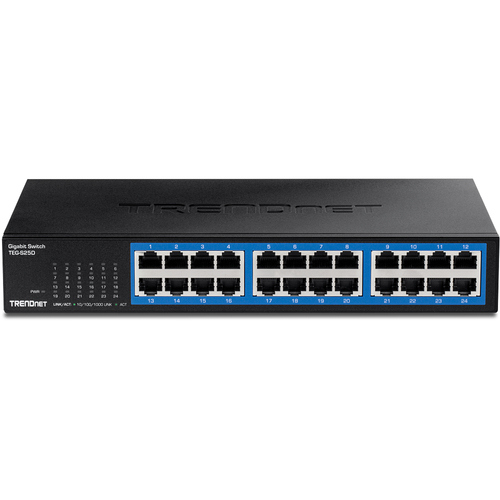

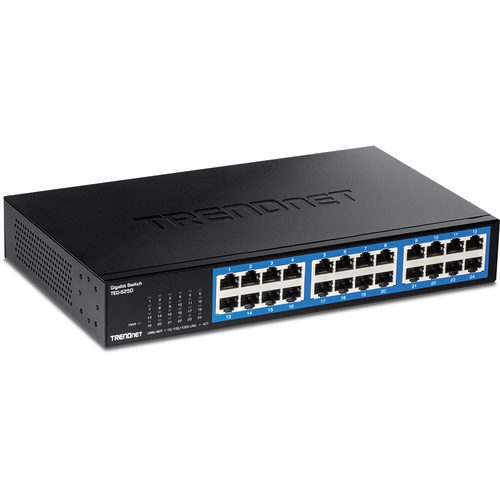

Trendnet TEG-S25D network switch Gigabit Ethernet (10/100/1000)

The 24-Port Gigabit Desktop Switch, model TEG-S25D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.

Gigabit Speeds
Gigabit ports provide high-speed network connections to 24 devices, and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Housing Design
With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations (brackets included).

Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.

ON ORDER

SKU: TEG-S25D

Manufacturer: Trendnet Trendnet

RRP Price €79.11

Specifications

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes

Data transmission

Switching capacity
48 Gbit/s
Forwarding rate
35.71 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Packet buffer memory
0.5 MB

Design

Rack mounting
Yes
LED indicators
Yes

Performance

Fanless
Yes
Mean time between failures (MTBF)
364460 h

Power

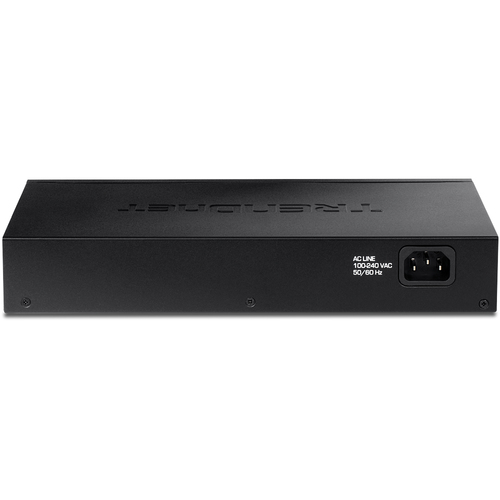

Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1 A
Power consumption (max)
14.24 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Weight & dimensions

Width
162 mm
Depth
267 mm
Height
42 mm
Weight
1.3 kg

Packaging content

Cables included
AC
User guide
Yes

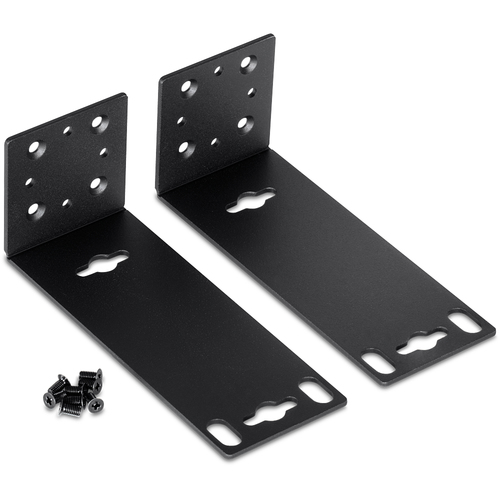

Rack mount kit
Yes

Certificates

Certification
FCC CE ETL

Accessories

License
